Description

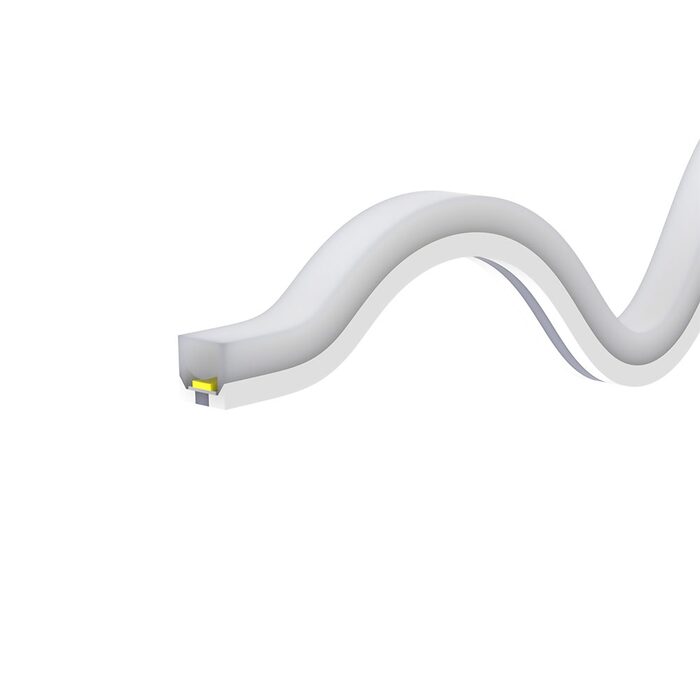

The AQS-401 Neon Flex product is manufactured in a continuous extrusion process and then manually terminated to length with IP65 overmolded cable entry points here in our Sydney factory for a quicker turn-around time.
Specifications
- Input Voltage: 24V DC power supply required (not included)
- Wattage: 10W Per Meter
- Colour Temperature: 2000K / 2700K / 3000K / 4000K / 5000K
- Lumen Output (per Meter): 320lm / 730lm / 780lm / 820lm / 830lm
- IP Rating: IP65
- Working Mode: Constant Voltage (PWM) / DMX
- Max Length (Single Power Feed): 7m
- Max Length (Double Power Feed): 14m
- Cut Interval: 35.7mm
- Bend Direction: Vertically
- Minimum Bend Diameter: 100mm
- LED Type: 2835
- LED Qty / M: 168
- Materials: Silicone
- Emission Angle: 180°
- Operating Temperature: -20° to +40°C
- Installation Temperature: 5° to +35°C
- Sold Per Meter

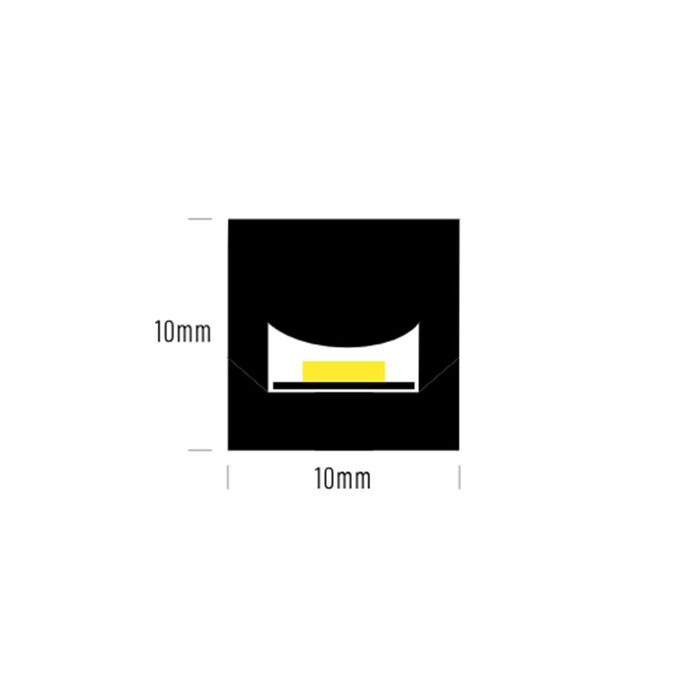

Dimensions
- Height: 10mm
- Width: 10mm
