Usually leave our warehouse within 7-10 business days
Description

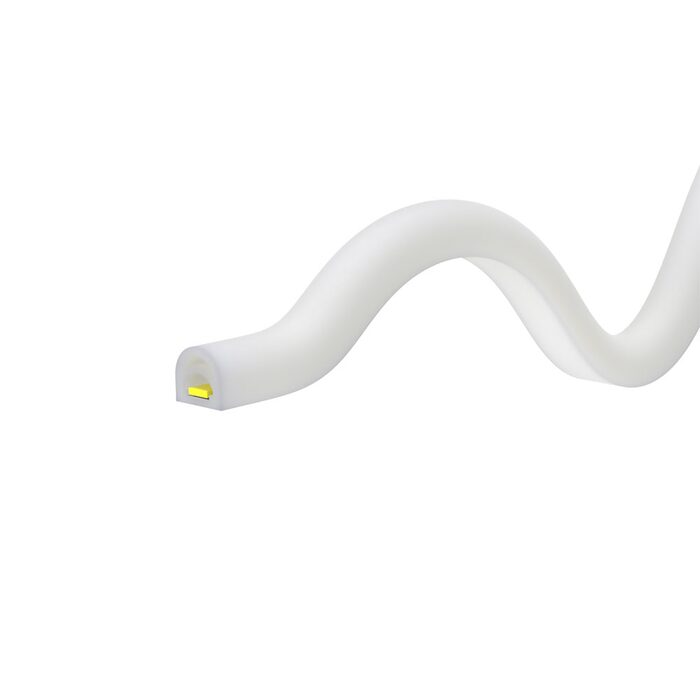

AQS-400 is a general purpose IP65 rated Neon Flex LED Strip. Smooth, dot-free linear lighting for soft washing of under-bench alcoves, grazing and way-finding applications.
Can be used with or without additional aluminium profile. Mounting clips are included and can also be fixed with silicone adhesive.
Specifications
- Input Voltage: 24V DC power supply required (not included)
- Wattage: 10W Per Meter
- Colour Temperature: 2000K / 2700K / 3000K / 4000K / 5000K
- Lumen Output (per Meter): 400lm / 500lm / 530lm / 540lm / 545lm
- IP Rating: IP65
- Working Mode: Constant Voltage (PWM) / DMX / DALI
- Max Length (Single Power Feed): 6m
- Max Length (Double Power Feed): 12m
- Cut Interval: 31mm

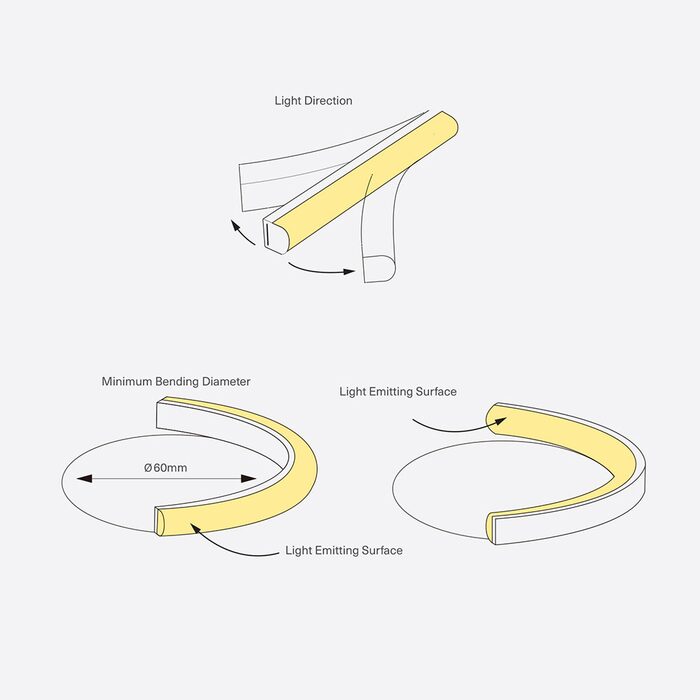

- Bend Direction: Vertically
- Minimum Bend Diameter: 60mm
- LED Type: 2216
- LED Qty / M: 192pcs
- Materials: Silicone
- Emission Angle: 180°
- Operating Temperature: -20° to +40°C
- Installation Temperature: 5° to +35°C
- Dimming Options: PSU Control (1-10V / PWM / Phase / Remote) / 24V Control (PWM)
- Sold Per Meter

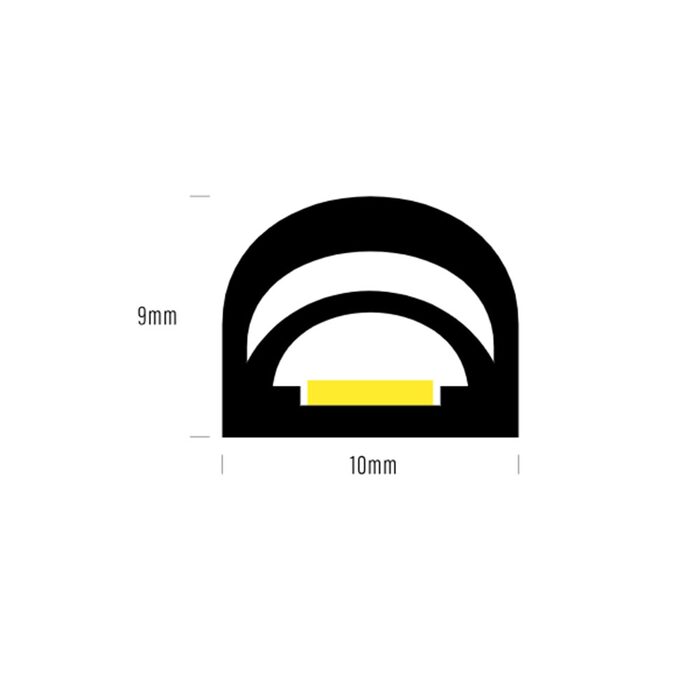

Dimensions
- Height: 9mm
- Width: 10mm
Click to view technical specification:
Can be used with or without additional aluminium profile. Mounting clips are included and can also be fixed with silicone adhesive.
Specifications
- Input Voltage: 24V DC power supply required (not included)
- Wattage: 10W Per Meter
- Colour Temperature: 2000K / 2700K / 3000K / 4000K / 5000K
- Lumen Output (per Meter): 400lm / 500lm / 530lm / 540lm / 545lm
- IP Rating: IP65
- Working Mode: Constant Voltage (PWM) / DMX / DALI
- Max Length (Single Power Feed): 6m
- Max Length (Double Power Feed): 12m
- Cut Interval: 31mm
- Bend Direction: Vertically
- Minimum Bend Diameter: 60mm
- LED Type: 2216
- LED Qty / M: 192pcs
- Materials: Silicone
- Emission Angle: 180°
- Operating Temperature: -20° to +40°C
- Installation Temperature: 5° to +35°C
- Dimming Options: PSU Control (1-10V / PWM / Phase / Remote) / 24V Control (PWM)
- Sold Per Meter
Dimensions
- Height: 9mm
- Width: 10mm
Click to view technical specification:
