Description

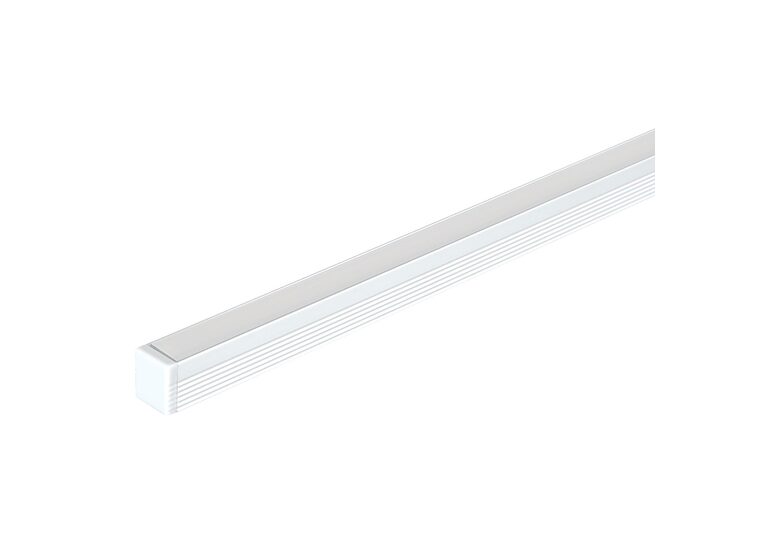

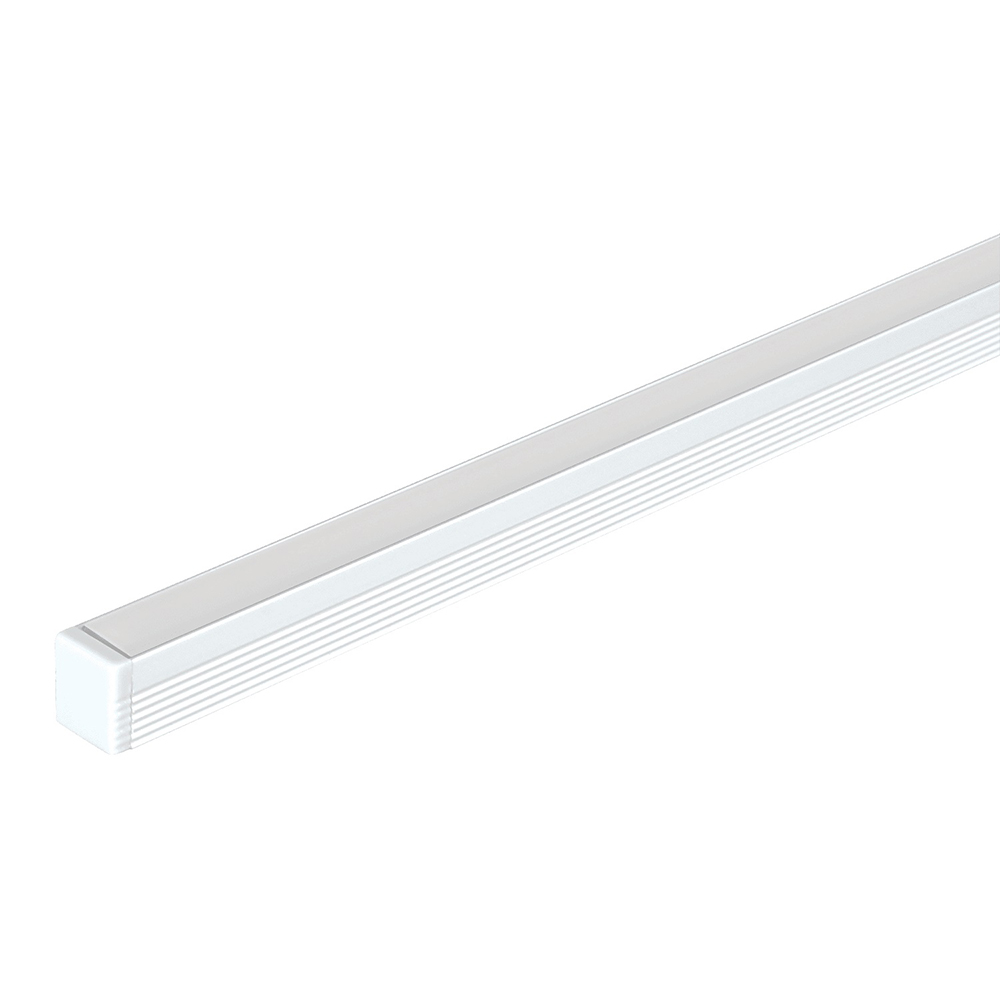

Introducing the LP-0809-SM mounting profile system.
The LP-0809-SM is specifically designed for the Domus range of PLEX-MICRO LED strip lighting.
This aluminium surface mounted profile system incorporates extruded profile complete with a flat opal PMMA diffuser.
Available in Black,White and Aluminium colour options.
Can be cut to any length up to 3 metres. The key features of the LP-0809-SM is the ability to not only conceal the LED strip lighting but also keep the strip lighting linear.
Also, the LP-0809-SM keeps LEDs free from foreign objects and vapours which may damage the LEDs.
A simple and shallow yet very contemporary LED recessed mounted profile ideally suited to under bench mounting, wardrobes or laundry applications where minimal and micro width mounting requirements are needed.
Specifications
- Installation: Surface or Wall Mounted
- Material: Extruded Aluminium 6063
- Finish: Natural clear anodised, Black or White
- Diffuser: Flat (PMMA) Opal Colour
- Length: 3000mm Continuous*

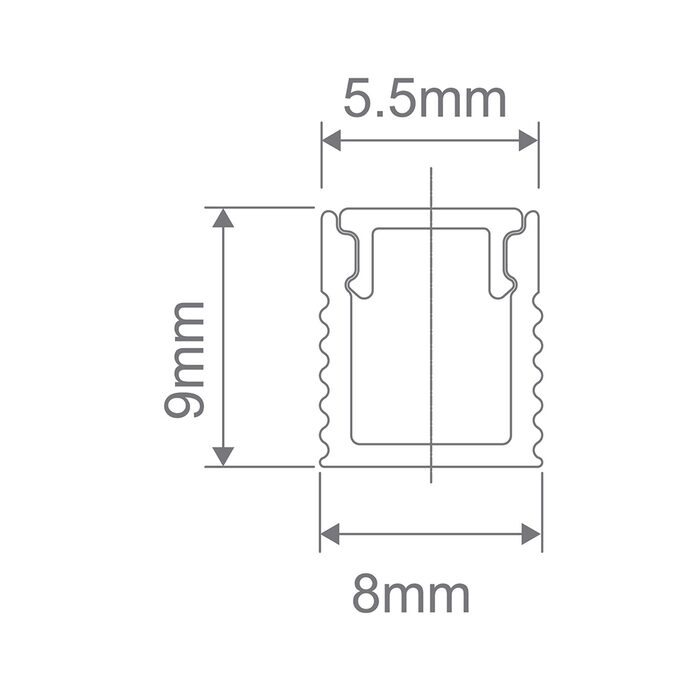

- Size: Profile (W) 8mm, (H) 9mm
- Special: Custom powder coated colour upon request**
- Driver Installation: Remote Driver Required
- Compatible Strip: PLEX-MICRO-8W
Click to view technical specification:
The LP-0809-SM is specifically designed for the Domus range of PLEX-MICRO LED strip lighting.
This aluminium surface mounted profile system incorporates extruded profile complete with a flat opal PMMA diffuser.
Available in Black,White and Aluminium colour options.
Can be cut to any length up to 3 metres. The key features of the LP-0809-SM is the ability to not only conceal the LED strip lighting but also keep the strip lighting linear.
Also, the LP-0809-SM keeps LEDs free from foreign objects and vapours which may damage the LEDs.
A simple and shallow yet very contemporary LED recessed mounted profile ideally suited to under bench mounting, wardrobes or laundry applications where minimal and micro width mounting requirements are needed.
Specifications
- Installation: Surface or Wall Mounted
- Material: Extruded Aluminium 6063
- Finish: Natural clear anodised, Black or White
- Diffuser: Flat (PMMA) Opal Colour
- Length: 3000mm Continuous*
- Size: Profile (W) 8mm, (H) 9mm
- Special: Custom powder coated colour upon request**
- Driver Installation: Remote Driver Required
- Compatible Strip: PLEX-MICRO-8W
Click to view technical specification:
