Description
The HV9912 Medium IP67 Weatherproof Connector is designed to provide a secure and protected electrical connection for outdoor and exposed lighting installations.
Its IP67 rating helps protect connections against dust and water ingress, while the medium-size housing offers a practical solution for compatible exterior lighting applications.
Specifications
- Material: Thermoplastic Shell - Polycarbonate
- IP Rating: IP67
- Sealant: Pref Filled non Hardening Silicone Gel
- Warranty: 3 Years Replacement

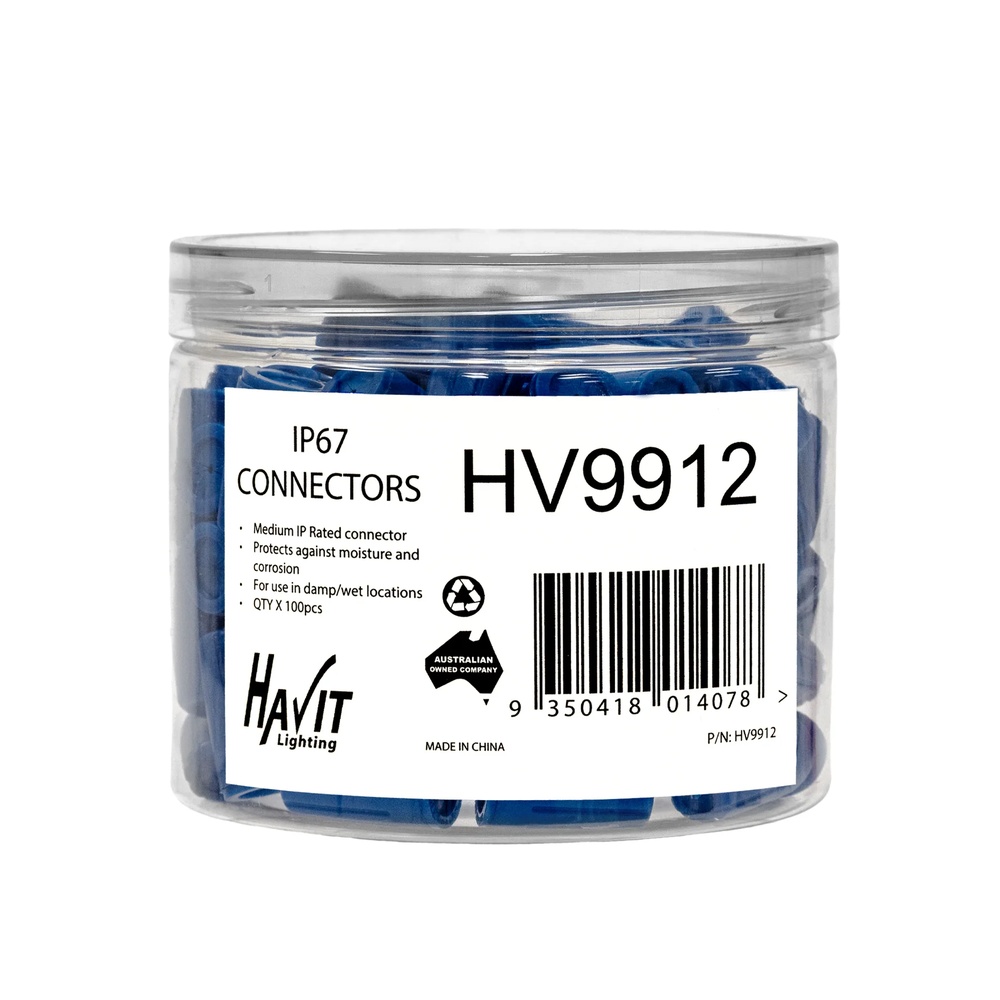

- 100x connectors in 1 jar
- Eliminates need for heat shrink, tape, or sealants.
- Operation temperature for silica inside is -40° to 100°
- Can be used with 12v DC or 24v DC
- Suitable cable: 22-10AWG / 0.3247-5.26 mm²
- Fixed end cap secures sealant and protects connections
- Swept-wing and hex top help easily tighten and remove.

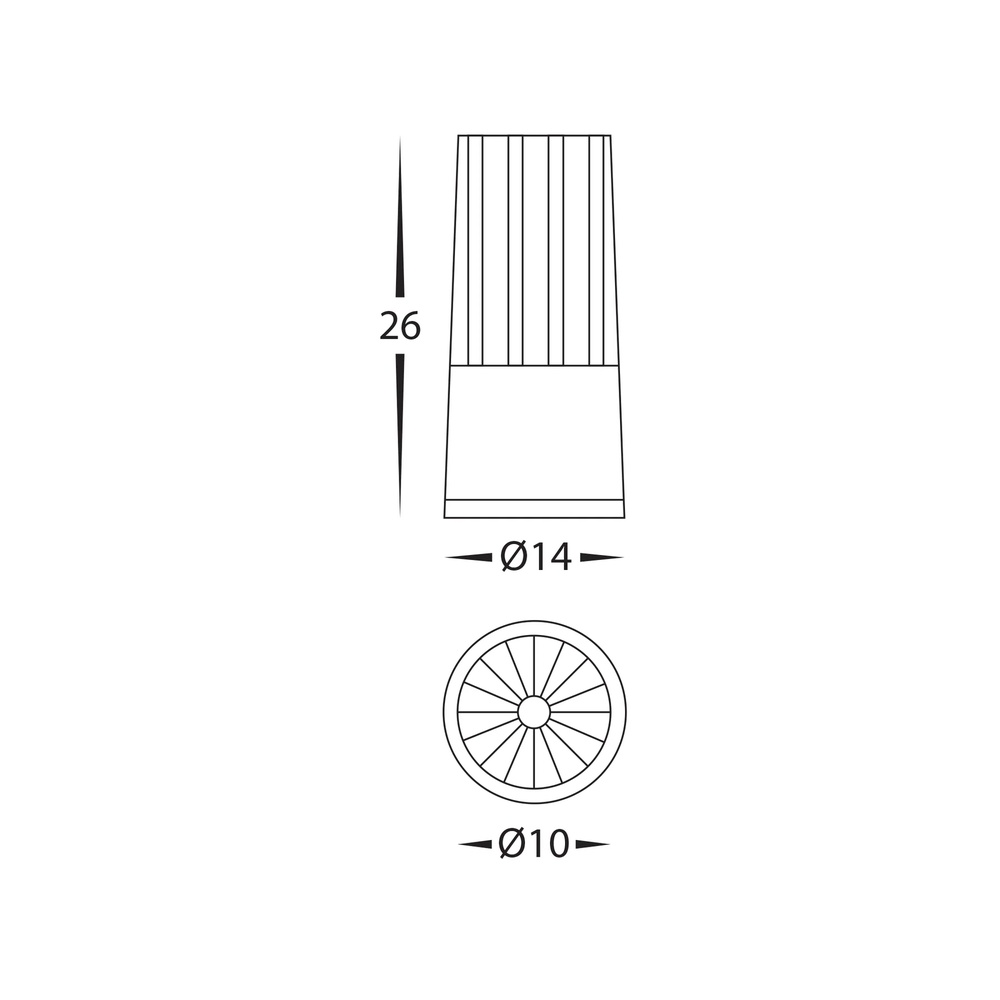

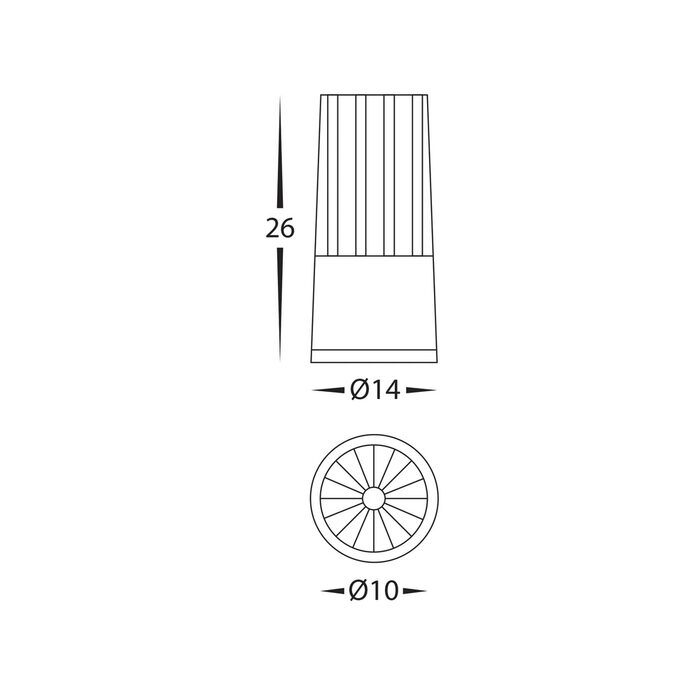

Dimensions
- Height: 26mm
- Width: 14mm
Click to view technical specifications:
