Description
The energy efficient DC motor combined with streamlined ABS blades provide superior airflow.
Applications
- Bedrooms, lounge and family rooms
- Indoors or enclosed alfresco areas not exposed to the weather
- Energy efficient DC motor.
- Corrosion free ABS blades, body and canopy.
- 6-speed remote with timer, reverse and light controls for optional light kit.
- Reversible All-Seasons technology for use all year round.
- 85% pre-assembled out of the box for fast installation.
- Optional 24W dimmable & colour temperature adjustable light kit (sold seperately).
- Uses our Quick Connect Plug System to reduce installation time.
Specifications
- Size 52 inch (1320mm)
- Motor Type DC (Direct Current)
- Operating Voltage 220-240V / 50Hz
- Motor Wattage 30W
- Construction ABS body and canopy
- Blade Material Moulded ABS (x3)
- Ceiling install Hangsure
- Blade Pitch up to 20 degrees
- Ceiling Rake 10 degree max
- Light Pre-wired for light kit addition
- Control Remote 6-speed with reverse and timer functions
- Other models available 22199: 58-inch without light
Air Movement
- SPEED 1 2 3 4 5 6
- RPM 93 108 125 134 147 162
- Power 6W 10W 14W 19W 24W 30W
- Airflow 5200m3/h 6200m3/h 7500m3/h 8400m3/h 9600m3/h 11500m3/h

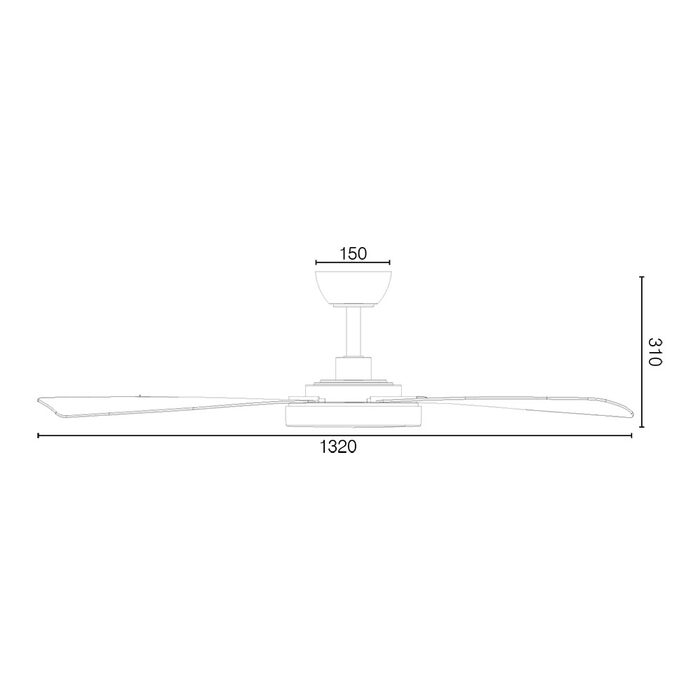

Dimensions
- Height: 310mm
- Width: 1320mm
- Canopy Diameter: 150mm
Warranty
- 3 year in-home plus 3 year replacement (6-Year)
- *Limited warranty for wall controller, remote controller and light
- Refer to warranty card inside the box for more details
Accessories Extension Rod 900mm x Ø26mm (Sold Seperately)
- 22231/05 matt white
- 22231/06 matt black
Accessories 24W LED Light Kit CCT and Dimmable: (Sold Seperately)
- 22201/05 matt white
- 22201/06 matt black
