Description

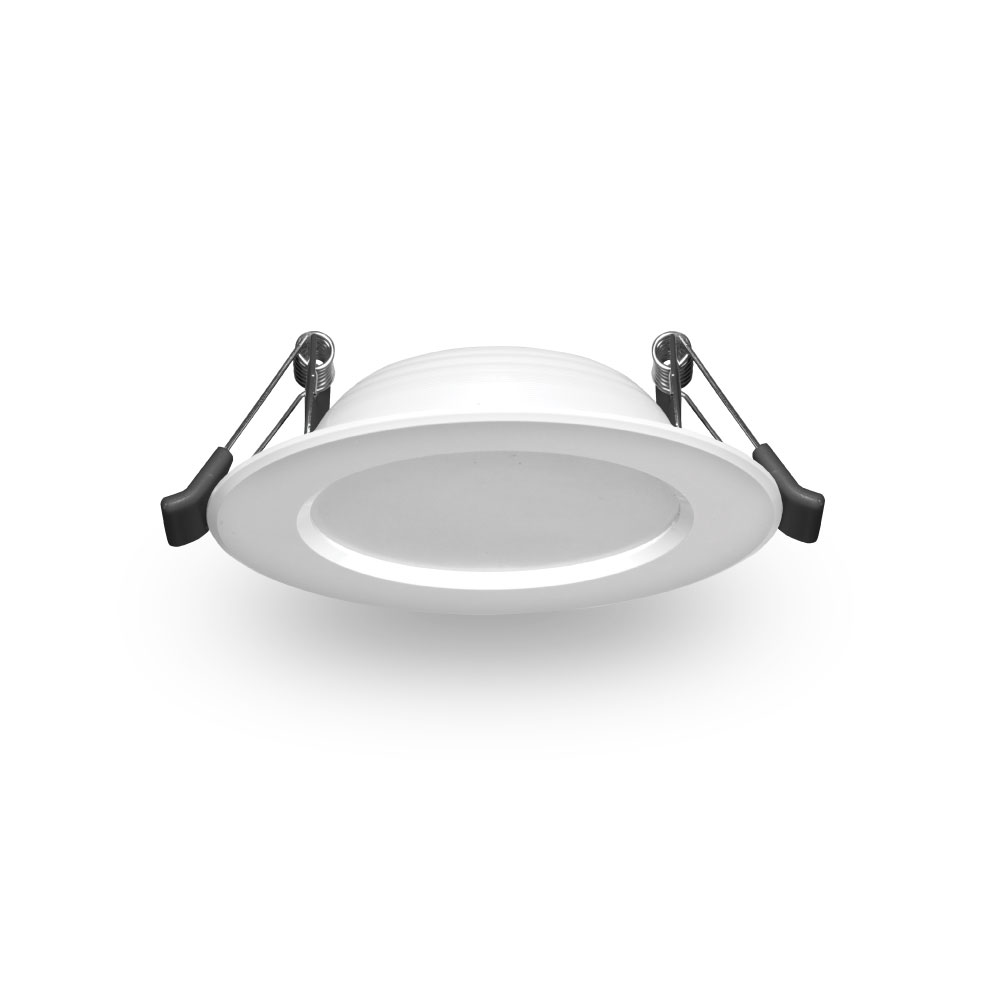

The AT9036/WH/TRI 7W LED Downlight is a compact and versatile recessed lighting solution designed for ceilings with limited clearance. Featuring a low-profile aluminium body, semi-flush metal fascia and selectable Tri-CCT colour temperatures, it provides flexible illumination for a wide range of residential and commercial applications.
Supplied with a dimmable phase-cut LED driver and re-wireable flex and plug, this downlight is designed for convenient installation and reliable everyday performance.
Features
– Low-profile design for ceilings with limited clearance
– Semi-flush metal fascia
– Tri-CCT selectable colour temperature
– 120° beam angle
– Dimmable phase-cut driver included
– Fixed recessed fitting
– Powder-coated white finish
– Aluminium construction
– Re-wireable flex and 2-pin plug
– Suitable for indoor use
Specifications
– Order Code: 12420
– Item Code: AT9036/WH/TRI
– Maximum Wattage: 7W
– Input Voltage: 230Vac
– Input Frequency: 50Hz
– Driver Type: Dimmable Phase Cut
– Driver Included: Yes
– Integrated Driver: No
– Dimmable: Yes
– Driver Current: 160mA
– Switch Type: Inline
– Adjustability: Fixed
– Fitting Colour: White
– Product Finish: Powder Coated
– Body Material: Aluminium
– Installation Type: Recessed
– Wiring Type: Re-wireable Flex & Plug (2 Pin)
– Working Temperature Range: -20°C to 40°C
Light Output
– 3000K Warm White: 710lm
– 4000K Cool White: 750lm
– 5700K Daylight: 720lm
Dimensions
– Diameter: 86mm
– Height: 35mm
– Cutout: 70mm
Click to view technical specification:
