Description
The Havit HV9636 is a 5-channel LED strip repeater designed to expand LED controller capacity, allowing additional LED strip loads to be managed by a single controller.
Suitable for 12V DC or 24V DC systems, it supports up to 360W (12V) or 720W (24V) loads and is ideal for, but not limited to, RGB+W or single-color strip synchronization.
Specifications
- Input Voltage: 12V DC or 24V DC
- LED Strip Type: All LED Strip
- No. of Channels: 5
- IP Rating: IP20
- Dimmable: Yes (0.1-100%)
- Input Signal: PWM
- Fixture Colour: Black
- Material: Aluminium
- Warranty: 3 Years Replacement*

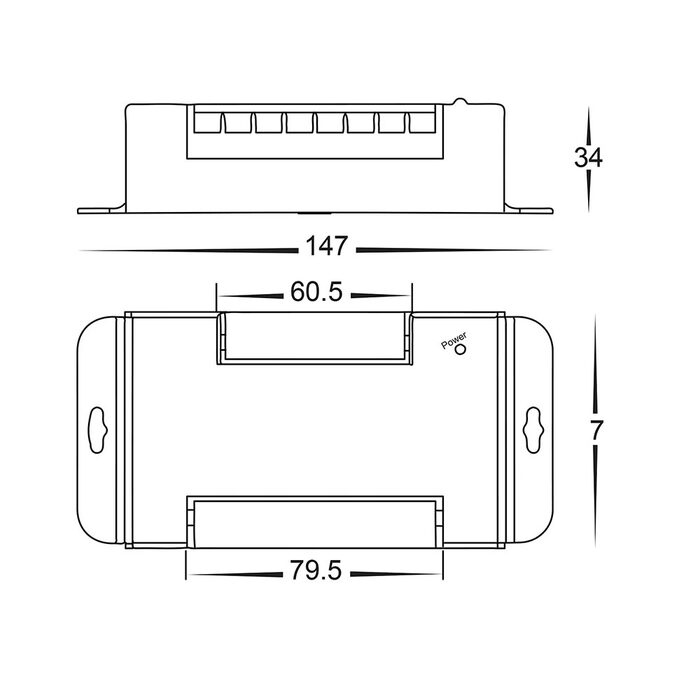

Dimensions
- Length: 147mm
- Width: 7mm
- Height: 34mm
Click to view technical specifications:
