Description

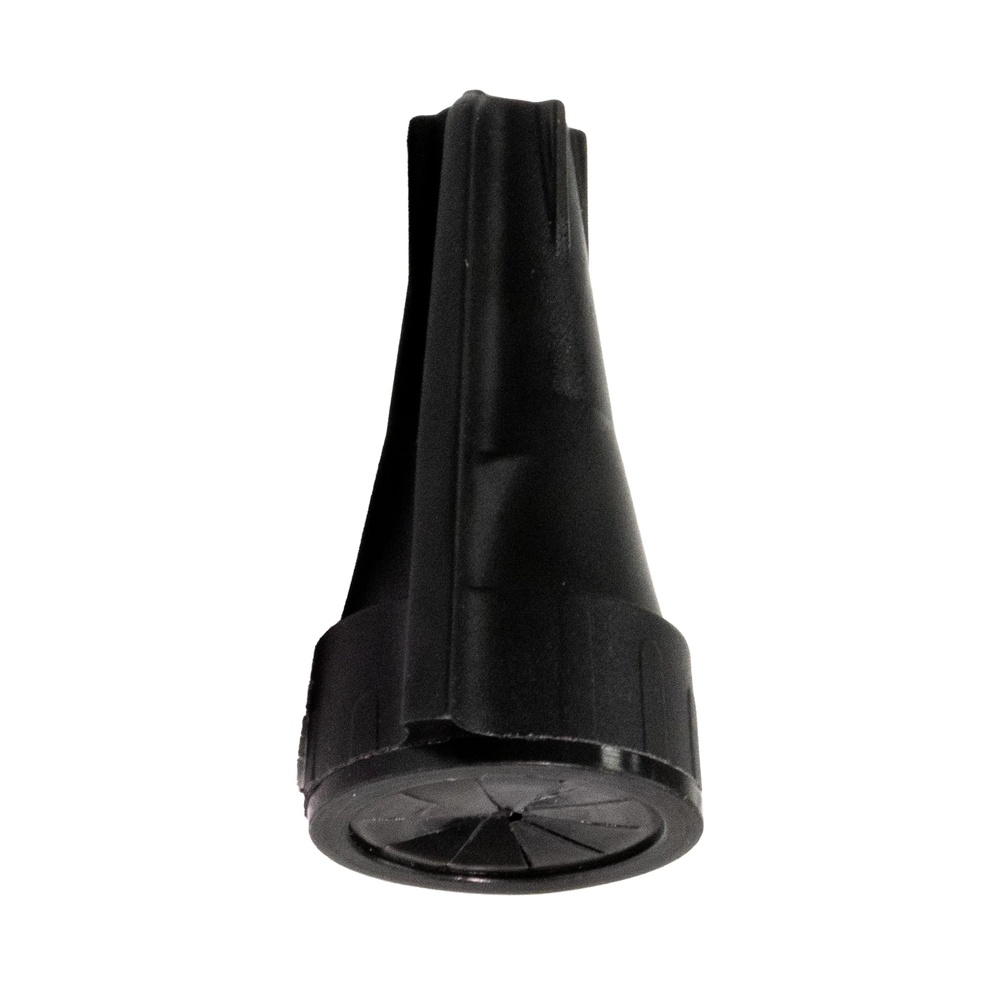

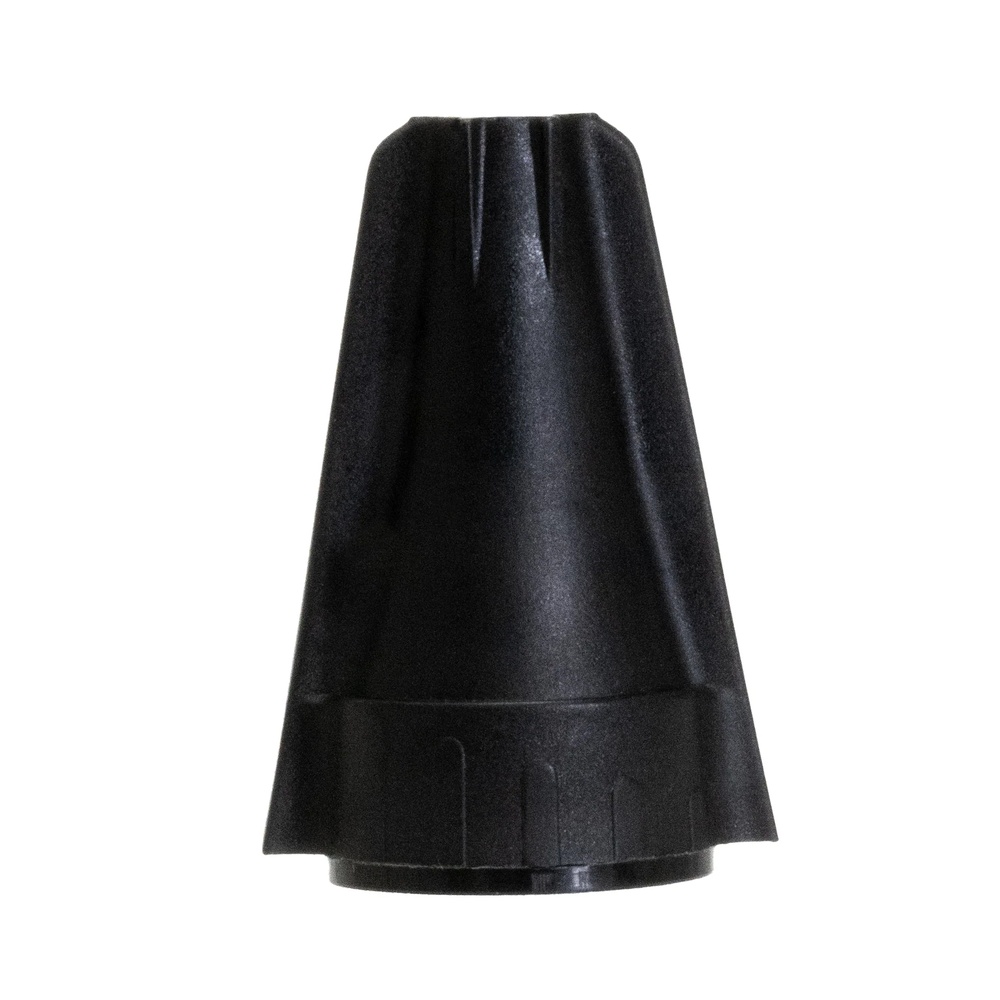

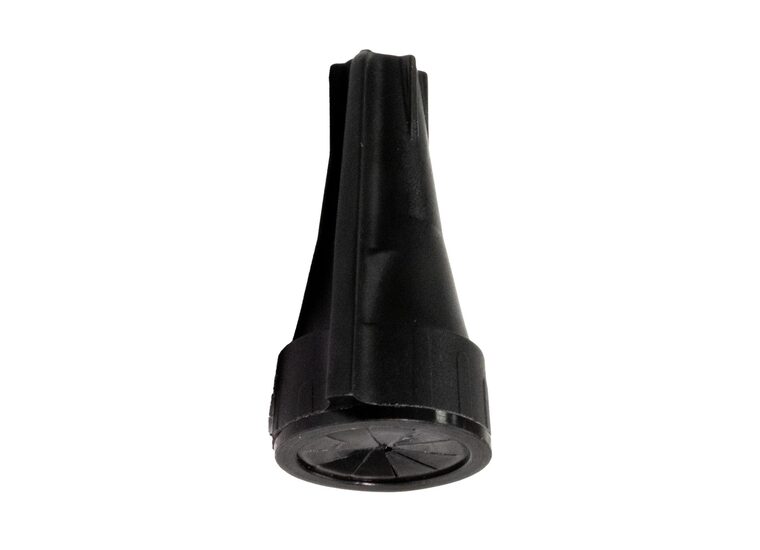

The HV9913 Large IP67 Weatherproof Connector is designed to provide a secure and protected electrical connection for outdoor and exposed lighting installations.
Its IP67 rating helps protect connections against dust and water ingress, while the larger housing provides additional space for compatible wiring connections.
Specifications
- Material: Thermoplastic Shell - Polycarbonate
- IP Rating: IP67
- Sealant: Pref Filled non Hardening Silicone Gel
- Warranty: 3 Years Replacement
- 100x connectors in 1 jar
- Eliminates need for heat shrink, tape, or sealants.
- Operation temperature for silica inside is -40° to 100°
- Can be used with 12v DC or 24v DC
- Suitable cable: 22-10AWG / 0.3247-5.26 mm²

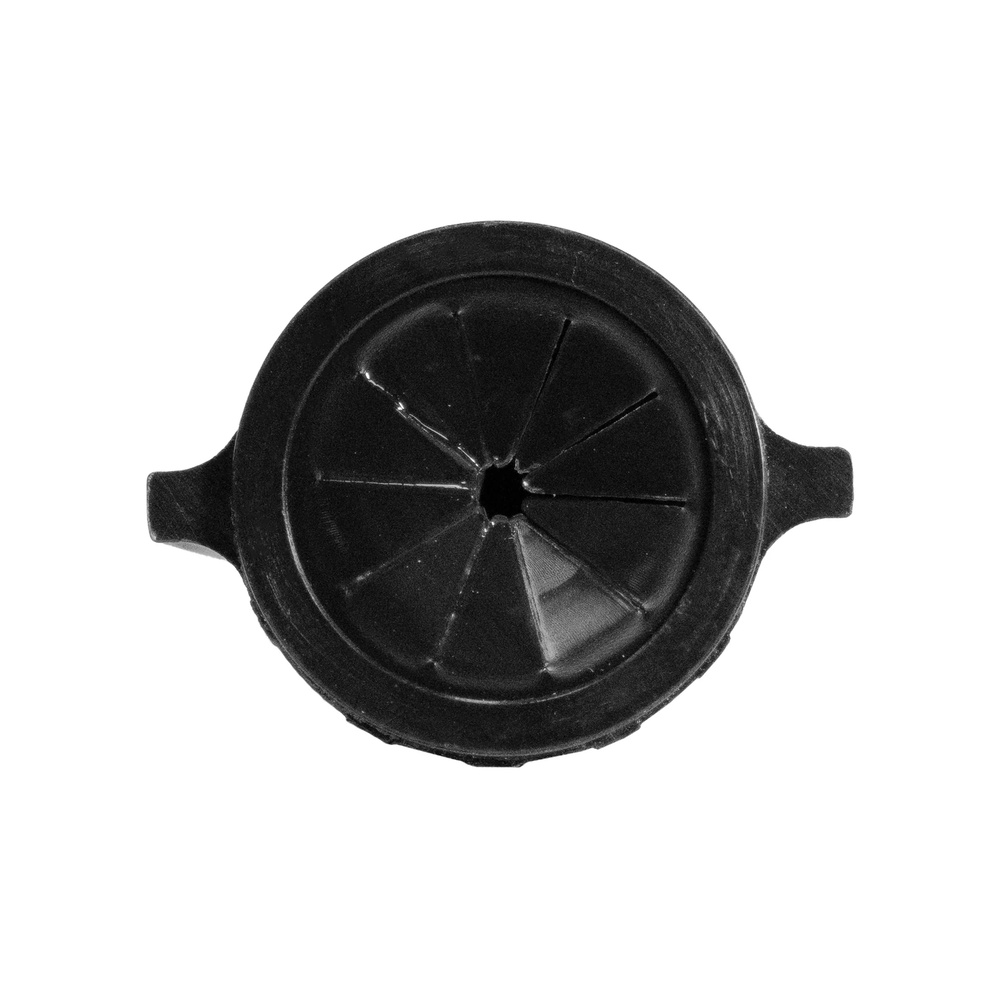

- Fixed end cap secures sealant and protects connections
- Swept-wing and hex top help easily tighten and remove.

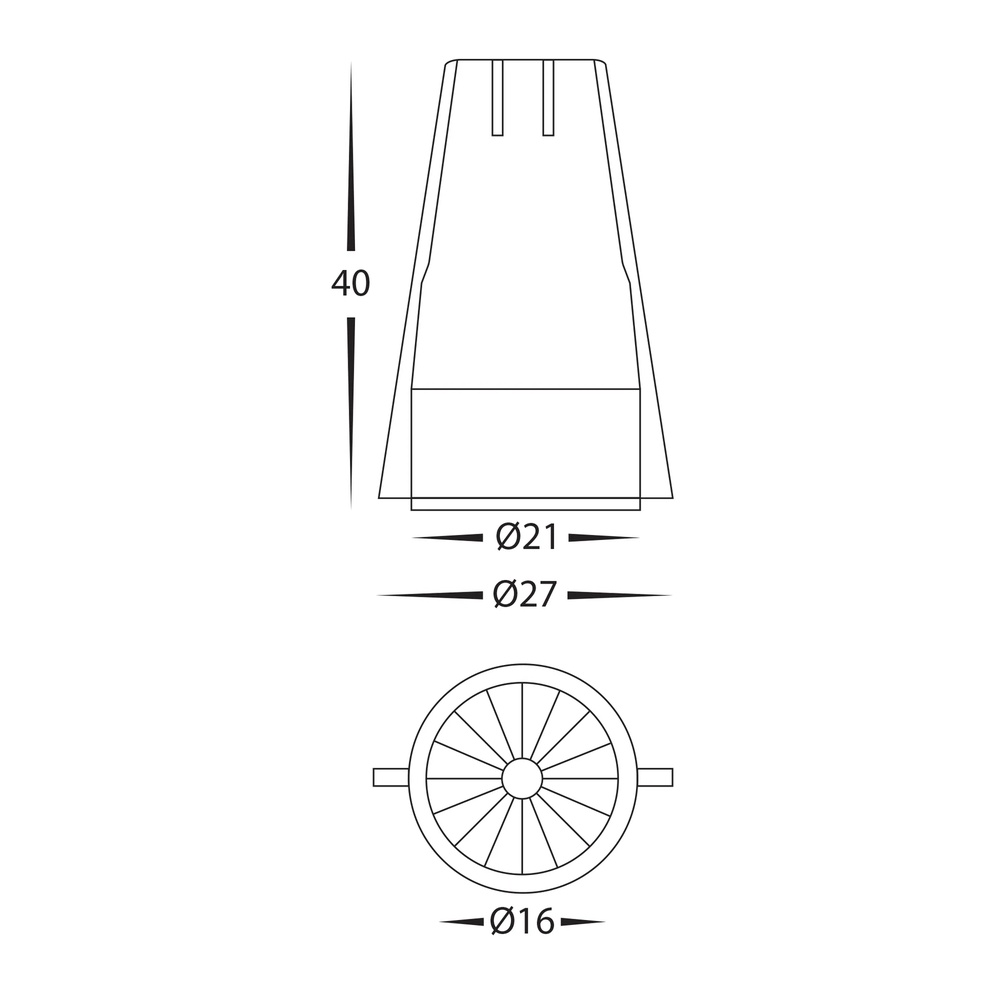

Dimensions
- Height: 40mm
- Width: 27mm
Click to view technical specifications:
