Description
Infrared sensors - surface / recessed occupancy
Application
- Recessed or surface mount infrared interior sensor
Design Specifications
- Switched power 2000W incandescent, 600W, Fluorescent, 300W LED
- Standby power <1W
- Detection distance Max. 18 m in diameter
- Detection angle 360° , Duration Time / 10sec / 40min adjustable
- Dawn to dusk adjustable, mounting height Max. 3m
- Manual override mode: When the lamp(s) is switched on, turn the lamp(s) off/on twice within 3 seconds, the sensor will go to an 8 hour override mode, during which the lamp(s) will stay on. The sensor will then return to normal detection mode During override mode, turn the lamp(s) on/off twice within 3 seconds or turn off the lamp(s) for over 10 seconds, the sensor will return to normal detection mode.
Specifications
- Operating voltage: 240V
- Switched power: 1000W incandescent, 300W Fluorescent, 300W LED
- Standby power: <1W
- Detection distance: Max. 18 m in diameter for normal detection Max. 6 m in diameter for occupancy detection
- Detection angle: Approx. 360°
- Duration Time: 10 sec to 40 min adjustable
- Lux threshold: Dawn to dusk adjustable
- Sensor principle: 3 x Infrared sensor
- Material: PC
- Mounting height: 9 m

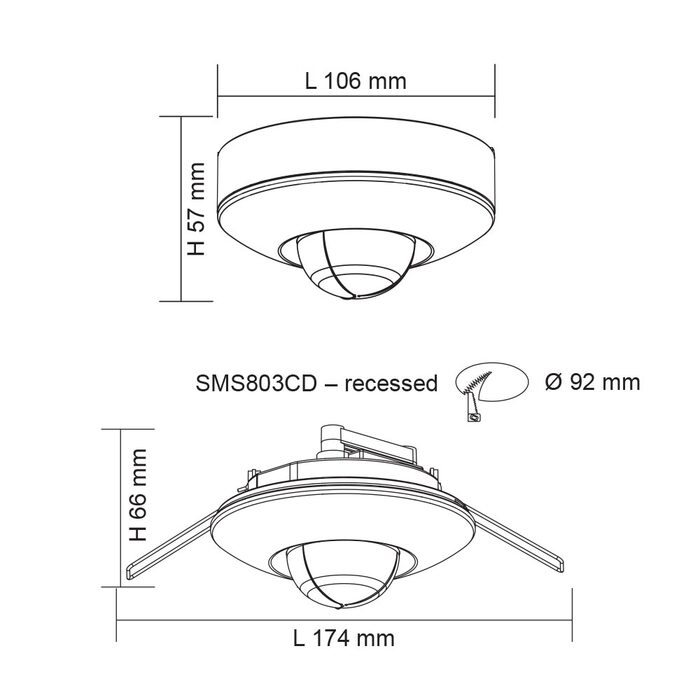

- Mounting method: Surface mounted or recessed
- Operating temperature: -10° ~ +40°C
- IP rating: IP20
MANUAL OVERRIDE MODE
- When the lamp(s) is switched on, turn the lamp(s) off/on twice within 3 seconds, the sensor will go to an 8 hour override mode, during which the
lamp(s) will stay on. The sensor will then return to normal detection mode
- During override mode, turn the lamp(s) on/off twice within 3 seconds or turn off the lamp(s) for over 10 seconds, the sensor will return to normal detection mode
Click to view technical specification:
