Description

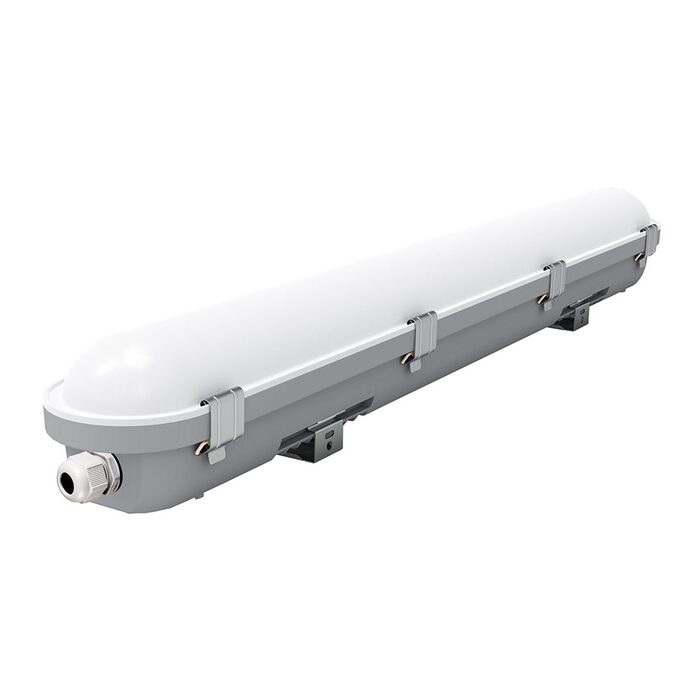

The Shield LED Waterproof Dual Power CCT Batten series is a direct replacement to traditional T8 and T5 Fluorescent battens.
Custom designed to colour match concrete ceilings, and incorporating a “quick fix” solution to allow for ease and speed of installation.
Constructed from high-quality and high impact resistant polycarbonate, with a polycarbonate diffuser.
Available in 600mm (9W/18W) and 1200mm (18W/36W) lengths, CCT 3000K Warm White, 4000K Cool White and 5000K Daylight colour temperatures.
Suitable for domestic applications such as underground basements, garages, and outdoor areas.
Also commercially for underground carparks.
Specifications
- Input voltage range: 220-240V 50Hz
- Wattage: 9W/18W
- Wattage switch inside driver
- LED chips: 120pcs SMD2835
- Tri-CCT (3000K / 4000K / 5000K) in one fitting
- Lumens: 800 Lumens / 1600 Lumens / 1000 Lumens / 2000 Lumens / 900 Lumens / 1800 Lumens
- Tri-CCT switch on internal driver
- Exterior LED waterproof dual power Tri-CCT battens
- Inbuilt Constant Current LED driver
- Housing & diffuser: PC
- CRI: >80
- Power factor: 0.9
- IP Rating: IP65
- Beam: 110°
- IK08 Rated
- Ambient temperature: -20 to 40°C
- Suitable for 2-way switching
- Suitable for use with 3 wire motion or Microwave sensors

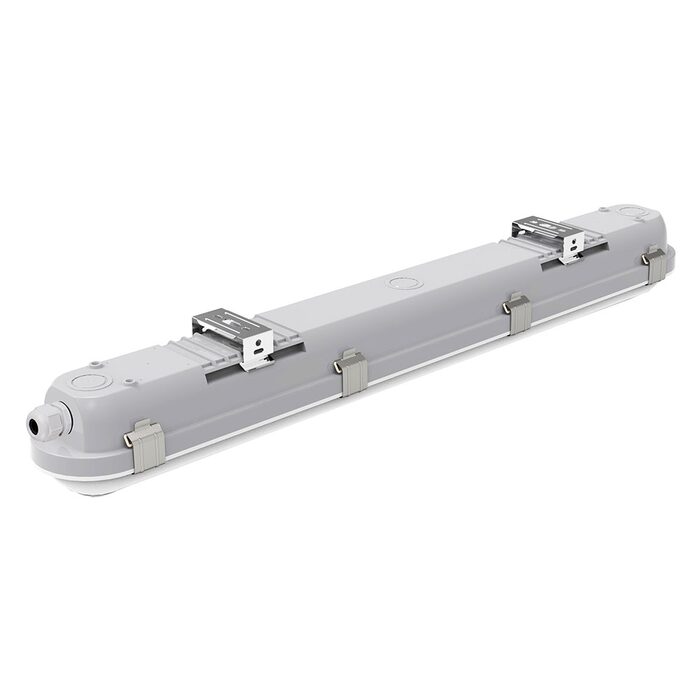

- Includes: 2 x Mounting brackets; 1 x Connector(IP65)

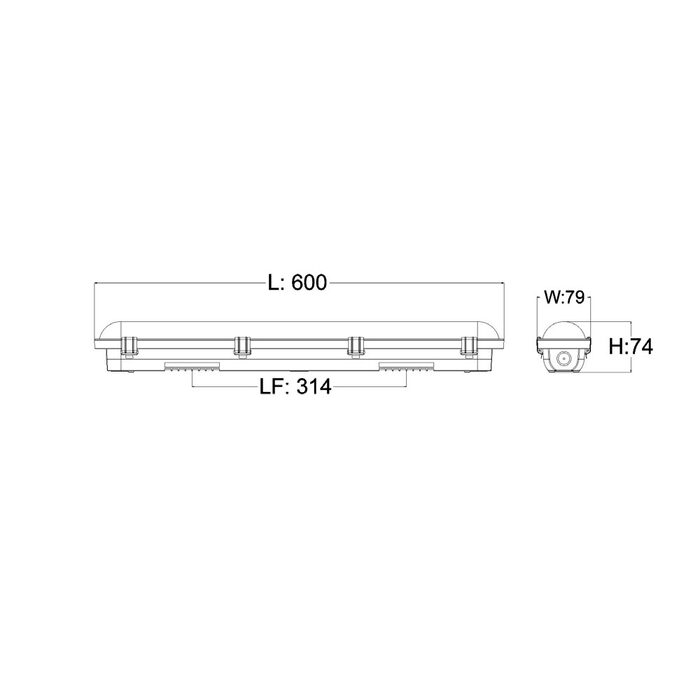

Dimension
- Length: 600mm
- Width: 79mm
- Height: 74mm
Click to view technical specification:
Custom designed to colour match concrete ceilings, and incorporating a “quick fix” solution to allow for ease and speed of installation.
Constructed from high-quality and high impact resistant polycarbonate, with a polycarbonate diffuser.
Available in 600mm (9W/18W) and 1200mm (18W/36W) lengths, CCT 3000K Warm White, 4000K Cool White and 5000K Daylight colour temperatures.
Suitable for domestic applications such as underground basements, garages, and outdoor areas.
Also commercially for underground carparks.
Specifications
- Input voltage range: 220-240V 50Hz
- Wattage: 9W/18W
- Wattage switch inside driver
- LED chips: 120pcs SMD2835
- Tri-CCT (3000K / 4000K / 5000K) in one fitting
- Lumens: 800 Lumens / 1600 Lumens / 1000 Lumens / 2000 Lumens / 900 Lumens / 1800 Lumens
- Tri-CCT switch on internal driver
- Exterior LED waterproof dual power Tri-CCT battens
- Inbuilt Constant Current LED driver
- Housing & diffuser: PC
- CRI: >80
- Power factor: 0.9
- IP Rating: IP65
- Beam: 110°
- IK08 Rated
- Ambient temperature: -20 to 40°C
- Suitable for 2-way switching
- Suitable for use with 3 wire motion or Microwave sensors
- Includes: 2 x Mounting brackets; 1 x Connector(IP65)
Dimension
- Length: 600mm
- Width: 79mm
- Height: 74mm
Click to view technical specification:
