Description
The Duncan LED Batten is a one box solution.
Available in two common sizes, its ability to not only change the wattage but also the colour temperature makes an ideal replacement for traditional battens.
Application
- Office & school lighting: office room, meeting room, class room
- Commercial lighting: shopping mall, super market, retailer shops
- Workshop & garage
Specifications
- Input Voltage: 240V
- Wattage: 20W / 40W
- Colour Temp: 3000K (Warm White) / 4000K (Cool White) / 6500K (Daylight)
- Lumens For 20W: 2000 Lumens
- Lumens For 40W: 4000 Lumens
- CRI: ≥80
- Beam: 120°
- Conventional linear LED batten product for commercial service spaces
- Steel body 71mm wide
- Quality white powdercoated finish with robust polycarbonate diffuser
- Large 16mm2 terminal block connections
- Easy installation with generous 20mm central cable entry
- Integral constant current non-dimmable LED driver
- High efficiency SMD LED chips, CRI > 80, 120 degree beam distribution
- Easy selectable colour changing temperature (CCT) with an inbuilt switch 3000K, 4000K, 6500K
- Selectable power adjustment with an inbuilt switch
- 600mm - 10W/20W
- 1200mm - 20W/40W
- 3 year warranty

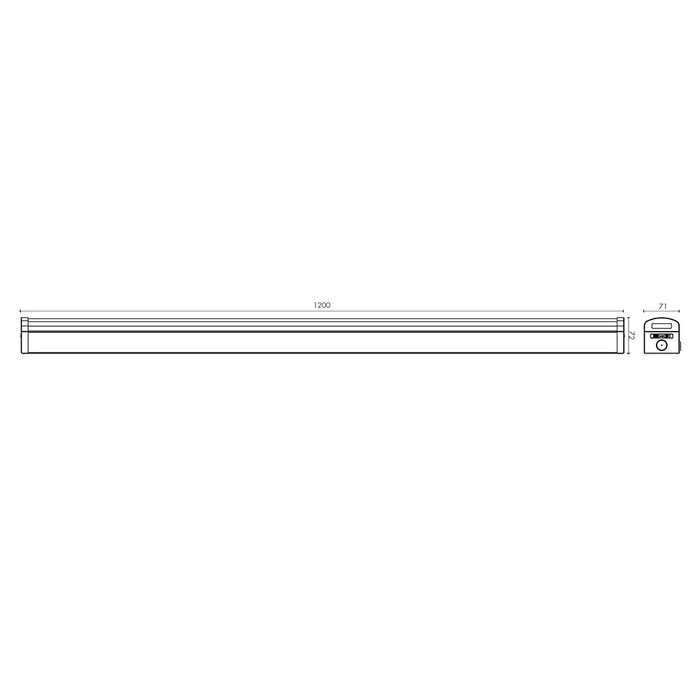

Dimensions
- Length: 1200mm
- Width: 71mm
- Height: 72mm
Click to view technical specification:
