Description

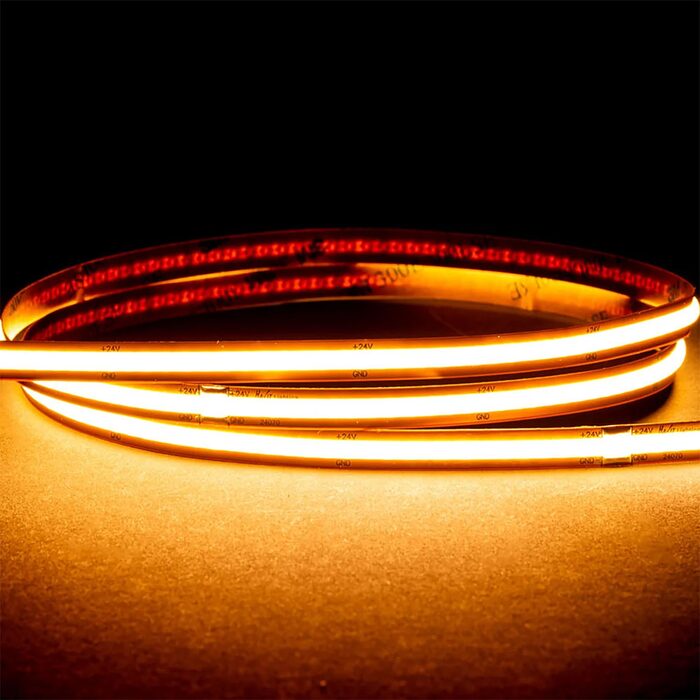

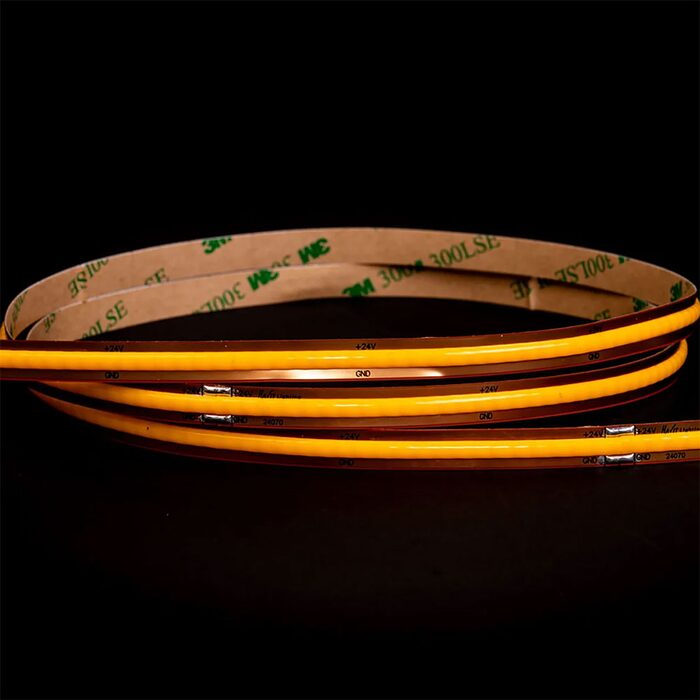

The HV9761-IP20-528-3K is a premium 12W per metre Free Cut COB (Chip-on-Board) Dotless LED Strip designed to deliver seamless 3000K Warm White illumination for high-end architectural and decorative lighting applications.
Featuring advanced COB technology with 528 LEDs per metre, it produces a continuous, dot-free line of light without visible LED hotspots, making it ideal for exposed installations and shallow aluminium profiles.
Its Free Cut design allows the strip to be cut at virtually any point, providing maximum flexibility for custom installations with minimal waste.
Operating on 24V DC, it is perfect for under-cabinet lighting, shelving, joinery, cove lighting, display lighting, retail fit-outs, hospitality venues, and premium residential projects.
Specifications
- Input Voltage: 24V DC power supply required (not included)
- Wattage: 12W
- Colour Temp: 3000K
- Lumens: 1200lm
- IP Rating: IP20
- Beam Angle: 120°
- PCB: 3oz
- Wiring: Parallel
- Lamp Expectancy: <50000hrs
- CRI: >90
- Dimmable: Yes
- LED Chip Type: COB
- Compatible Driver: Non-Dimmable. Triac, 0-1/10v & Dali
- No. of Chips Per Metre: 528
- Maximum Cut Length: 5000mm
- Cutting Increments: Anywhere (Free Cut)
- Mounting: Aluminium Profile or Heat Sink
- Operating Temperature: 0 - +60° Celsius
- Ambient Temperature: -20° - +50° Celsius
- Warranty: 3 Years Replacement
- Sold by the Metre
Dimensions
- Length: 1000mm
- Width: 8mm
- Height: 2mm
