Description

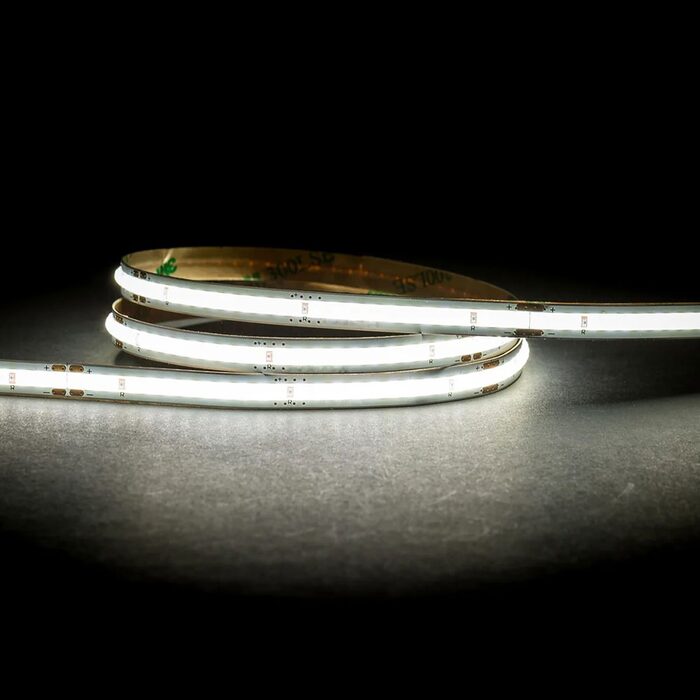

The HV9762-IP20-320-5K is a premium CSP (Chip Scale Package) Dotless LED strip designed to deliver smooth, seamless illumination with a bright 5500K daylight colour temperature.
Featuring 320 LEDs per metre, this 10W LED strip produces a continuous line of light with no visible LED hotspots, making it ideal for task lighting, retail displays, offices, workshops, and modern architectural applications where crisp, high-visibility lighting is required.
Operating on 24V DC, the flexible strip includes 3M adhesive backing for fast and secure installation across a wide range of indoor lighting projects.
Specifications
- Input Voltage: 24V DC power supply required (not included)
- Wattage: 10W
- Colour Temp: 5500K
- Lumens: 1030lm
- IP Rating: IP20
- Beam Angle: 120°
- PCB: 3oz
- CRI: >80
- Lamp Expectancy: >50000hrs
- Wiring: Parallel
- Dimmable: Yes
- LED Chip Type: CSP
- No. of Chips Per Metre: 320
- Maximum Cut Length: 5000mm
- Cutting Increments: 50mm
- Mounting: Aluminium Profile or Heat Sink
- Operating Temperature: 0 - +60° Celsius
- Ambient Temperature: -20° - +50° Celsius
- Warranty: 3 Years Replacement*
- Sold Per Metre
Dimensions
- Length: 1000mm
- Width: 8mm
- Height: 2mm
