Description

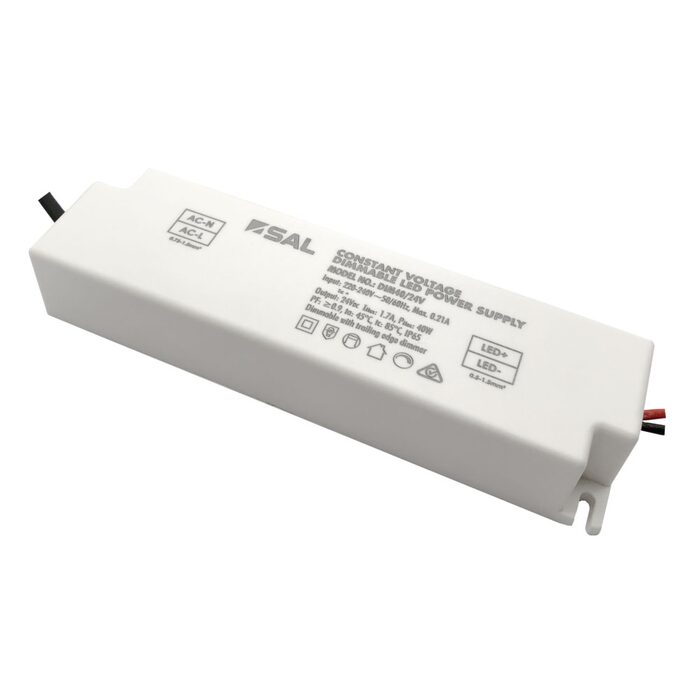

Australian approved IP65 dimmable 24V constant voltage LED driver
Application
- Suitable for LED strip, trailing edge dimming models
Specifications
- Input Voltage: 240V
- Output Voltage: 24V DC
- Wattage: 40W
- SELV and EMC compliant
- Safe no load operation, 40 watt, minimum load 5 watt, PF > 90, output 24V
- Overload and short circuit protection
- 1.2 m flex & 2 pin plug fitted, output fly leads at the secondary end
- Recommended SAL trailing edge dimmers; SDD350UM, SDD400U, SDA450U, SDD350BT
Dimensions
- Length: 152mm
- Width: 40mm
- Height: 25mm
Click to view technical specification:
Application
- Suitable for LED strip, trailing edge dimming models
Specifications
- Input Voltage: 240V
- Output Voltage: 24V DC
- Wattage: 40W
- SELV and EMC compliant
- Safe no load operation, 40 watt, minimum load 5 watt, PF > 90, output 24V
- Overload and short circuit protection
- 1.2 m flex & 2 pin plug fitted, output fly leads at the secondary end
- Recommended SAL trailing edge dimmers; SDD350UM, SDD400U, SDA450U, SDD350BT
Dimensions
- Length: 152mm
- Width: 40mm
- Height: 25mm
Click to view technical specification:
