Description

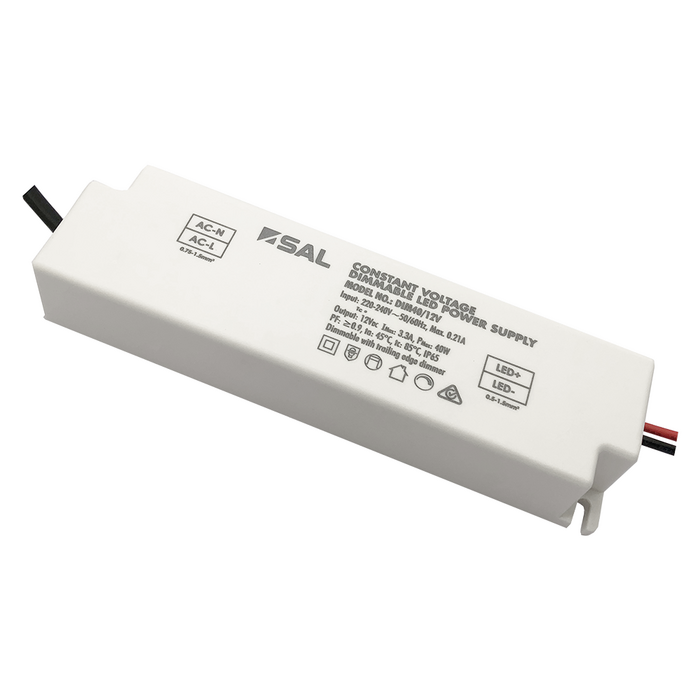

Australian approved IP65 dimmable 12V constant voltage LED driver
Application
- Suitable for LED strip, trailing edge dimming models
Specifications
- Input Voltage: 240V
- Output Voltage: 12V DC
- Wattage: 40W
- SELV and EMC compliant
- Safe no load operation, 40 watt, minimum load 5 watt, PF >0.9, output 12V
- Overload and short circuit protection
- 1.2 m flex & 2 pin plug fitted (DIM40W), Output fly leads at secondary end
- Recommended SAL trailing edge dimmers SDD350UM, SDD400U, SDA450U, SDD350BT
Dimensions
- Length: 155mm
- Width: 43mm
- Height: 26mm
Click to view technical specification:
Application
- Suitable for LED strip, trailing edge dimming models
Specifications
- Input Voltage: 240V
- Output Voltage: 12V DC
- Wattage: 40W
- SELV and EMC compliant
- Safe no load operation, 40 watt, minimum load 5 watt, PF >0.9, output 12V
- Overload and short circuit protection
- 1.2 m flex & 2 pin plug fitted (DIM40W), Output fly leads at secondary end
- Recommended SAL trailing edge dimmers SDD350UM, SDD400U, SDA450U, SDD350BT
Dimensions
- Length: 155mm
- Width: 43mm
- Height: 26mm
Click to view technical specification:
