Description

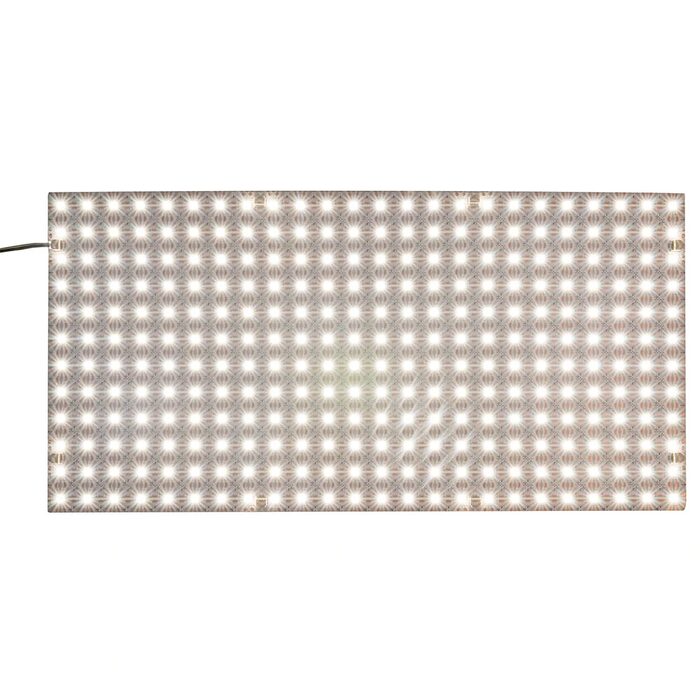

CRI>90, 24V DC, LED Sheet, IP20
Application
- A creative solution for residential and commercial interior spaces, requiring LED sheet for back lighting.
Specifications
- Input Voltage: 24V DC power supply required (not included)
- Wattage: 60W
- Colour Temperature: 5000K (Daylight)
- Lumen Output: 5507 Lumens per sheet
- LED Chips Per Metre: 288
- PCB: 3OZ
- LED Chip Type: 2835
- CRI: >90
- Cutting Increments: Every 1 LED
- Beam: 120°
- 3m Double Side Tape For Easy Installation
- IP Rating: IP20
- Linkable with small cable supplied
- Maximum Qty: 4
- Wiring: Parallel
- Diming: 0-1/10V, Dali, DMX, RF
- Operating Temperature: -20° To 65° Celcius
- Ambient Temperature: -20° To 45° Celcius
- Mounting: Aluminium
- 5 Years Replacement Warranty

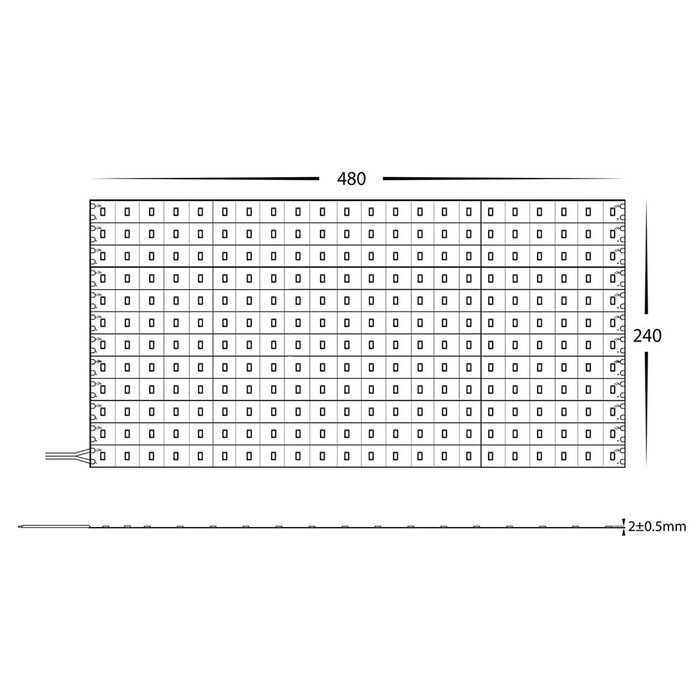

Dimensions
- Length: 480mm
- Width: 240mm
Click to view technical specification:
Application
- A creative solution for residential and commercial interior spaces, requiring LED sheet for back lighting.
Specifications
- Input Voltage: 24V DC power supply required (not included)
- Wattage: 60W
- Colour Temperature: 5000K (Daylight)
- Lumen Output: 5507 Lumens per sheet
- LED Chips Per Metre: 288
- PCB: 3OZ
- LED Chip Type: 2835
- CRI: >90
- Cutting Increments: Every 1 LED
- Beam: 120°
- 3m Double Side Tape For Easy Installation
- IP Rating: IP20
- Linkable with small cable supplied
- Maximum Qty: 4
- Wiring: Parallel
- Diming: 0-1/10V, Dali, DMX, RF
- Operating Temperature: -20° To 65° Celcius
- Ambient Temperature: -20° To 45° Celcius
- Mounting: Aluminium
- 5 Years Replacement Warranty
Dimensions
- Length: 480mm
- Width: 240mm
Click to view technical specification:
