Usually leaves our warehouse in 3-4 business days
Description
The Surface Mounted Aluminium Profile – 3 Metre is designed to create clean, high-performance linear lighting installations with a sleek architectural finish. Featuring a wide, low-profile design, it delivers smooth, uniform illumination while providing excellent protection and heat dissipation for compatible LED strips.
Manufactured from high-quality aluminium with a silver finish, this profile is ideal for surface-mounted installations in residential and commercial environments. It accommodates LED strips up to 40mm wide and 6mm high, making it perfect for offices, retail spaces, hospitality venues, showrooms, corridors and modern architectural lighting applications where a broad, even light output is required.
Supplied as a 3 metre length, the profile includes six end caps for added installation flexibility. Its UV stabilised polycarbonate diffuser minimises visible LED hotspots while producing a soft, consistent light output for a professional architectural finish.
Specifications
- Material: Aluminium
- Colour: Silver
- LED Strip Type: Up to 40mm (w) x 6mm (h)
- Diffuser Type: UV Stabilised Standard PC
- IP Rating: IP20
- Available Lengths: Up to 3000mm
- Installation Method: Surface Mounted
- Supplied with 6x end caps per Length
- Custom Lengths Available Upon Request
- Warranty: 3 Years Replacement
- Width: 80mm
- Height: 35mm
- Length: 3000mm
Click to view technical specifications:
Manufactured from high-quality aluminium with a silver finish, this profile is ideal for surface-mounted installations in residential and commercial environments. It accommodates LED strips up to 40mm wide and 6mm high, making it perfect for offices, retail spaces, hospitality venues, showrooms, corridors and modern architectural lighting applications where a broad, even light output is required.
Supplied as a 3 metre length, the profile includes six end caps for added installation flexibility. Its UV stabilised polycarbonate diffuser minimises visible LED hotspots while producing a soft, consistent light output for a professional architectural finish.
Specifications
- Material: Aluminium
- Colour: Silver
- LED Strip Type: Up to 40mm (w) x 6mm (h)
- Diffuser Type: UV Stabilised Standard PC
- IP Rating: IP20
- Available Lengths: Up to 3000mm
- Installation Method: Surface Mounted
- Supplied with 6x end caps per Length
- Custom Lengths Available Upon Request
- Warranty: 3 Years Replacement
Note: Long Run diffuser will be supplied over 100mm longer than requested length to allow for diffuser to be cut to exact length during installation.

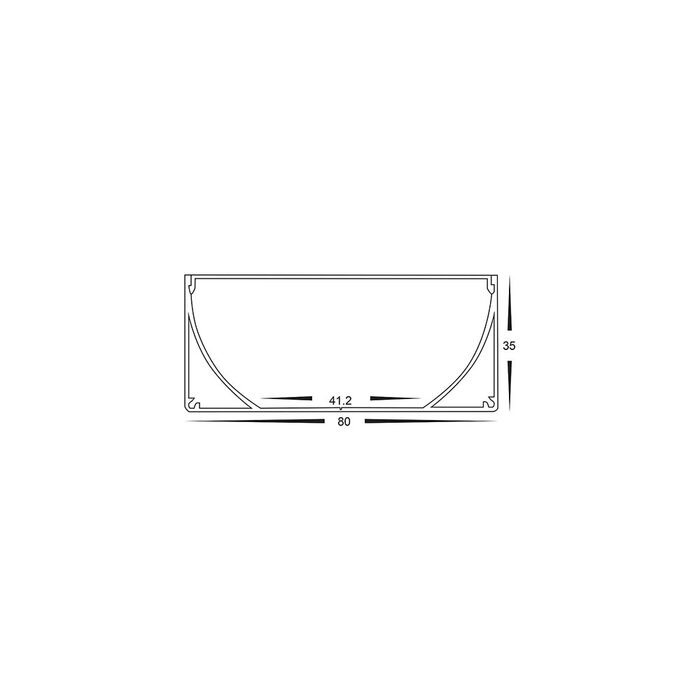

Dimensions- Width: 80mm
- Height: 35mm
- Length: 3000mm
Click to view technical specifications:
