Description

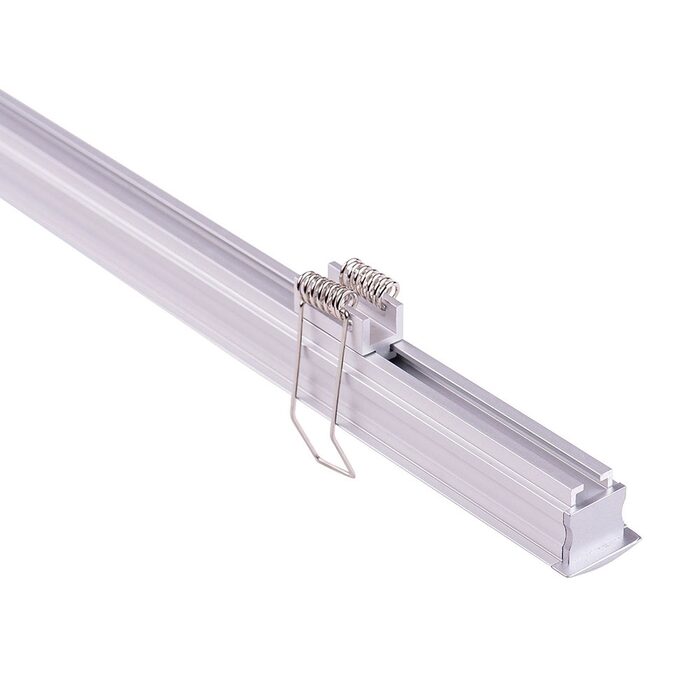

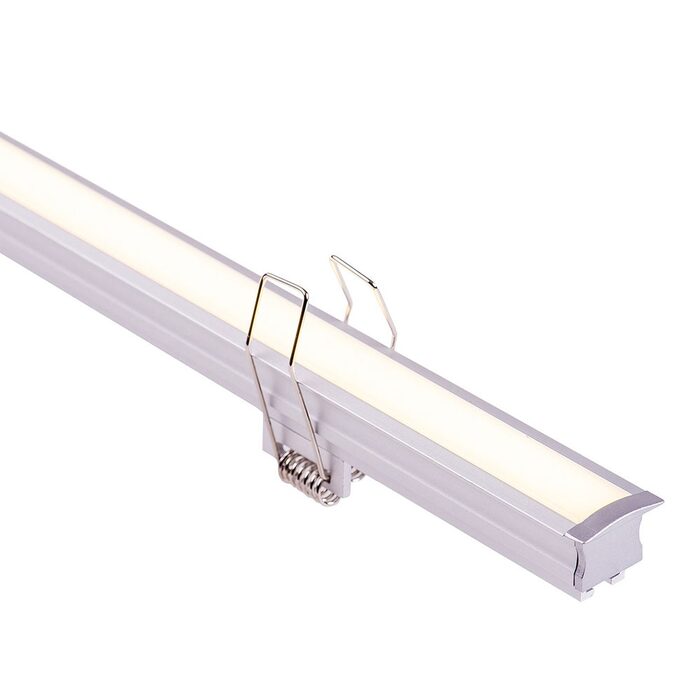

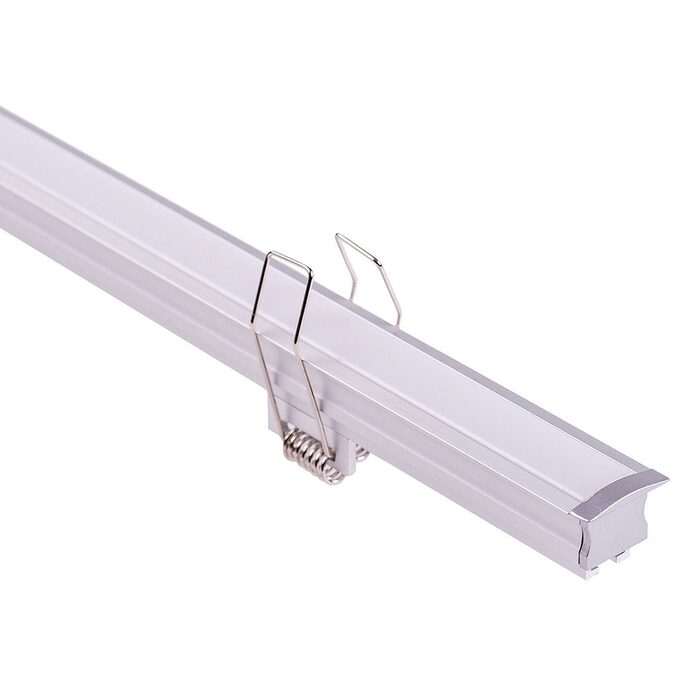

The HV9695-2520-3M Deep Recessed Square Winged Aluminium Profile is a premium 3-metre architectural LED profile designed for recessed lighting applications where a clean, seamless finish is required.
Featuring a deep square profile with winged edges, it conceals cut edges for a professional flush installation while enhancing light diffusion and reducing visible LED hotspots.
Manufactured from high-quality aluminium, it accommodates LED strips up to 12mm wide (6mm high) and is compatible with UV-stabilised diffuser options, making it ideal for cabinetry, shelving, joinery, feature walls, display lighting, and other residential or commercial architectural lighting projects.
Specifications
- Material: Aluminium
- Fixture Colour: Silver
- LED Strip Type: 12mm (w) x 4mm (h)
- Available Lengths: Up to 3000mm
- Diffuser Type: UV Stabilised Standard PC
- IP Rating: IP20
- Installation Method: Recessed
- Supplied with 6x end caps per Length
- Supplied with 6x mounting clips per Metre
- Custom Lengths Available Upon Request
- Warranty: 3 Years Replacement**
Dimensions
- Cutout: 19mm
- Width: 23.7mm
- Height: 19.7mm
- Length: 3000mm
Click to view technical specifications:
