Description
The Havit HV9107-2309P-5C is a 5-channel, 7-in-1 DALI-2 DT8 LED strip controller, designed to manage CT, RGBW, and RGBCW LED strips via constant voltage.
It supports advanced color control (XY, RGBWAF, Tc) and features a digital display for manual DALI address assignment.
Specifications
- Input voltage: 12 - 36V DC
- Output Current: 5 x 5A
- Output Power: 5 x 60 - 180W (300W - 900W)
- LED Strip Type: CT, RGBW, RGBCW
- IP Rating: IP20
- Dimming Range: 0.1% - 100%
- Dali Consumption: 2mA
- Protection Class - 3 (no earth required - low voltage)
- Ambient Temperature: -20° C - +50°C
- Fixture Colour: White
- Material: Plastic
- Warranty: 3 Years Replacement*
Data
- Built-in DALI-2 interface, DALI DT8 device
- Multi-addresses enabled DT8 control gear
- Multi-devices integrated in one control gear
- Multi-functional, 7 in 1: Tc, RGBWAF, XY, 2*Tc, XY+Tc, RGB+Tc, XY+W (DT6)
- DALI address manually assignable through manual set buttons and showed on the display
- Can be set as different device types: single-address types or multi-addresses types
- Single-address device types: Tc, RGBWAF, XY
- Multi-addresses device types: 2*Tc, XY+Tc, RGB+Tc, XY+W (DT6)
- 5 Channels constant voltage output
- Control of five PWM outputs via DALI device type 8
- Colour control as defined in the DALI specification device type 8
- Supports DT8 device commands, compatible with universal DALI masters that support DT8 commands
- Configuration via DALI master USB interface
- Colour temperature and RGB Colour control through push dim mode even without DALI

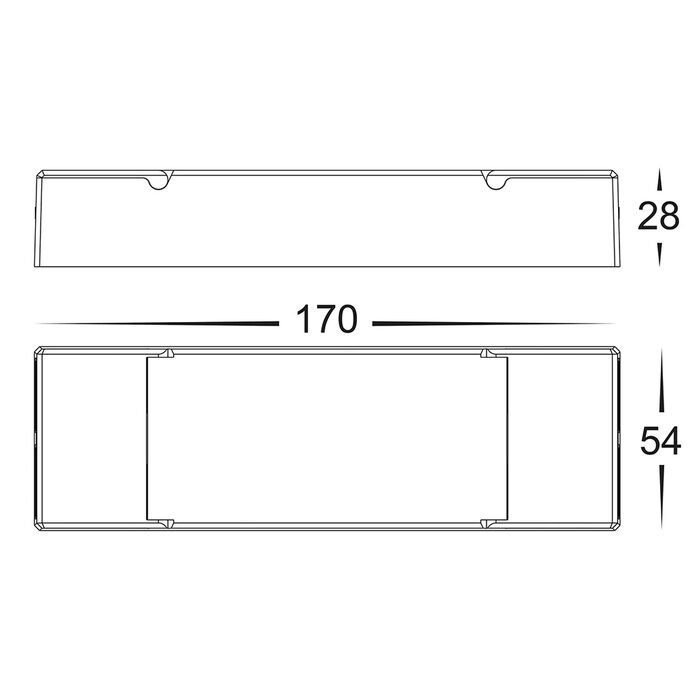

Dimensions
- Length: 170mm
- Width: 54mm
- Height: 28mm
