Description

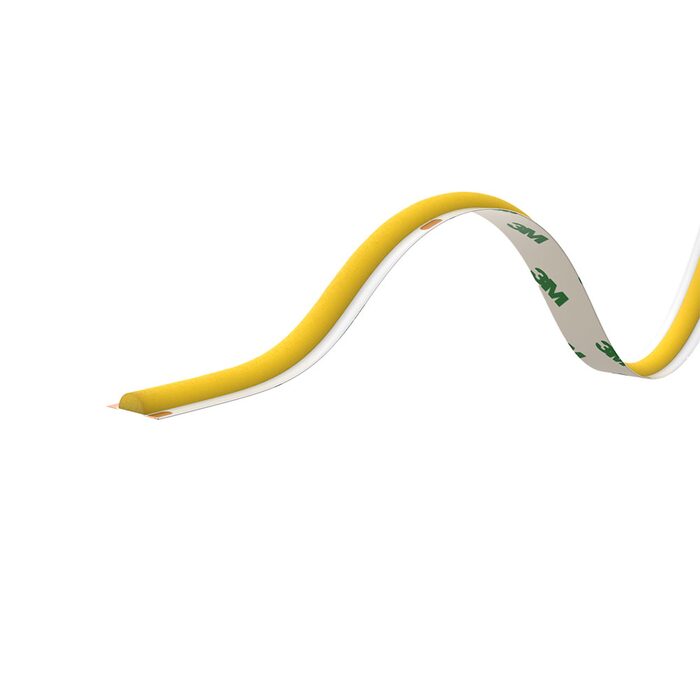

AQS-170 is the latest technology in LED Strip lighting. Use for internal illumination, the COB LED Strip minimises the issue of dark LED dots for a clean continuous linear light source.
Specifications
- Input Voltage: 24V DC power supply required (not included)
- Wattage: 5W Per Meter
- Colour Temperature: 2000K / 2700K / 3000K / 4000K / 6500K
- Lumen Output (per Meter): 400lm / 481.9lm / 519.1lm / 575lm / 560.7lm
- IP Rating: IP20
- Working Mode: Constant Voltage (PWM) / DMX
- Max Length (Single Power Feed): 5m
- Max Length (Double Power Feed): 10m
- Cut Interval: 31.25mm
- Bend Direction: Vertically
- Minimum Bend Diameter: 50mm
- LED Type: Sanan COB
- LED Qty / M: 512pcs
- Materials: 3M Adhesive Backing
- Emission Angle: 180°
- Operating Temperature: -20° to +40°C
- Installation Temperature: 5° to +35°C
- Sold Per Meter

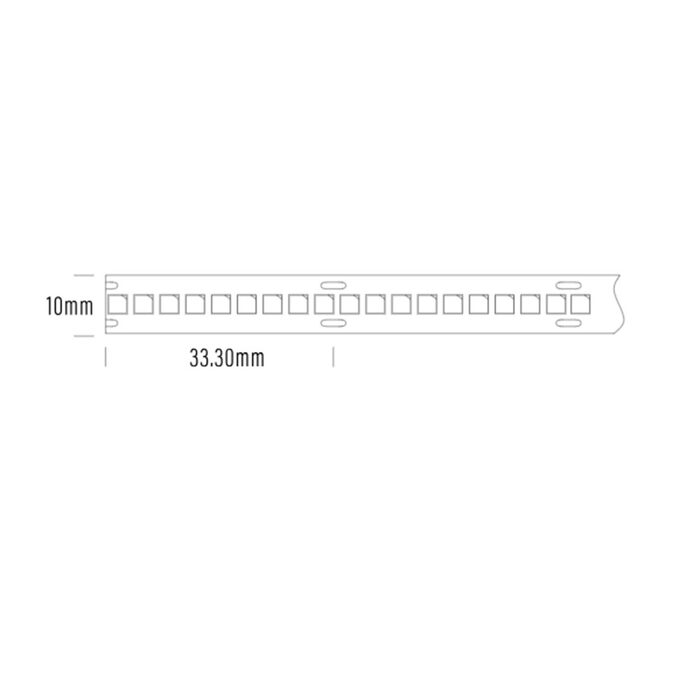

Dimensions
- Width: 10mm
- Height: 1.6mm
Click to view technical specification:
Specifications
- Input Voltage: 24V DC power supply required (not included)
- Wattage: 5W Per Meter
- Colour Temperature: 2000K / 2700K / 3000K / 4000K / 6500K
- Lumen Output (per Meter): 400lm / 481.9lm / 519.1lm / 575lm / 560.7lm
- IP Rating: IP20
- Working Mode: Constant Voltage (PWM) / DMX
- Max Length (Single Power Feed): 5m
- Max Length (Double Power Feed): 10m
- Cut Interval: 31.25mm
- Bend Direction: Vertically
- Minimum Bend Diameter: 50mm
- LED Type: Sanan COB
- LED Qty / M: 512pcs
- Materials: 3M Adhesive Backing
- Emission Angle: 180°
- Operating Temperature: -20° to +40°C
- Installation Temperature: 5° to +35°C
- Sold Per Meter
Dimensions
- Width: 10mm
- Height: 1.6mm
Click to view technical specification:
