Description

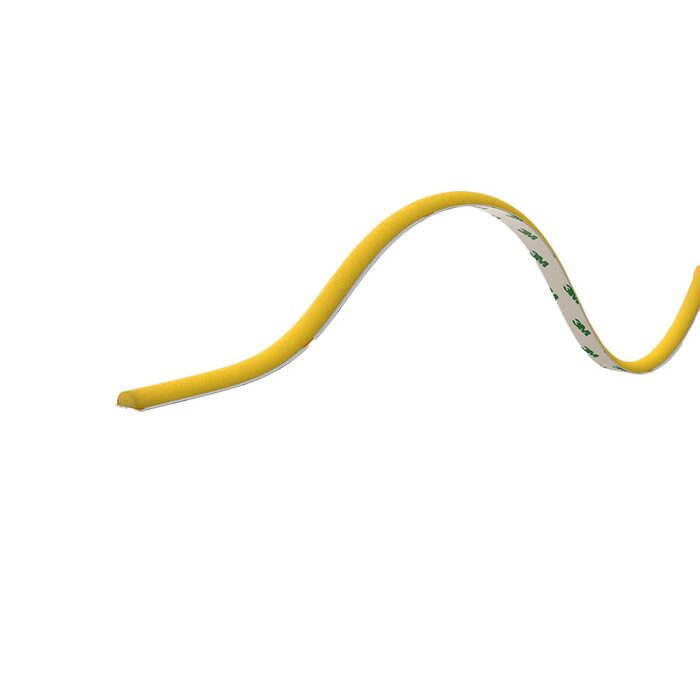

AQS-172 is the latest technology in LED strip lighting. A width of only 4mm makes the AQS-172 the thinnest COB strip available to date. Used for internal illumination, the COB LED strip minimises the issue of dark LED dots allowing for a clean continuous linear light source.
Specifications
- Input Voltage: 24V DC power supply (included)
- Wattage: 5W Per Meter (Total 25W)
- Colour Temperature: 6500K
- Lumen Output (per Meter): 580 Lumens
- IP Rating: IP20
- Working Mode: Constant Voltage (PWM) / DMX
- Max Length (Single Power Feed): 5m
- Max Length (Double Power Feed): 10m
- Cut Interval: 50mm
- Bend Direction: Vertically
- Minimum Bend Diameter: 50mm
- LED Type: Sanan COB
- LED Qty / M: 360 pieces
- Materials: 3M Adhesive Backing
- Emission Angle: 180°
- Operating Temperature: -20° to +40°C
- Installation Temperature: 5° to +35°C
Kit includes
1 x 5m 24V DC 6500K COB Strip
1 x 24V DC 30W Power Supply
2 x 15cm Tails (soldering required)

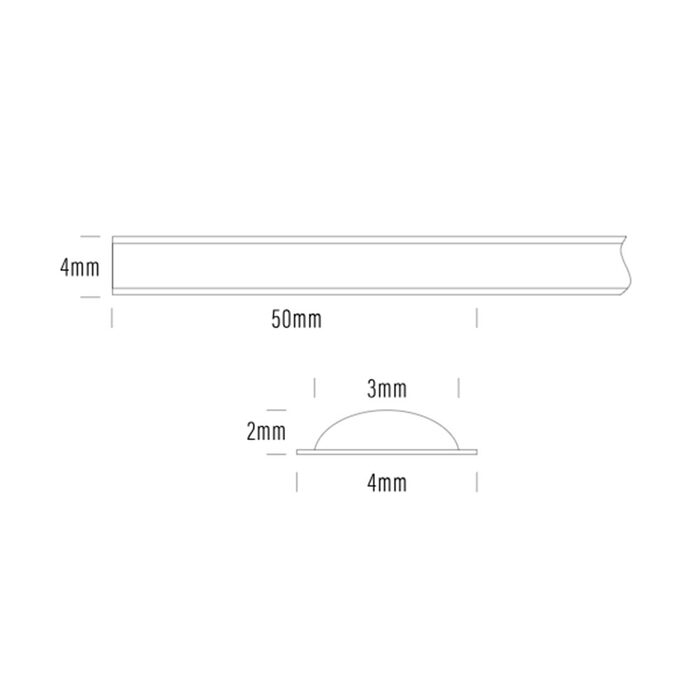

Dimensions
- Width: 4mm
- Height: 2mm
Click to view technical specification:
Specifications
- Input Voltage: 24V DC power supply (included)
- Wattage: 5W Per Meter (Total 25W)
- Colour Temperature: 6500K
- Lumen Output (per Meter): 580 Lumens
- IP Rating: IP20
- Working Mode: Constant Voltage (PWM) / DMX
- Max Length (Single Power Feed): 5m
- Max Length (Double Power Feed): 10m
- Cut Interval: 50mm
- Bend Direction: Vertically
- Minimum Bend Diameter: 50mm
- LED Type: Sanan COB
- LED Qty / M: 360 pieces
- Materials: 3M Adhesive Backing
- Emission Angle: 180°
- Operating Temperature: -20° to +40°C
- Installation Temperature: 5° to +35°C
Kit includes
1 x 5m 24V DC 6500K COB Strip
1 x 24V DC 30W Power Supply
2 x 15cm Tails (soldering required)
Dimensions
- Width: 4mm
- Height: 2mm
Click to view technical specification:
