Description

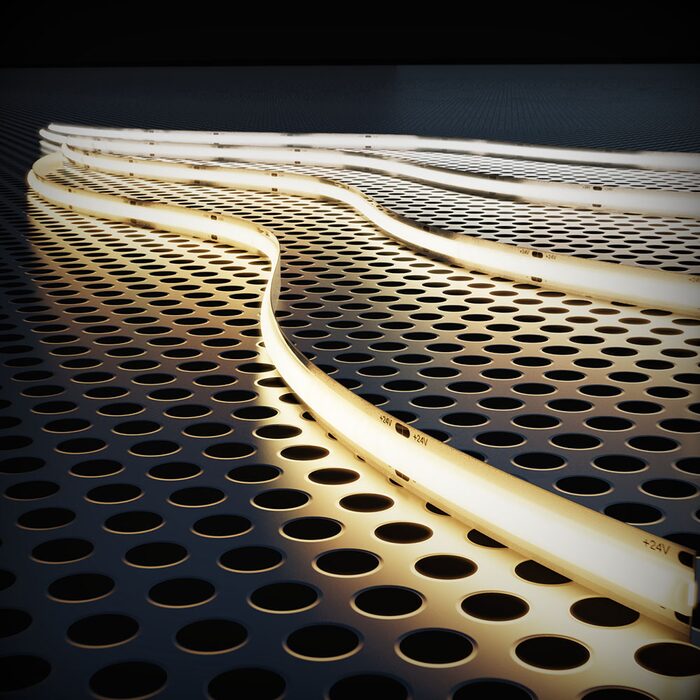

AQS-170 is a high output IP20 COB LED Strip Light.
Strip Lights provides high levels of light offering superior colour rendering and enhanced colour, also can create layers of illumination and are the easiest and least expensive way to upgrade your home.
Specifications
- Input Voltage: 24V DC power supply (included)
- Wattage: 5W Per Meter (25W Total)
- Colour Temperature: 6500K (Daylight)
- Lumen Output (per Meter): 560.7 Lumens
- IP Rating: IP20
- Working Mode: Constant Voltage (PWM) / DMX
- Max Length (Single Power Feed): 5m
- Max Length (Double Power Feed): 10m
- Cut Interval: 50mm
- Bend Direction: Vertically
- Minimum Bend Diameter: 50mm
- LED Type: Sanan COB
- LED Qty / M: 360 pieces
- Materials: 3M Adhesive Backing
- Emission Angle: 180°
- CRI: 90
- Operating Temperature: -20° to +40°C
- Installation Temperature: 5° to +35°C

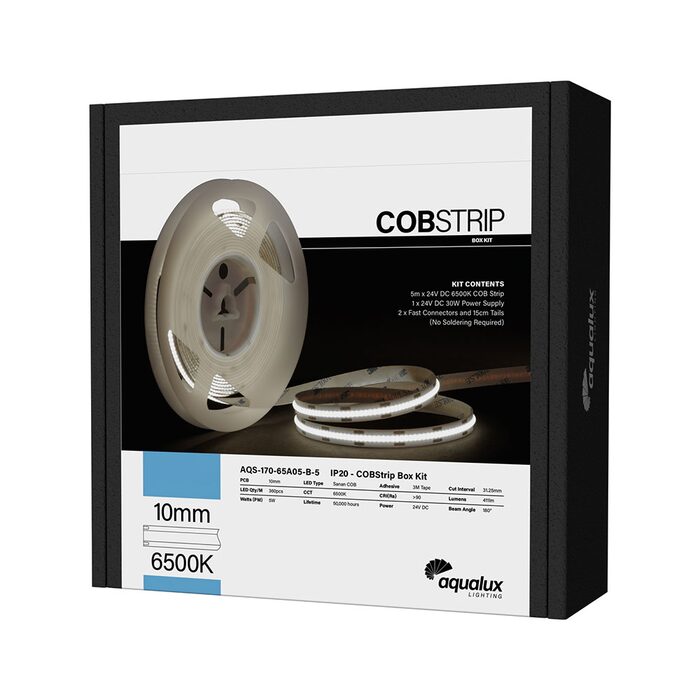

Kit includes
1 x 5m roll of AQS-170-65A05-B
1 x 30W 24VDC IP20 PSU
2 x Fast connectors & 15cm tails. No soldering required.

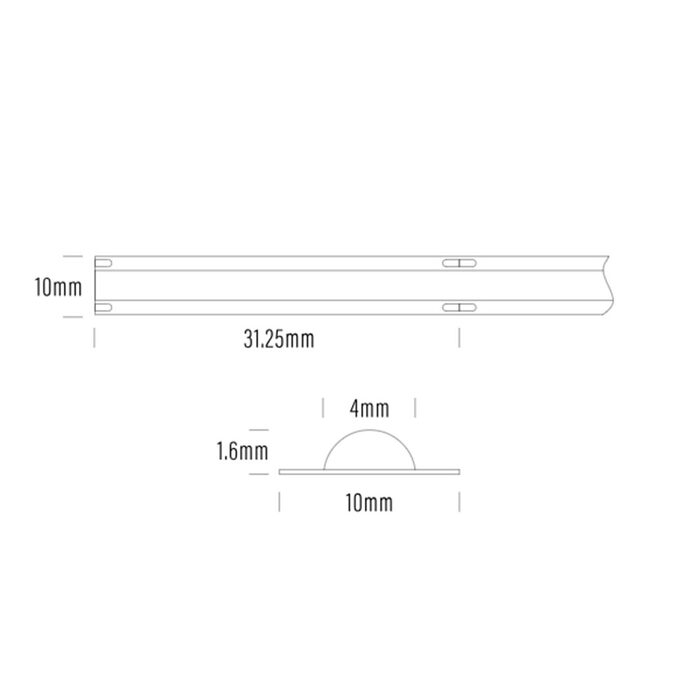

Dimensions
- Width: 10mm
- Height: 1.6mm
Click to view technical specification:
