Usually leave our warehouse within 7-10 business days
Description

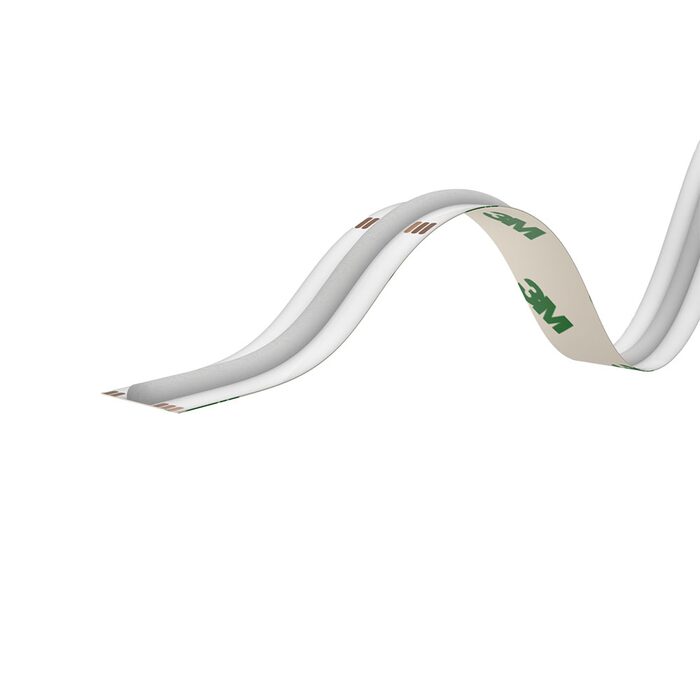

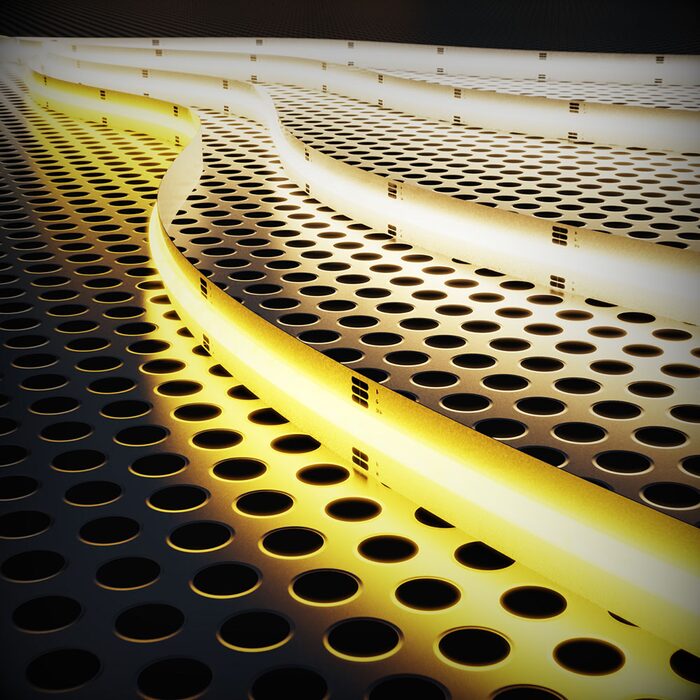

AQS-173 is the latest technology in Mono COB Strip lighting. Where maximum light and quality is required. 12mm PCB for improved stability. Reduce cut intervals for precise cutting. Ultra high CRI 95+. Use for internal illumination, the COB LED Strip minimises the issue of dark LED dots for a clean continuous linear light source.
Specifications
- Input Voltage: 24V DC power supply required (not included)
- Wattage: 20W Per Meter
- Colour Temperature: 2000K / 2700K / 3000K / 4000K
- Lumen Output (per Meter): 1140lm / 1420lm / 1633lm / 1740lm
- IP Rating: IP20
- Working Mode: Constant Voltage (PWM) / DMX
- Max Length (Single Power Feed): 5m
- Max Length (Double Power Feed): 10m
- Cut Interval: 27.78mm
- Bend Direction: Vertically
- Minimum Bend Diameter: 50mm
- LED Type: COB
- LED Qty / M: 576pcs
- Materials: 3M Adhesive Backing
- Emission Angle: 180°
- Operating Temperature: -20° to +40°C
- Installation Temperature: 5° to +35°C
- Sold Per Meter

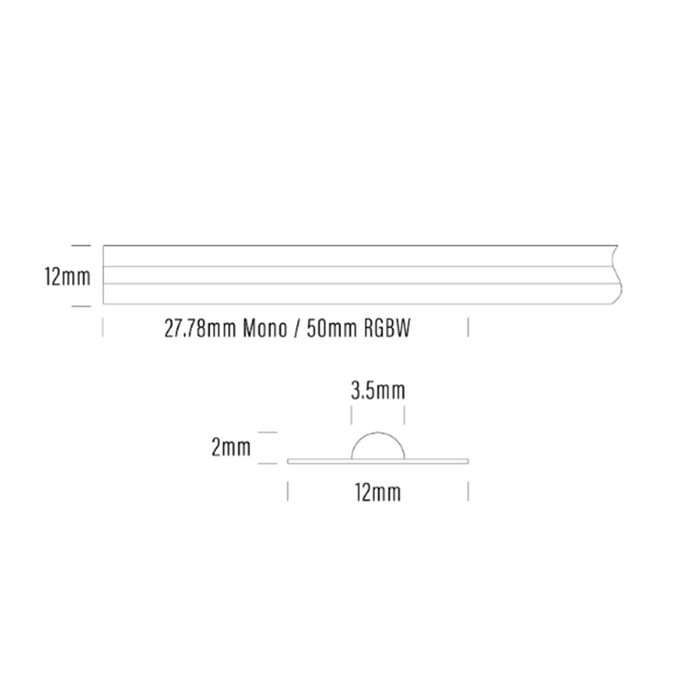

Dimensions
- Width: 12mm
- Height: 2mm
