Description

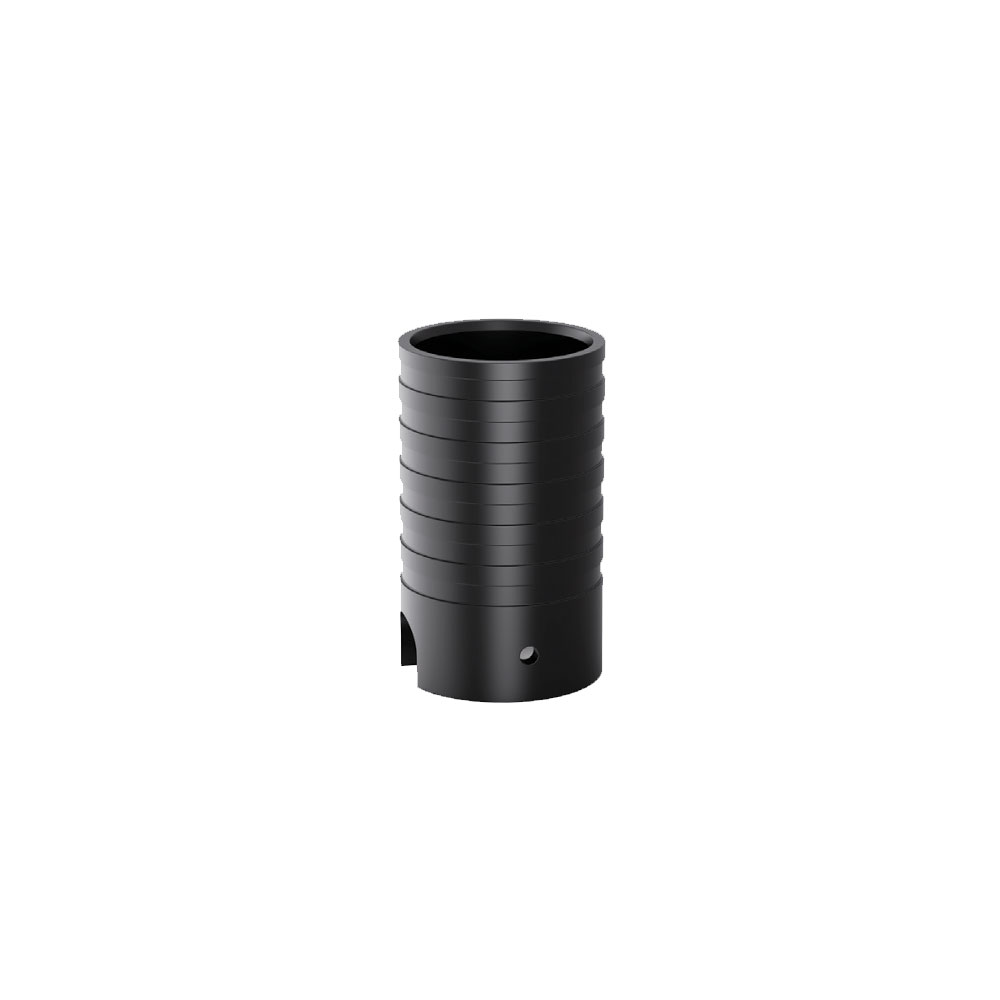

These mounting canisters provide an efficient and professional method of mounting Aqualux AQL recessed luminaires.
The mounting canister is installed during the rough-in stage of construction, avoiding damage to the luminaire itself, and the final stages of installation are completed at a later stage.
The canister holds the luminaire in place by means of two high-temperature, heavy-duty gaskets and this allows installation with no visible screws on the front trim.
Compatible with the Below
- AQL-155
- AQL-162
- AQL-163
- AQL-164
- AQL-165
- AQL-166
- AQL-530
- AQL-530.01
- AQL-531
- AQL-531.01
- AQL-532
- AQL-532.01

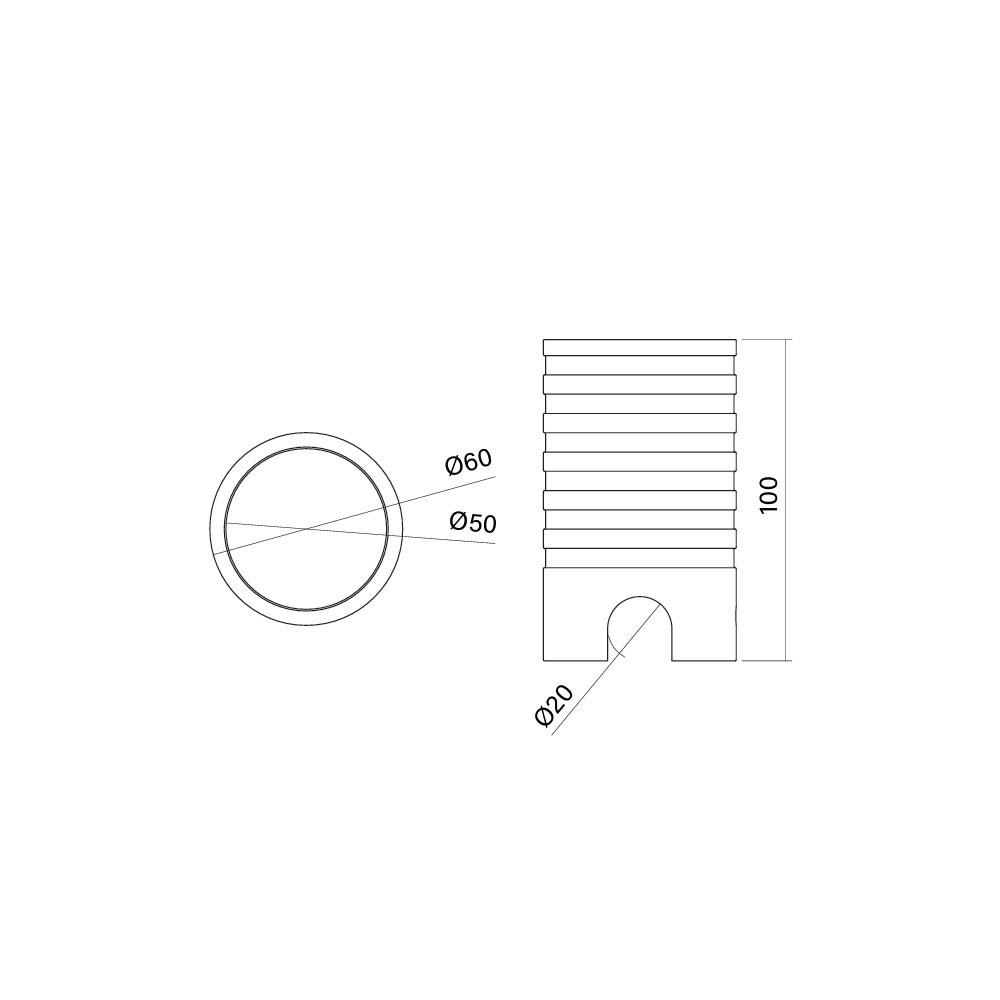

Dimensions
- Outer Diameter: 60mm
- Inner Diameter: 50mm
- Conduit Hole Diameter: 20mm
- Depth: 100mm
Click to view technical specification:
The mounting canister is installed during the rough-in stage of construction, avoiding damage to the luminaire itself, and the final stages of installation are completed at a later stage.
The canister holds the luminaire in place by means of two high-temperature, heavy-duty gaskets and this allows installation with no visible screws on the front trim.
Compatible with the Below
- AQL-155
- AQL-162
- AQL-163
- AQL-164
- AQL-165
- AQL-166
- AQL-530
- AQL-530.01
- AQL-531
- AQL-531.01
- AQL-532
- AQL-532.01
Dimensions
- Outer Diameter: 60mm
- Inner Diameter: 50mm
- Conduit Hole Diameter: 20mm
- Depth: 100mm
Click to view technical specification:
