Special order, please allow up to 2 weeks
Description

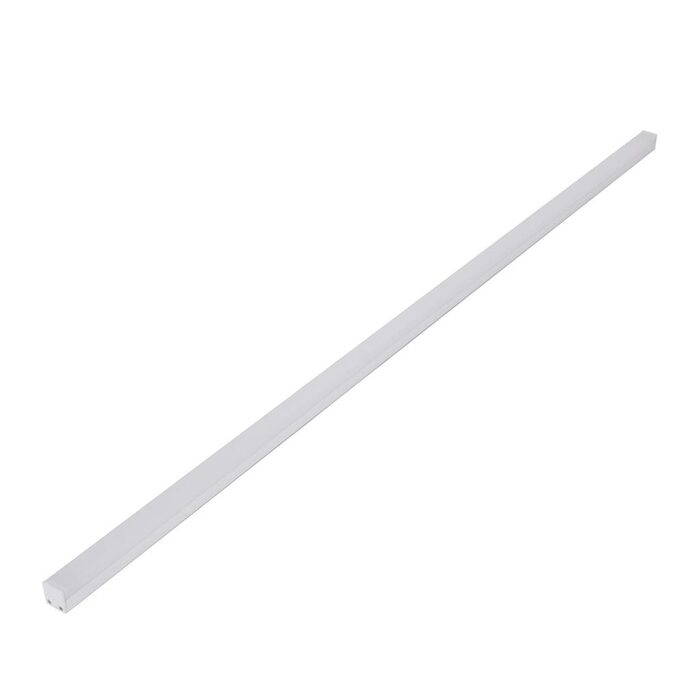

Introducing the BLOC-20-SM LED mounting profile system.
The Bloc-20-SM is specifically designed for the Domus range of LED strip lighting.
This aluminium mounting profile system incorporated extruded profile complete with a square opal colour PMMA diffuser.
The key features of the BLOC-20-SM is the ability to not only conceal the LED strip lighting but also keep the strip lighting linear.
Also, the BLOC-20-SM keeps LEDs free from foreign objects and vapours which may damage the LEDs.
The finishing of this product is a perfect complement to any area where discrete lighting is required.
Applications include lounge rooms, dining areas, bathrooms, storage areas, shelving or any other architectural application.
Specifications
- Installation: Wall, Surface or suspended mounted
- Material: Extruded aluminium 6063
- Finish: Natural clear anodised
- Diffuser: Wrap around (PMMA) frost colour
- Maximum Length (mm): 2500mm continuous*
- Accessories (each): End caps (silver) and wire suspensions**
- Special: Custom powder coated colour upon request***
- Driver Installation: Remote driver required (not Included)
* Profile sold per meter. Can be cut to suit any length.
** Accessories to be ordered separately.
*** Special powder coat finishes upon request. Surcharges apply.

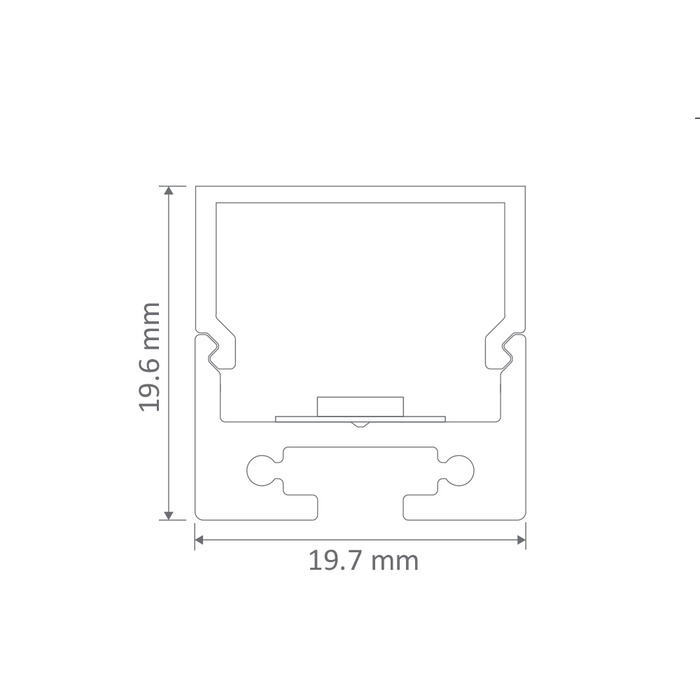

Dimensions
- Profile Height: 19.6mm
- Length: 1000mm
- Profile Width: 19.7mm
Click to view technical specification:
The Bloc-20-SM is specifically designed for the Domus range of LED strip lighting.
This aluminium mounting profile system incorporated extruded profile complete with a square opal colour PMMA diffuser.
The key features of the BLOC-20-SM is the ability to not only conceal the LED strip lighting but also keep the strip lighting linear.
Also, the BLOC-20-SM keeps LEDs free from foreign objects and vapours which may damage the LEDs.
The finishing of this product is a perfect complement to any area where discrete lighting is required.
Applications include lounge rooms, dining areas, bathrooms, storage areas, shelving or any other architectural application.
Specifications
- Installation: Wall, Surface or suspended mounted
- Material: Extruded aluminium 6063
- Finish: Natural clear anodised
- Diffuser: Wrap around (PMMA) frost colour
- Maximum Length (mm): 2500mm continuous*
- Accessories (each): End caps (silver) and wire suspensions**
- Special: Custom powder coated colour upon request***
- Driver Installation: Remote driver required (not Included)
* Profile sold per meter. Can be cut to suit any length.
** Accessories to be ordered separately.
*** Special powder coat finishes upon request. Surcharges apply.
Dimensions
- Profile Height: 19.6mm
- Length: 1000mm
- Profile Width: 19.7mm
Click to view technical specification:
