Description

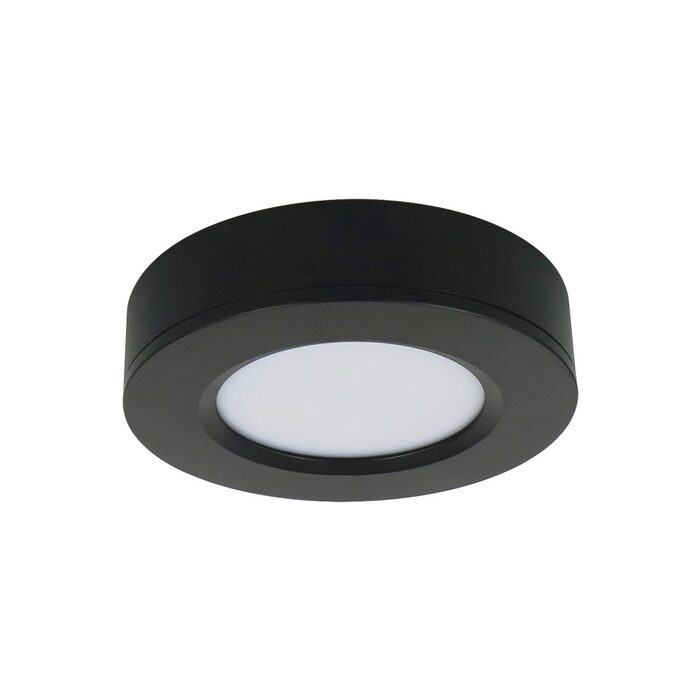

Introducing the ASTRA LED cabinet lighting series.
The ASTRA is an alternative to the traditional halogen light sources.
The ASTRA features a high output LED package to offer superior performance and light over the working area whilst only consuming a total 3.6W of energy.
The ASTRA offers two mounting options to cover a wide range of applications.
These include recessed mounting or surface mounting. Smooth even lighting is provided from a single light point and frosted lens.
Available in White, Black, Silver, Satin Brass and Polished Chrome colour options.
Tricolour switchable: choose between Warm White 3000K, Neutral White 4000K, or White 5000K colour temperatures with the flick of a dip switch. Requires 12V DC Constant Voltage LED Driver.
Specifications
- Input Voltage: 12V DC power supply required (not included)
- Wattage: 3.6W
- LED Type: SMD
- Colour Temp: 3000K / 4000K / 5000K
- Lumens: 200 Lumens / 230 Lumens / 205 Lumens
- Beam: 110°
- IP Rating: IP20
- Dimmable: Yes
- CRI: ≥80
- Warranty Period: 3Y
- Warranty Type: Replacement
Recessed Dimensions
- Diameter: 65mm
- Cutout: 57mm
- Depth: 11mm
Surface Dimensions
- Diameter: 70mm
- Height: 16mm
Click to view technical specification:
