Description

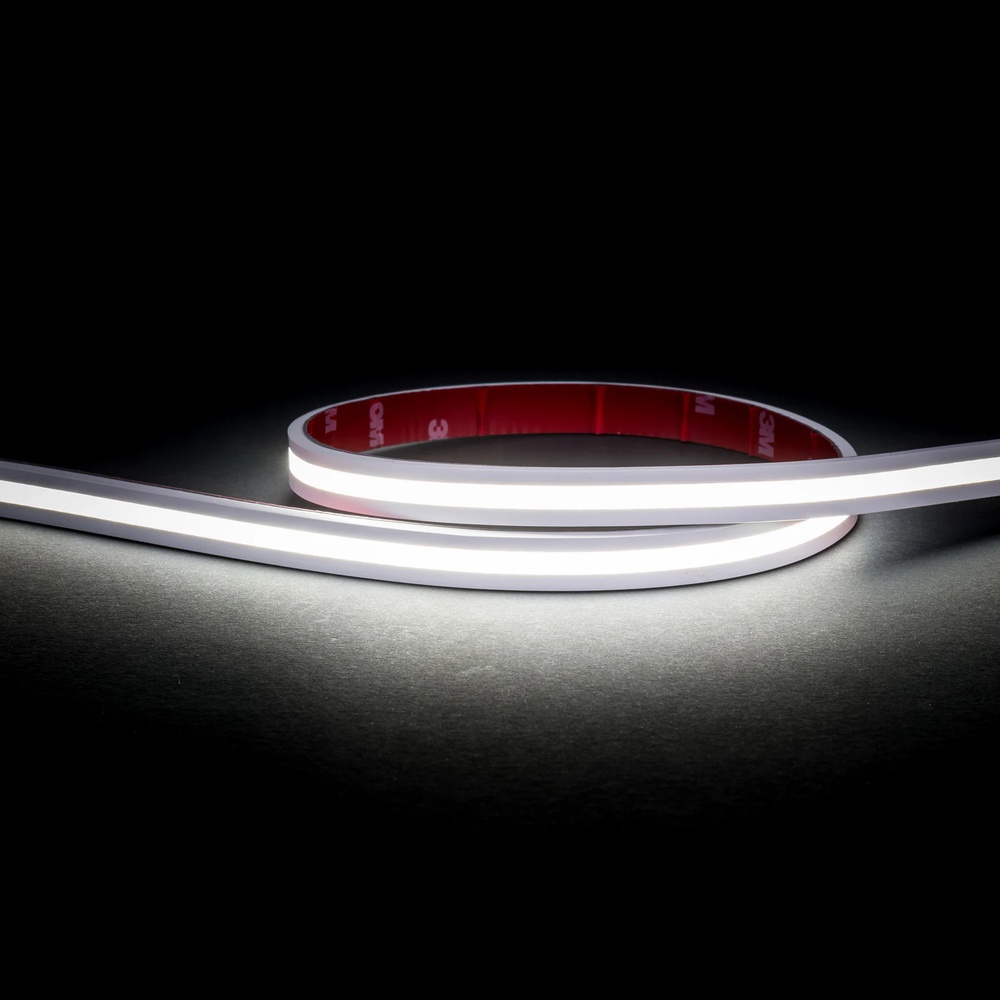

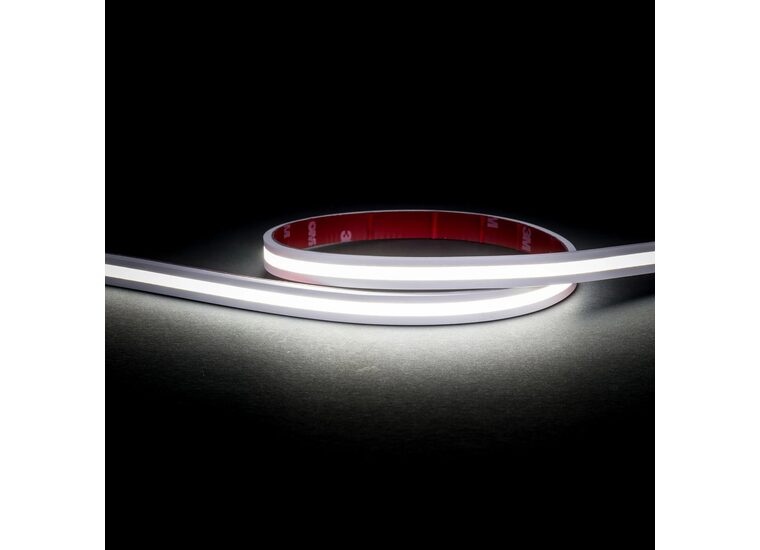

The HV9768-IP67-280-5K-20M is a flexible LED Strip supplied in a 20 metre roll, designed to provide bright, smooth and consistent 5000K cool white illumination.
Featuring 280 LED chips per metre and an IP67 weather-resistant construction, it is suitable for both indoor and outdoor applications, including architectural lighting, cabinetry, pathways and feature lighting where protection from moisture and dust is required.
Specifications
- Input Voltage: 24V DC power supply required (not included)
- Wattage: 9.6W
- Colour Temp: 5500K
- Lumens: 864m
- Beam Angle: 120°
- IP Rating: IP67
- PCB: 3oz
- CRI: >80
- Lamp Expectancy: >50000hrs
- Wiring: Parallel
- Dimmable: Yes
- LED Chip Type: 2220
- No. Chips Per Metre: 280
- Maximum Length: 5000mm
- Cutting Increments: 25mm
- Mounting: Aluminium Profile or Heat Sink
- Operating Temperature: 0 - +60° Celcius
- Ambient Temperature: -20° - +50° Celcius
- Warranty: 3 Years Replacement*
Dimensions
- Length: 20000mm
- Width: 13mm
- Height: 4.5mm
Click to view technical specifications:
