Description

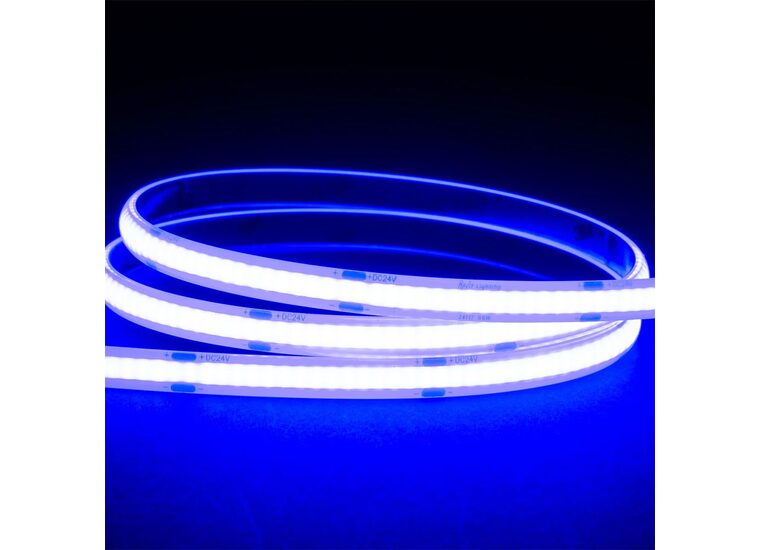

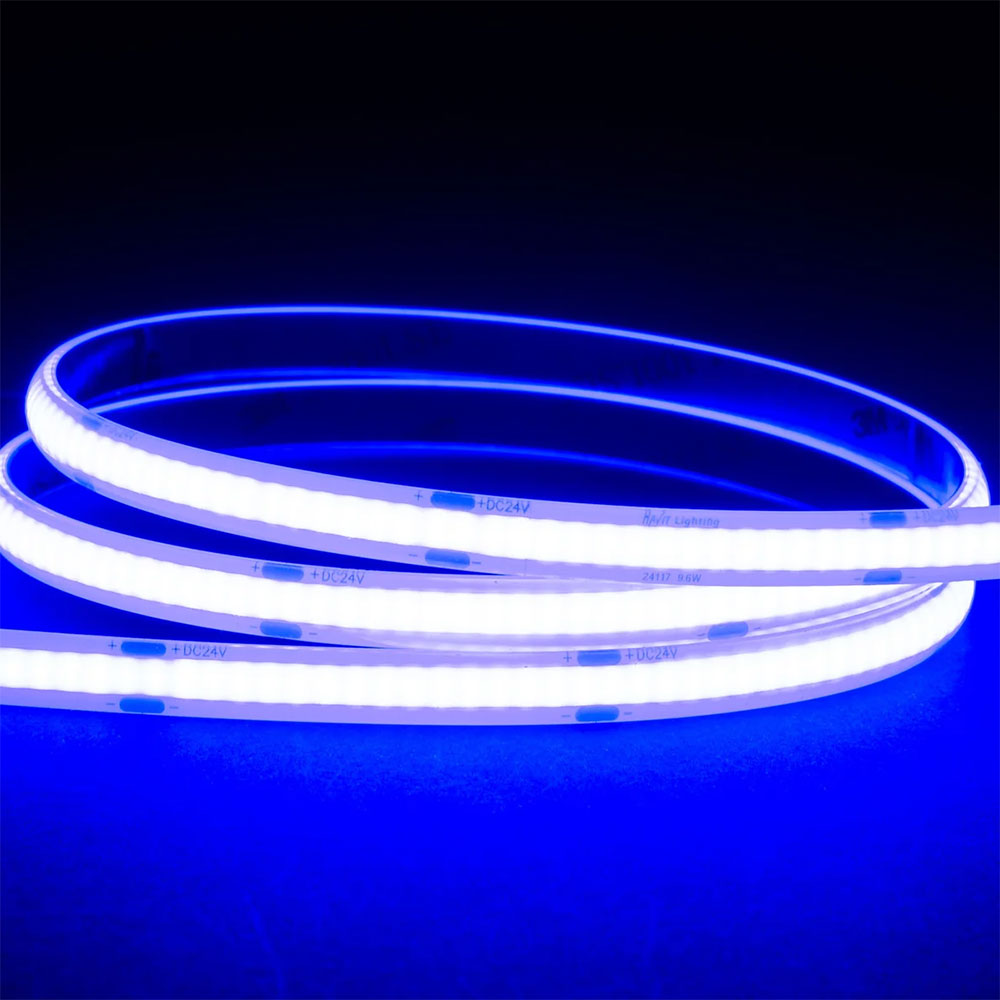

The HV9761-IP54-320-B is a premium 9.6W per metre COB (Chip-on-Board) Dotless LED Strip designed to deliver seamless Blue illumination for indoor and protected outdoor decorative lighting applications.
Featuring advanced COB technology with 320 LEDs per metre, it creates a continuous, dot-free line of light without visible LED hotspots, making it ideal for exposed installations and shallow aluminium profiles.
The IP54 protective silicone coating provides increased resistance against dust and water splashes, making it suitable for kitchens, bathrooms, covered outdoor areas, and other environments requiring additional protection.
Operating on 24V DC, the flexible strip is perfect for signage, cove lighting, display lighting, entertainment venues, hospitality settings, retail displays, and architectural accent lighting where vibrant coloured illumination is required.
Specifications
- Input Voltage: 24V DC power supply required (not included)
- Wattage: 9.6W
- Colour Temp: Blue
- Lumens: 60lm
- IP Rating: IP54
- Beam Angle: 120°
- PCB: 3oz
- Wiring: Parallel
- Lamp Expectancy: <50000hrs
- CRI: >90
- Dimmable: Yes
- LED Chip Type: COB
- Compatible Driver: Non-Dimmable, Triac, 0-1/10v & Dali
- No. of Chips Per Metre: 320
- Maximum Cut Length: 5000mm
- Cutting Increments: 50mm
- Mounting: Aluminium Profile or Heat Sink
- Operating Temperature: 0 - +60° Celsius
- Ambient Temperature: -20° - +50° Celsius
- Warranty: 3 Years Replacement
- Sold Per Metre
Dimensions
- Length: 1000mm
- Width: 8mm
- Height: 3mm
