Description

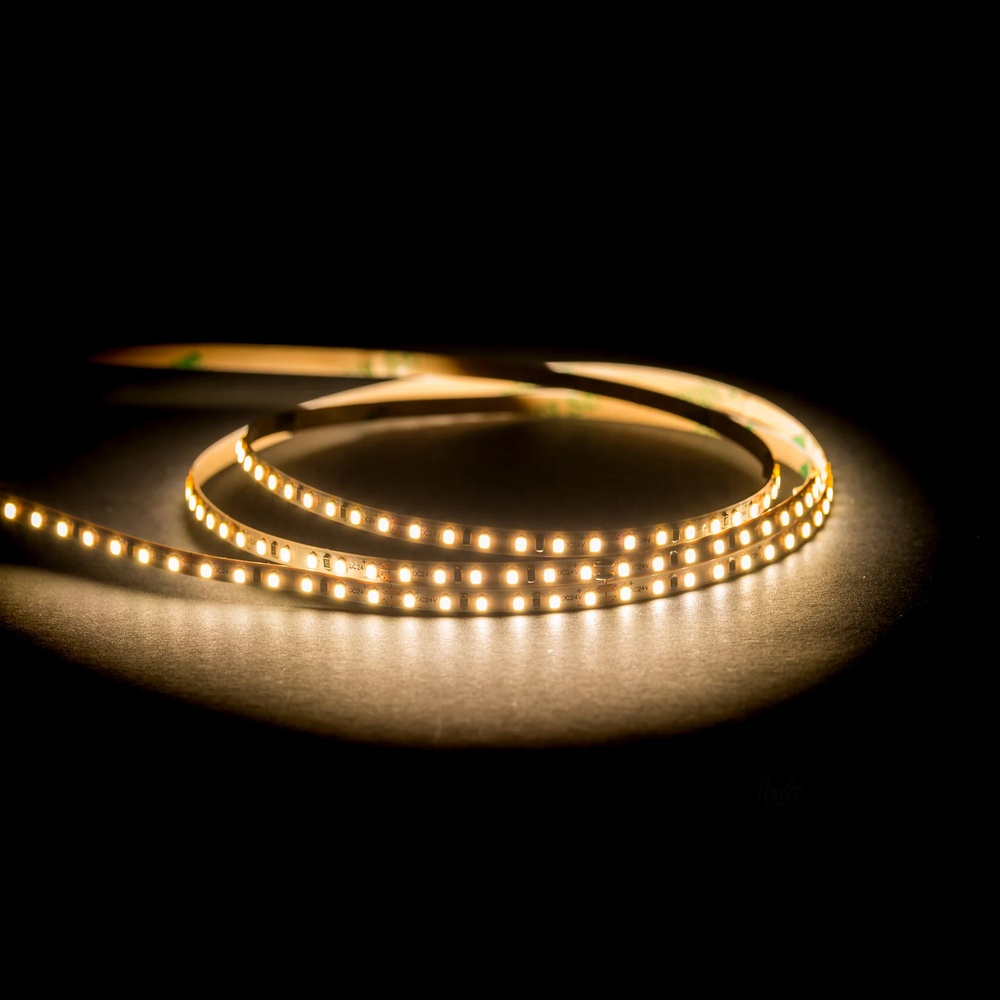

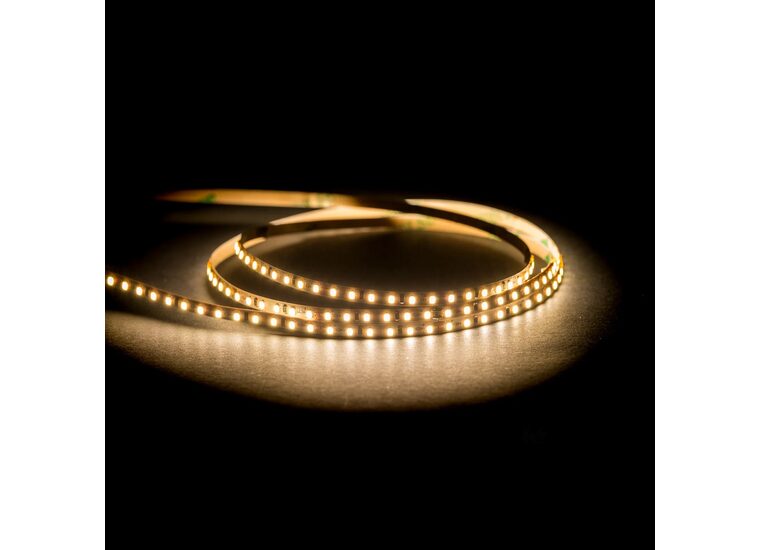

The HV9733-IP20-180-4K-30M is a slim and versatile Micro LED Strip supplied in a 30 metre roll, designed to provide smooth and consistent 4000K neutral white illumination.
Featuring 180 LED chips per metre and an ultra-narrow 4mm profile, it is ideal for cabinetry, shelving, display lighting, joinery and architectural applications where installation space is limited.
Specifications
- Input Voltage: 24V DC power supply required (not included)
- Wattage: 9.6W
- Colour Temp: 4000K
- Lumens: 820lm
- Beam Angle: 120°
- IP Rating: IP20
- PCB: 3oz
- CRI: >80
- Lamp Expectancy: >50000hrs
- Wiring: Parallel
- Dimmable: Yes
- LED Chip Type: 2216
- No. Chips Per Metre: 180
- Maximum Length: 5000mm
- Cutting Increments: 33mm
- Mounting: Aluminium Profile or Heat Sink
- Operating Temperature: 0 - +60° Celcius
- Ambient Temperature: -20° - +50° Celcius
- Warranty: 3 Years Replacement*

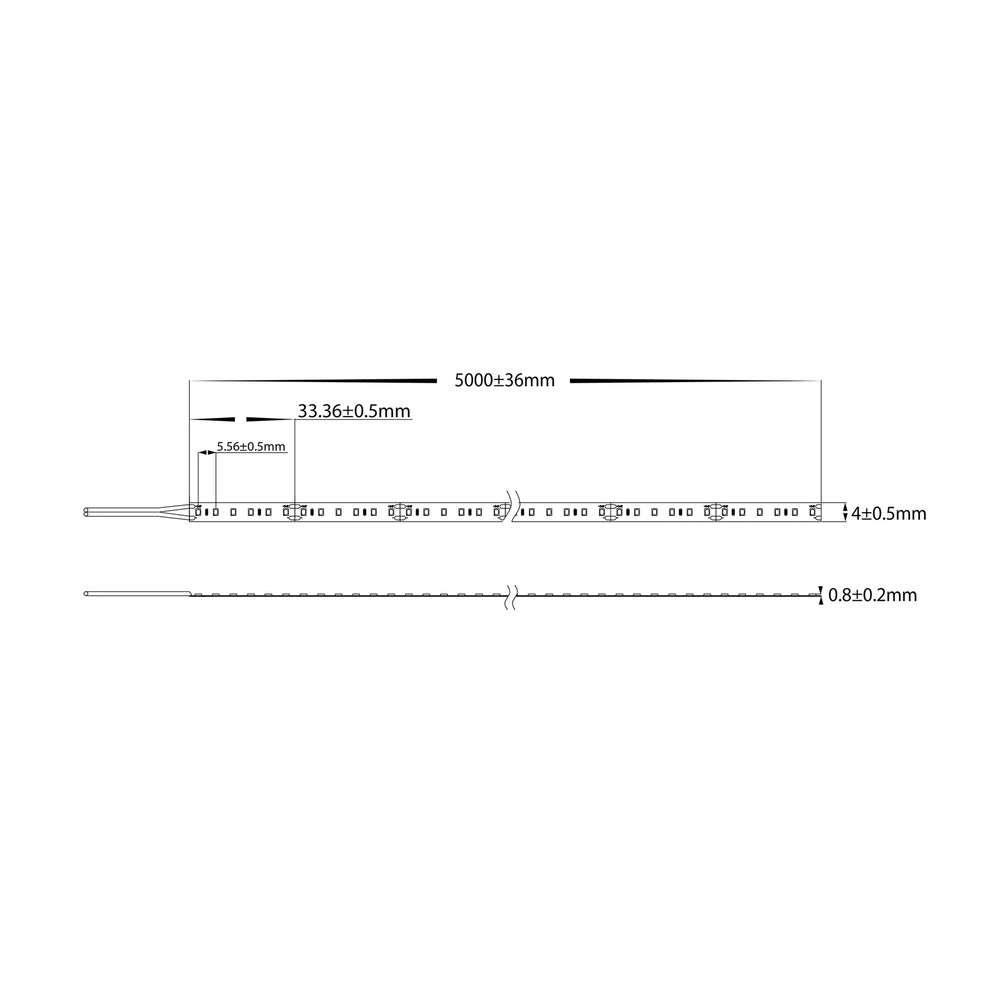

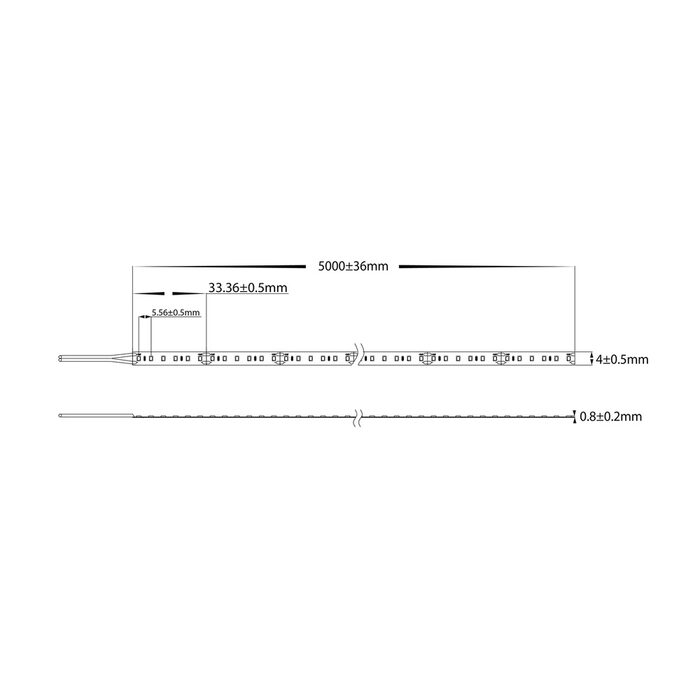

Dimensions
- Length: 30000mm
- Width: 4mm
- Height: 0.8mm
Click to view technical specifications:
