Description

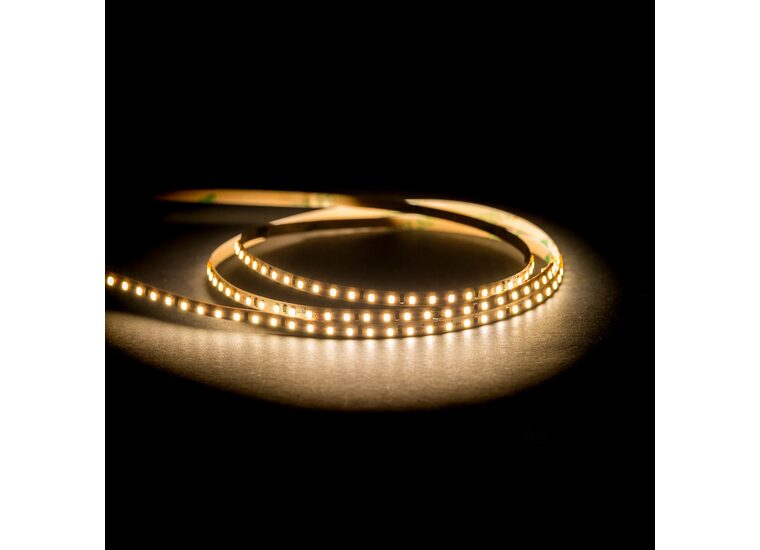

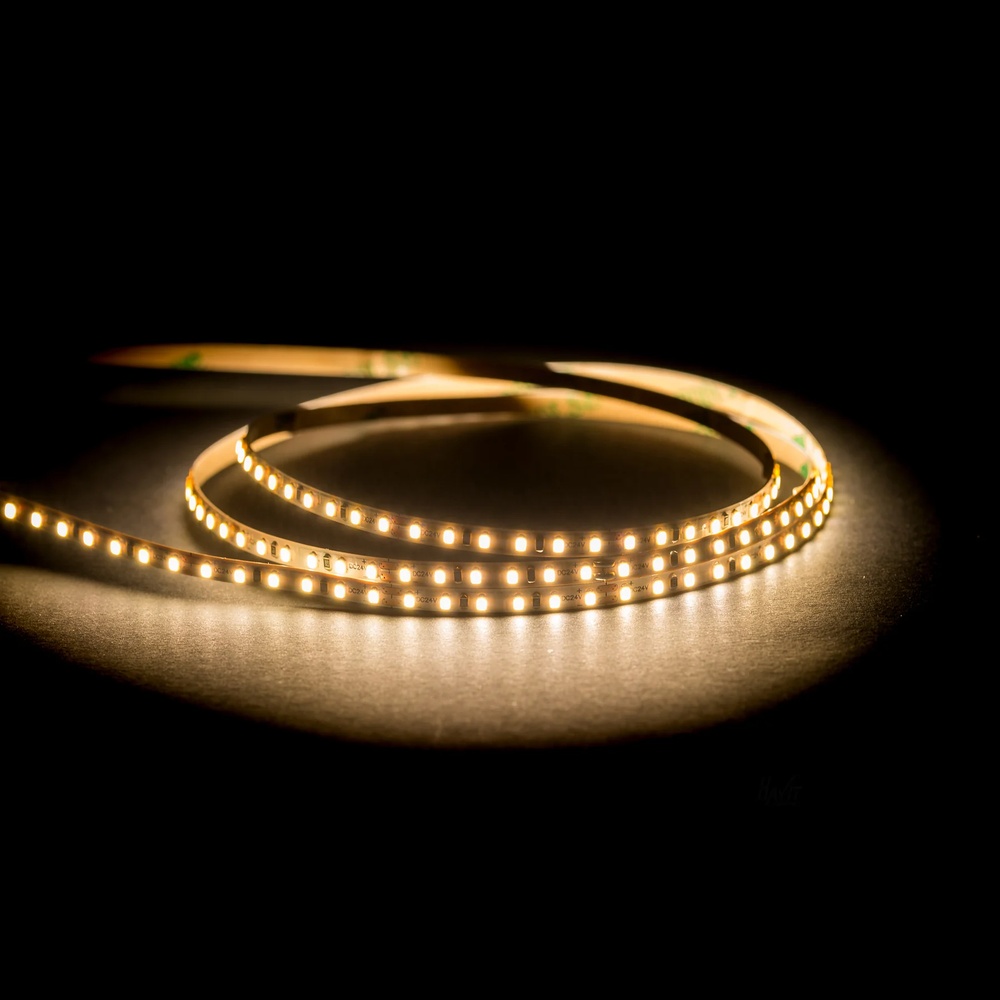

The HV9733-IP20-180-4K is a compact Micro LED Strip designed to provide bright and consistent 4000K neutral white illumination.
With 180 LED chips per metre and an ultra-slim 4mm profile, it is ideal for cabinetry, shelving, display lighting, joinery and architectural applications where installation space is limited.
It operates on 24V DC and produces 820 lumens per metre while consuming 9.6W per metre.
Specifications
- Input Voltage: 24V DC power supply required (not included)
- Wattage: 9.6W
- Colour Temp: 4000K
- Lumens: 820lm
- Beam Angle: 120°
- IP Rating: IP20
- PCB: 3oz
- CRI: >80
- Lamp Expectancy: >50000hrs
- Wiring: Parallel
- Dimmable: Yes
- LED Chip Type: 2216
- No. Chips Per Metre: 180
- Maximum Length: 5000mm
- Cutting Increments: 33mm
- Mounting: Aluminium Profile or Heat Sink
- Operating Temperature: 0 - +60° Celcius
- Ambient Temperature: -20° - +50° Celcius
- Warranty: 3 Years Replacement*
- Sold Per Metre
Dimensions
- Length: 1000mm
- Width: 4mm
- Height: 0.8mm
Click to view technical specifications:
