Description

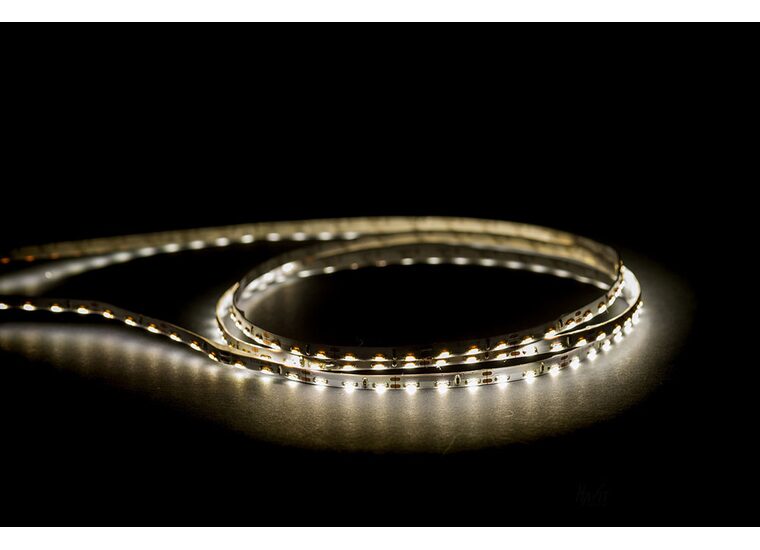

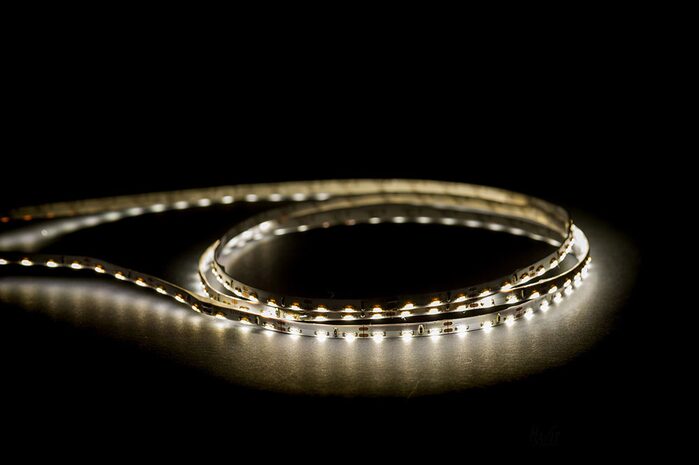

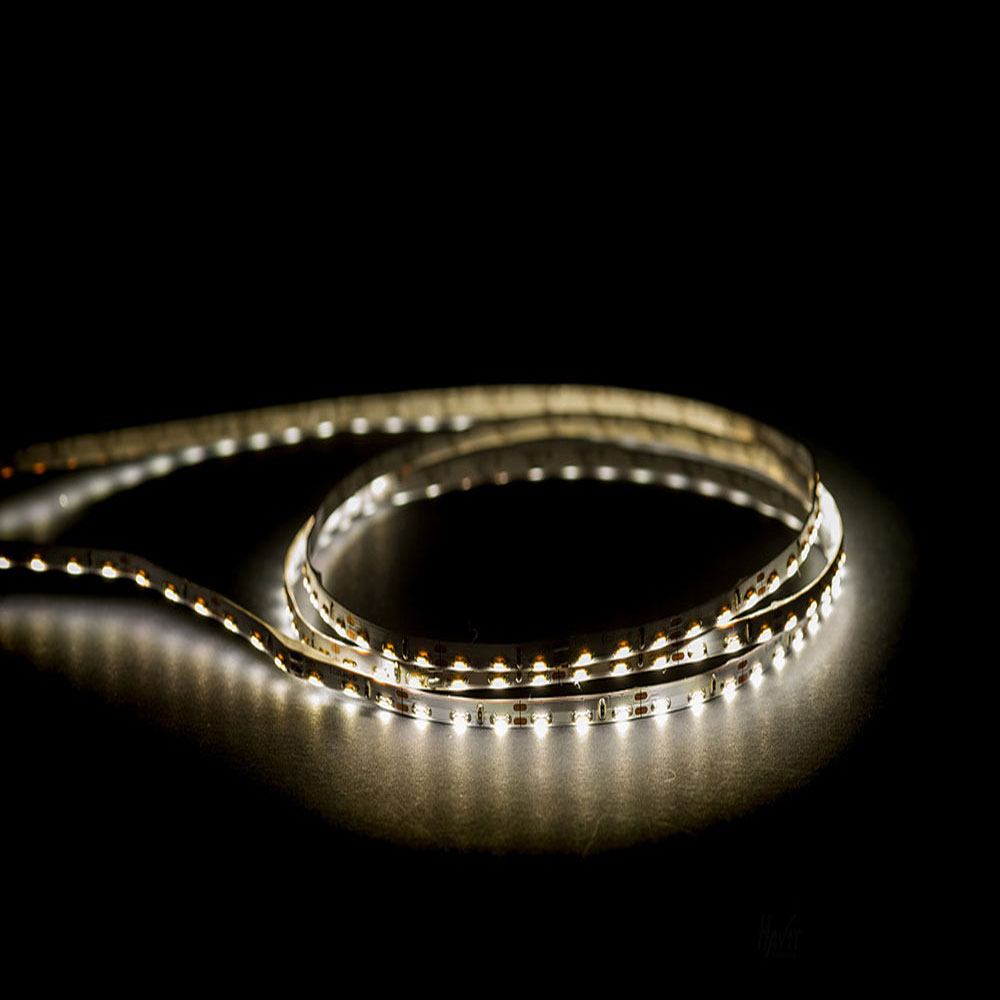

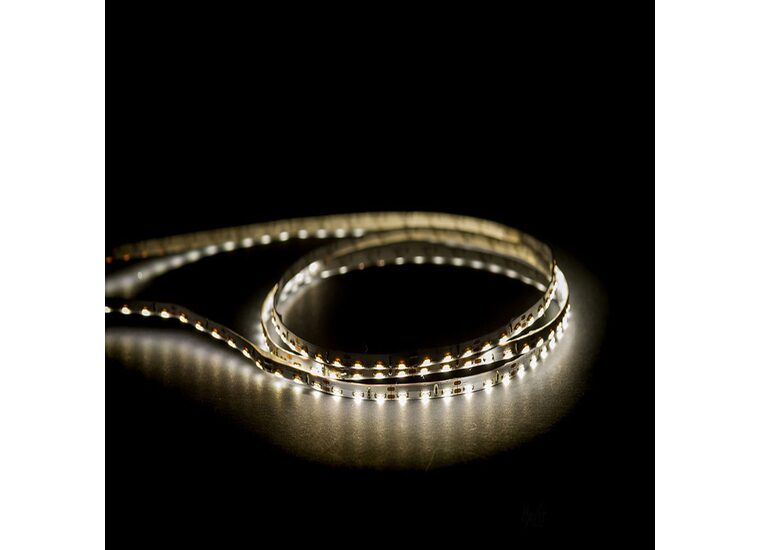

The HV9723-IP20-96SM-5K-20M is a premium 20 metre roll of 7.7W per metre Side Mounted LED Strip designed to deliver smooth 5500K Cool White illumination where conventional top-emitting LED strips cannot be used.
Featuring 96 side-emitting LEDs per metre, it projects light horizontally, making it ideal for edge lighting, signage, curved joinery, handrails, stair lighting, display cabinets, and architectural detailing.
Operating on 24V DC, the flexible strip provides a clean, continuous lighting effect and is perfect for long-run installations requiring indirect or side-emitting illumination.
For optimum performance and heat dissipation, it is recommended for use with compatible aluminium LED profiles.
Specifications
- Input Voltage: 12V DC power supply required (not included)
- Wattage: 7.7W
- Colour Temp: 5500K
- Lumens: 540lm
- IP Rating: IP20
- Beam Angle: 120°
- PCB: 3oz
- CRI: >80
- Lamp Expectancy: >50000hrs
- Wiring: Parallel
- Dimmable: Yes
- LED Chip Type: 335
- No. of Chips Per Metre: 96
- Maximum Cut Length: 5000mm
- Cutting Increments: 3mm
- Mounting: Aluminium Profile or Heat Sink
- Operating Temperature: 0 - +60° Celsius
- Ambient Temperature: -20° - +50° Celsius
- Warranty: 3 Years Replacement
Dimensions
- Length: 20000mm
- Width: 6mm
- Height: 0.8mm
Click to view technical specifications:
