Description

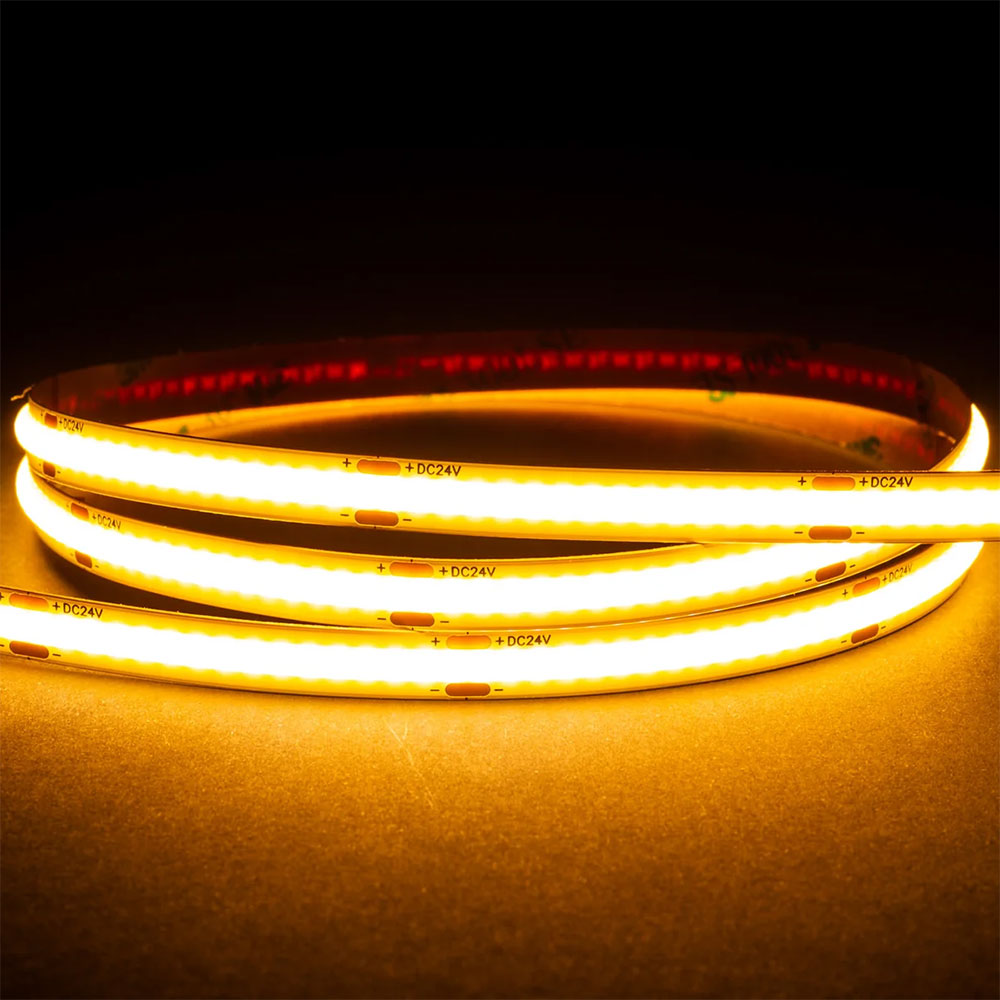

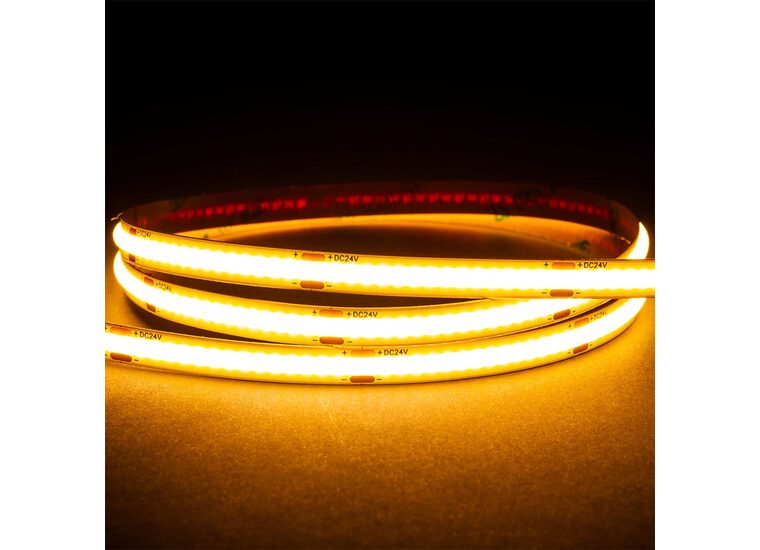

The HV9760-IP20-320-3K is a premium 4.8W per metre COB (Chip-on-Board) Dotless LED Strip designed to deliver seamless 3000K Warm White illumination for high-end architectural and decorative lighting applications.
Featuring 320 COB LEDs per metre, it produces a continuous, dot-free line of light without visible LED hotspots, making it ideal for exposed installations and shallow aluminium profiles.
Operating on 24V DC, the flexible strip is perfect for under-cabinet lighting, shelving, joinery, cove lighting, display lighting, and feature lighting in residential, commercial, retail, and hospitality environments.
Specifications
- Input Voltage: 24V DC power supply required (not included)
- Wattage: 4.8W
- Colour Temp: 3000K
- Lumens: 400lm
- IP Rating: IP20
- Beam Angle: 120°
- PCB: 3oz
- Wiring: Parallel
- Lamp Expectancy: <50000hrs
- CRI: >90
- Dimmable: Yes
- LED Chip Type: COB
- Compatible Driver: Non-Dimmable, Triac, 0-1/10v & Dali
- No. of Chips Per Metre: 320
- Maximum Cut Length: 5000mm
- Cutting Increments: 50mm
- Mounting: Aluminium Profile or Heat Sink
- Operating Temperature: 0 - +60° Celsius
- Ambient Temperature: -20° - +50° Celsius
- Warranty: 3 Years Replacement
- Sold per metre
Dimensions
- Height: 2mm
- Width: 8mm
- Length: 1000mm
