Description

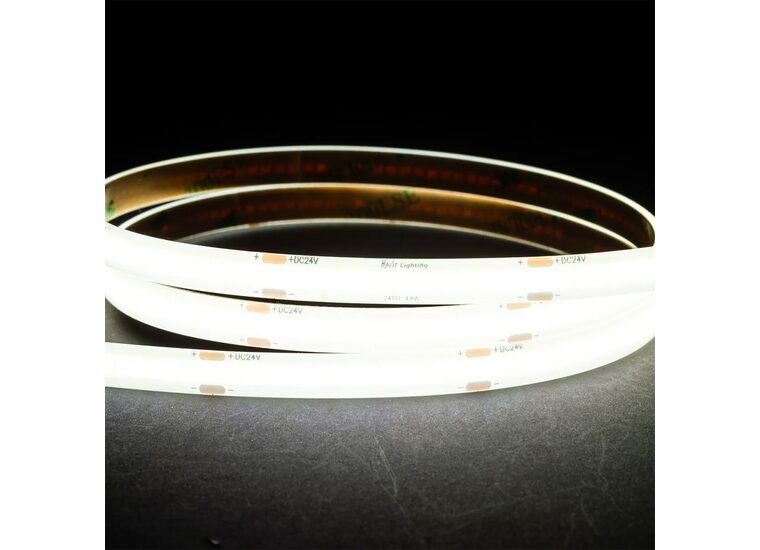

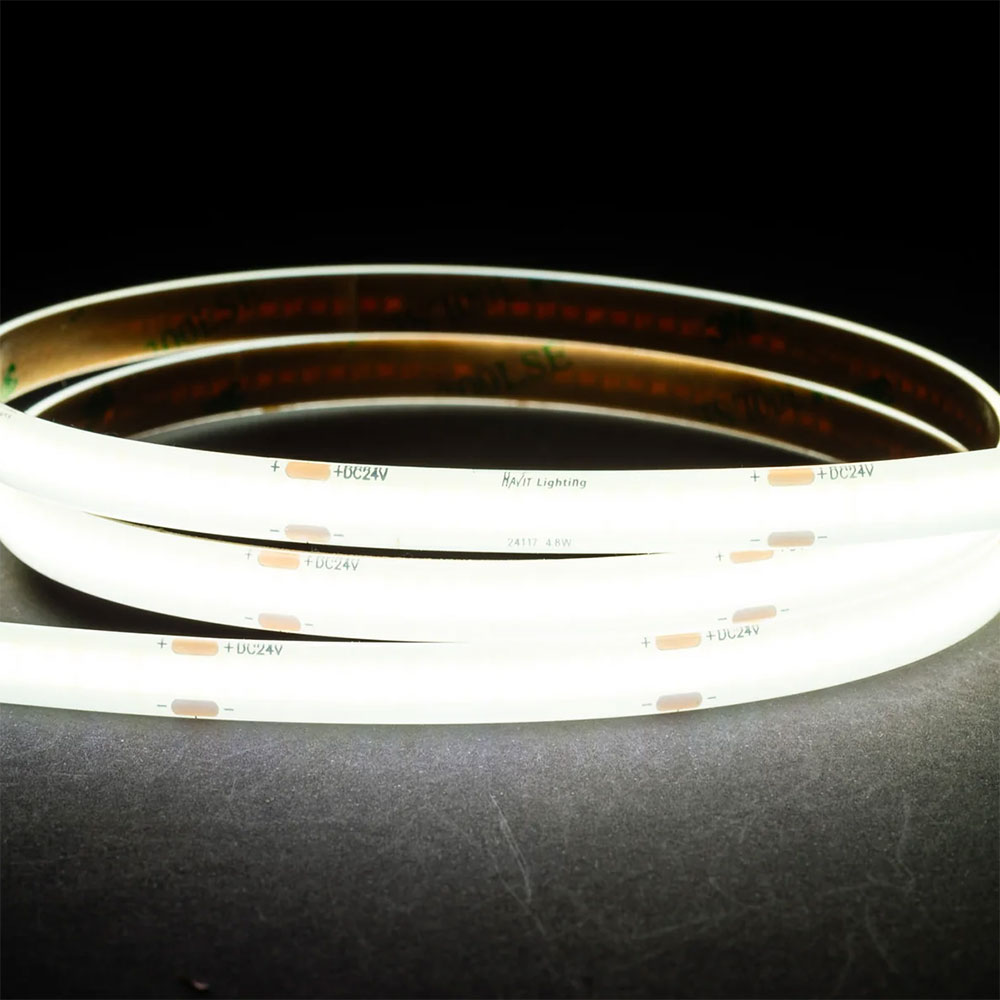

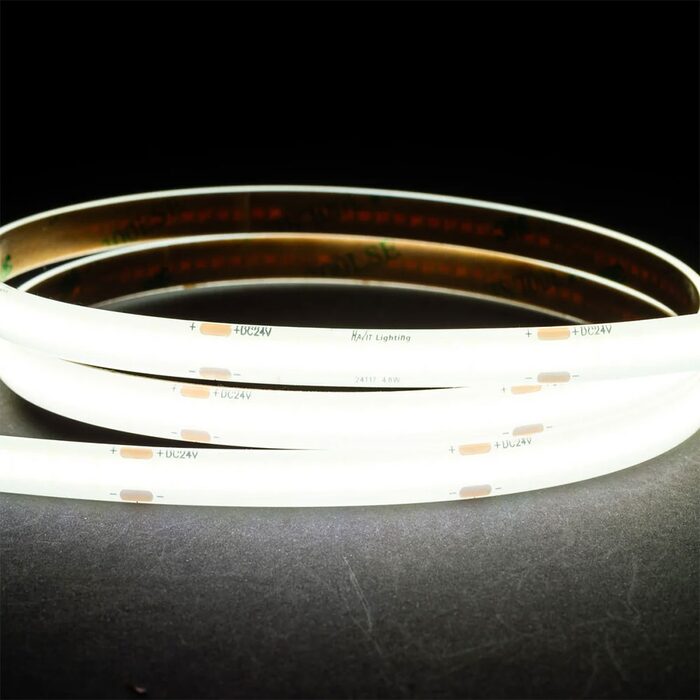

The HV9760-IP54-320-5K-10M is a premium 10 metre roll of 4.8W per metre COB (Chip-on-Board) Dotless LED Strip designed to deliver bright 5500K Cool White illumination for indoor and protected outdoor architectural lighting applications.
Featuring advanced COB technology with 320 LEDs per metre, it produces a continuous, dot-free line of light without visible LED hotspots, making it ideal for exposed installations and shallow aluminium profiles.
The IP54 protective silicone coating provides increased resistance against dust and water splashes, making it suitable for kitchens, bathrooms, covered outdoor areas, and other environments requiring additional protection.
Operating on 24V DC, the flexible strip is ideal for long-run under-cabinet lighting, shelving, joinery, cove lighting, display lighting, task lighting, and feature lighting.
Specifications
- Input Voltage: 24V DC power supply required (not included)
- Wattage: 4.8W
- Colour Temp: 5500K
- Lumens: 410lm
- IP Rating: IP54
- Beam Angle: 120°
- PCB: 3oz
- Wiring: Parallel
- Lamp Expectancy: <50000hrs
- CRI: >90
- Dimmable: Yes
- LED Chip Type: COB
- Compatible Driver: Non-Dimmable, Triac, 0-1/10v & Dali
- No. of Chips Per Metre: 320
- Maximum Cut Length: 5000mm
- Cutting Increments: 50mm
- Mounting: Aluminium Profile or Heat Sink
- Operating Temperature: 0 - +60° Celsius
- Ambient Temperature: -20° - +50° Celsius
- Warranty: 3 Years Replacement

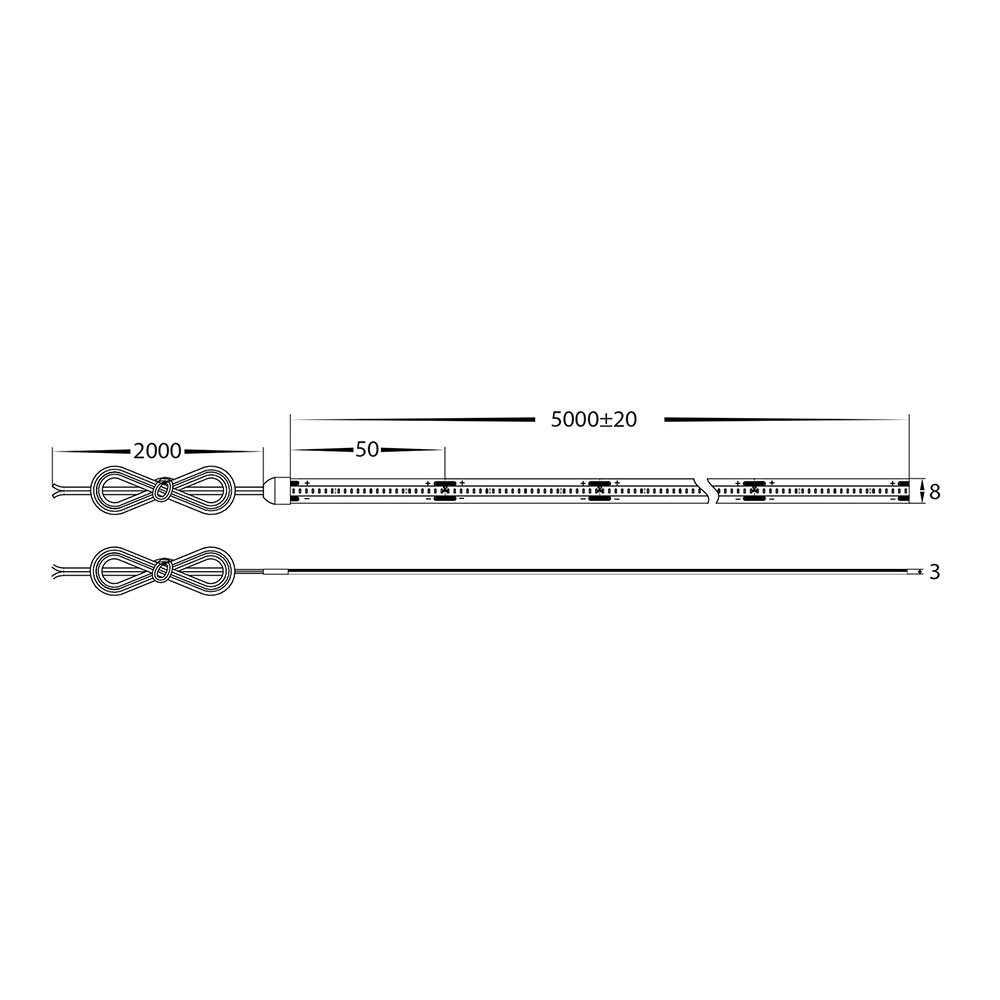

Dimensions
- Length: 10000mm
- Width: 8mm
- Height: 3mm
