Description

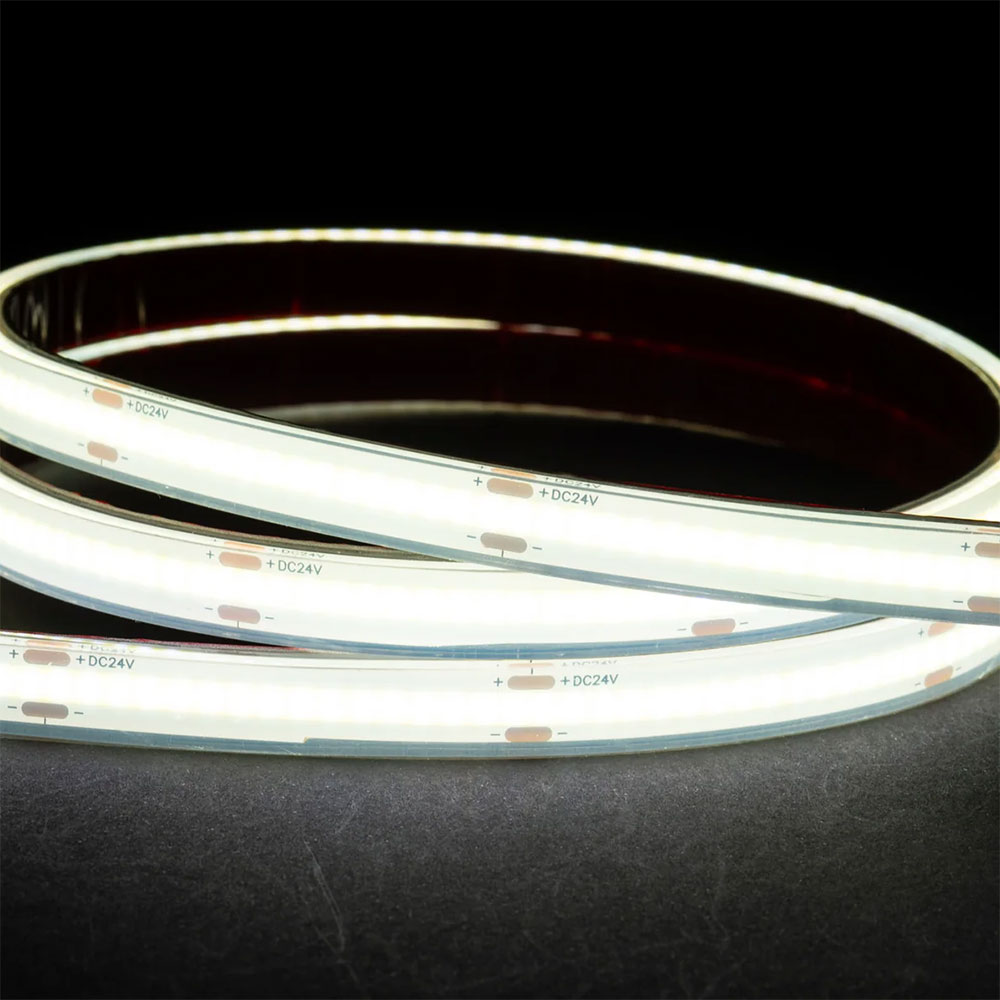

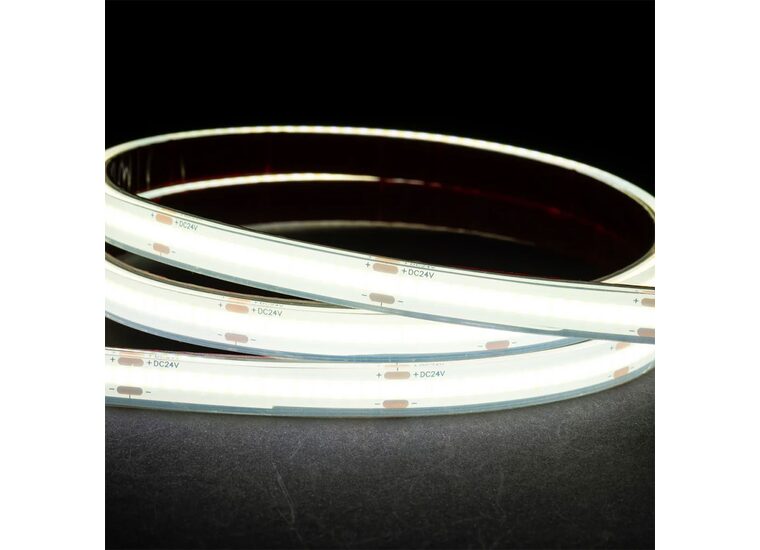

The HV9760-IP67-320-5K is a premium 4.8W per metre COB (Chip-on-Board) Dotless LED Strip designed to deliver bright 5500K Cool White illumination for indoor and outdoor architectural lighting applications.
Featuring advanced COB technology with 320 LEDs per metre, it produces a continuous, dot-free line of light without visible LED hotspots, making it ideal for exposed installations and premium linear lighting designs.
Encased in a durable IP67 silicone housing, the strip is protected against dust and temporary water immersion, making it suitable for outdoor landscapes, facades, bathrooms, wet areas, and other demanding environments.
Operating on 24V DC, it is perfect for under-cabinet lighting, feature lighting, pathways, architectural detailing, landscape lighting, and task lighting applications.
Specifications
- Input Voltage: 24V DC power supply required (not included)
- Wattage: 4.8W
- Colour Temp: 5500K
- Lumens: 410lm
- IP Rating: IP67
- Beam Angle: 120°
- PCB: 3oz
- Wiring: Parallel
- Lamp Expectancy: <50000hrs
- CRI: >90
- Dimmable: Yes
- LED Chip Type: COB
- Compatible Driver: Non-Dimmable, Triac, 0-1/10v & Dali
- No. of Chips Per Metre: 320
- Maximum Cut Length: 5000mm
- Cutting Increments: 50mm
- Mounting: Aluminium Profile or Heat Sink
- Operating Temperature: 0 - +60° Celsius
- Ambient Temperature: -20° - +50° Celsius
- Warranty: 3 Years Replacement
- Sold Per Metre
Dimensions
- Length: 1000mm
- Width: 12mm
- Height: 4mm
