Description

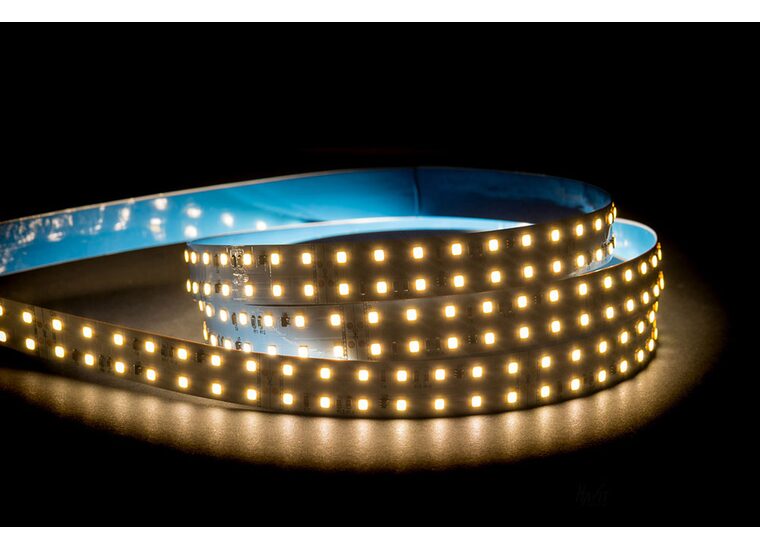

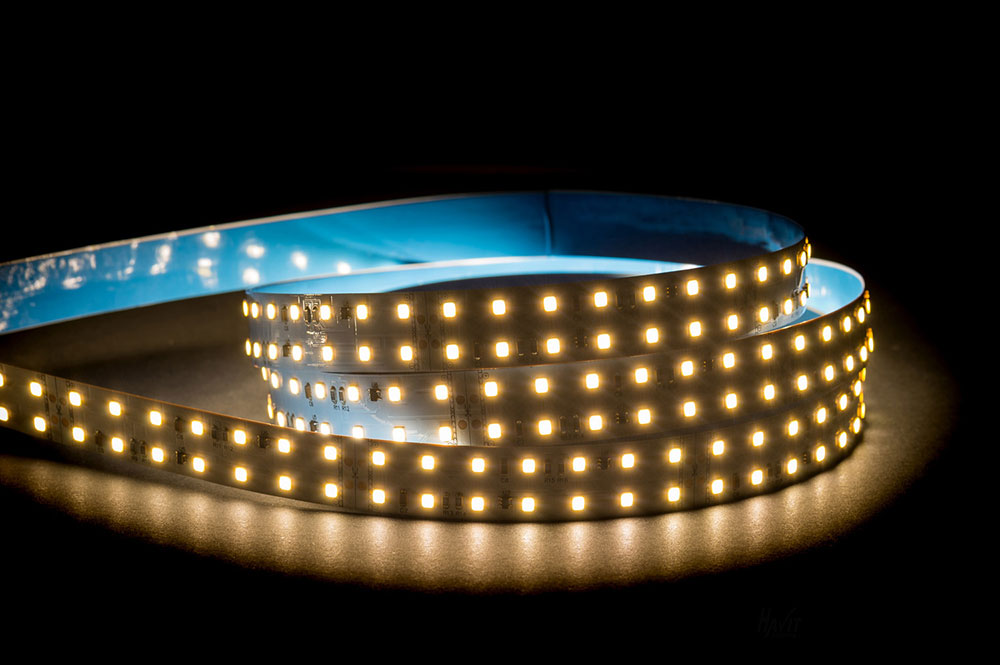

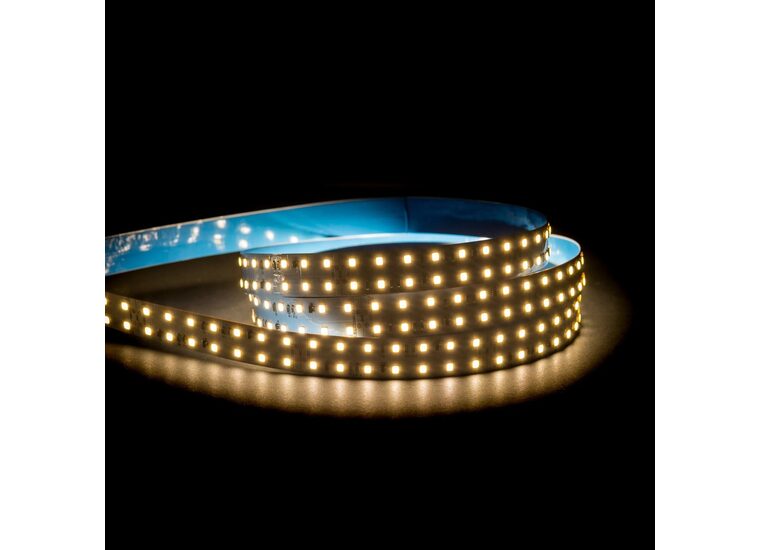

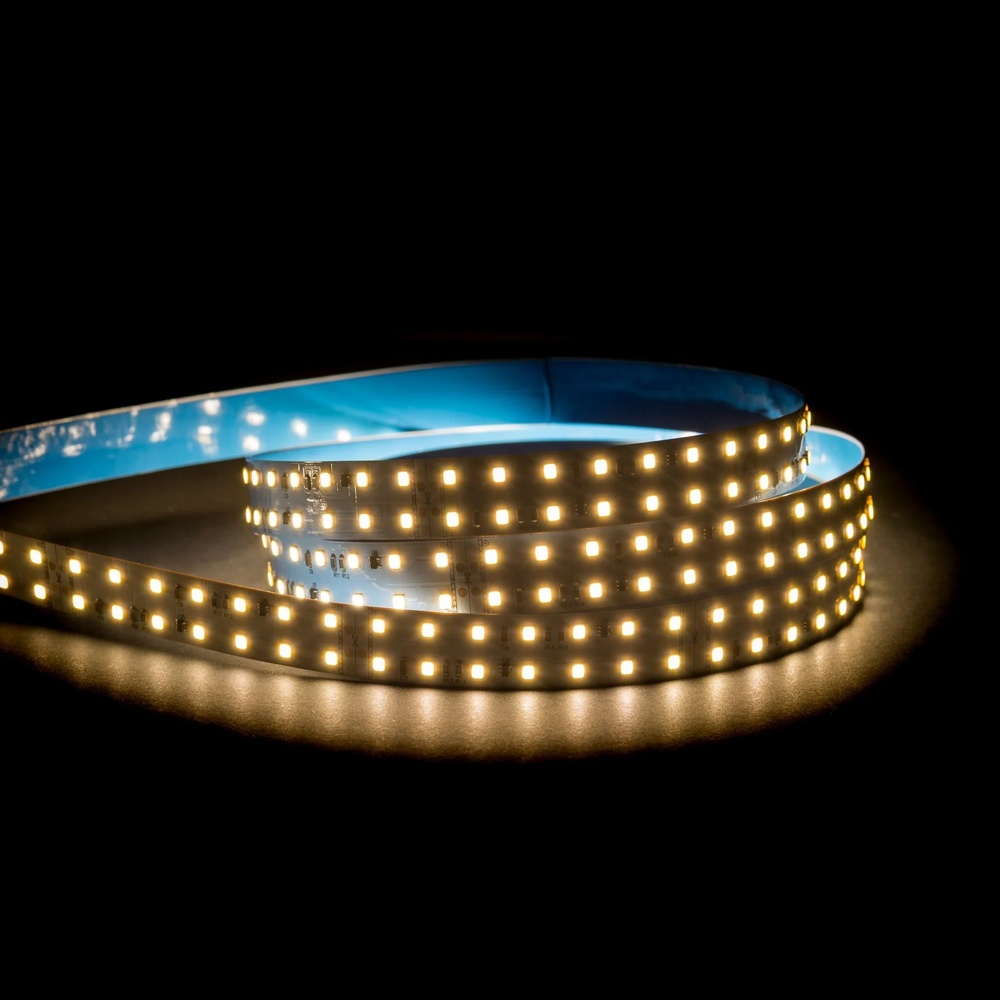

The HV9783-IP20-168-4K-20M is a premium 20 metre roll of 32.6W per metre LED Strip designed to deliver exceptionally bright 4000K Natural White illumination for high-end architectural and commercial lighting applications.
Featuring 168 high-output LEDs per metre, it provides outstanding brightness with smooth, even light distribution, making it ideal for premium linear lighting installations.
Operating on 24V DC, this flexible LED strip is perfect for long-run under-cabinet lighting, shelving, joinery, cove lighting, retail displays, hospitality venues, commercial interiors, and feature lighting projects requiring maximum light output.
For optimum performance and heat dissipation, it is recommended for installation in compatible aluminium LED profiles.
Specifications
- Input Voltage: 24V DC power supply required (not included)
- Wattage: 32.6W
- Colour Temp: 4000K
- Lumens: 3750lm
- IP Rating: IP20
- Beam Angle: 120°
- PCB: 3oz
- CRI: >80
- Lamp Expectancy: >50000hrs
- Wiring: Parallel
- Dimmable: Yes
- LED Chip Type: 2835
- No. of Chips Per Metre: 168
- Maximum Cut Length: 5000mm
- Cutting Increments: 83mm
- Mounting: Aluminium Profile or Heat Sink
- Operating Temperature: 0 - +60° Celsius
- Ambient Temperature: -20° - +50° Celsius
- Warranty: 3 Years Replacement
- Sold by the Metre
Dimensions
- Length: 20000mm
- Width: 19mm
- Height: 1.9mm
Click to view technical specifications:
