Description

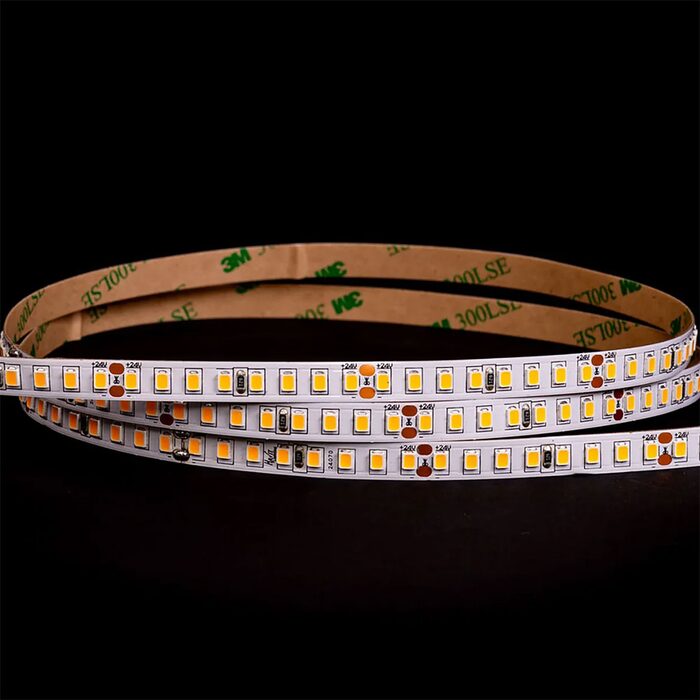

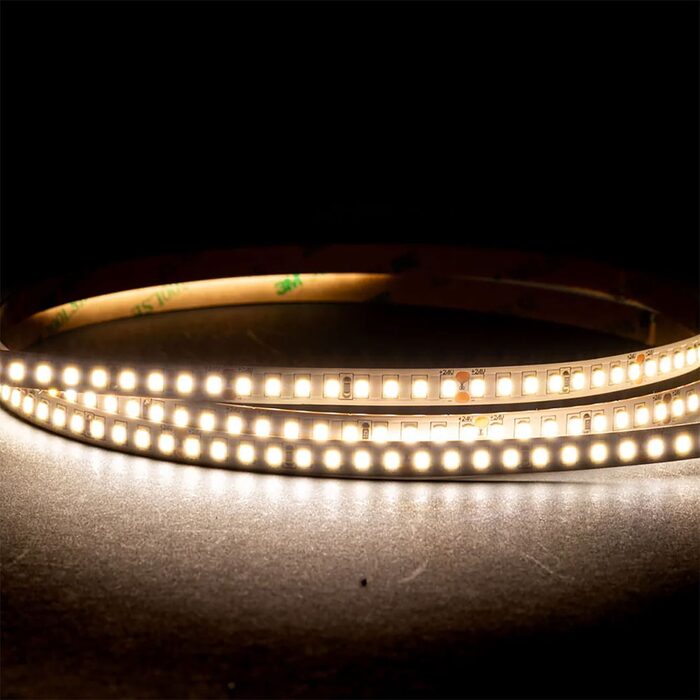

The HV9783-IP20-160-5K is a high-quality 2W per metre LED Strip designed to deliver bright 5500K Cool White illumination for indoor architectural and decorative lighting applications.
Featuring a high-density 160 LEDs per metre, it produces smooth, continuous light output with minimal LED spotting.
Its flexible design makes it ideal for under-cabinet lighting, shelving, display cabinets, cove lighting, joinery, task lighting, and other residential or commercial installations.
Operating on 24V DC, the strip can be cut at designated intervals for customised installations and is compatible with a wide range of aluminium profiles for a clean, professional finish.
Specifications
- Input Voltage: 24V DC power supply required (not included)
- Wattage: 2W
- Colour Temp: 5500K
- Lumens: 280lm
- Dimmable: Yes
- IP Rating: IP20
- Beam Angle: 120°
- PCB: 3oz
- Wiring: Parallel
- Lamp Expectancy: <50000hrs
- CRI: >90
- LED Chip Type: 2835
- Compatible Driver: Non-Dimmable, Triac, 0-1/10V & Dali
- No. of Chips per Metre: 160
- Maximum Length: 5000mm
- Cutting Increments: 50mm
- Mounting: Aluminium Profile or Heat Sink
- Operating Temperature: 0 - +60° Celcius
- Ambient Temperature: -20° - +50° Celcius
- Warranty: 3 Years Replacement
- Sold by the Metre
Dimensions
- Length: 1000mm
- Width: 8mm
- Height: 2mm
