Description

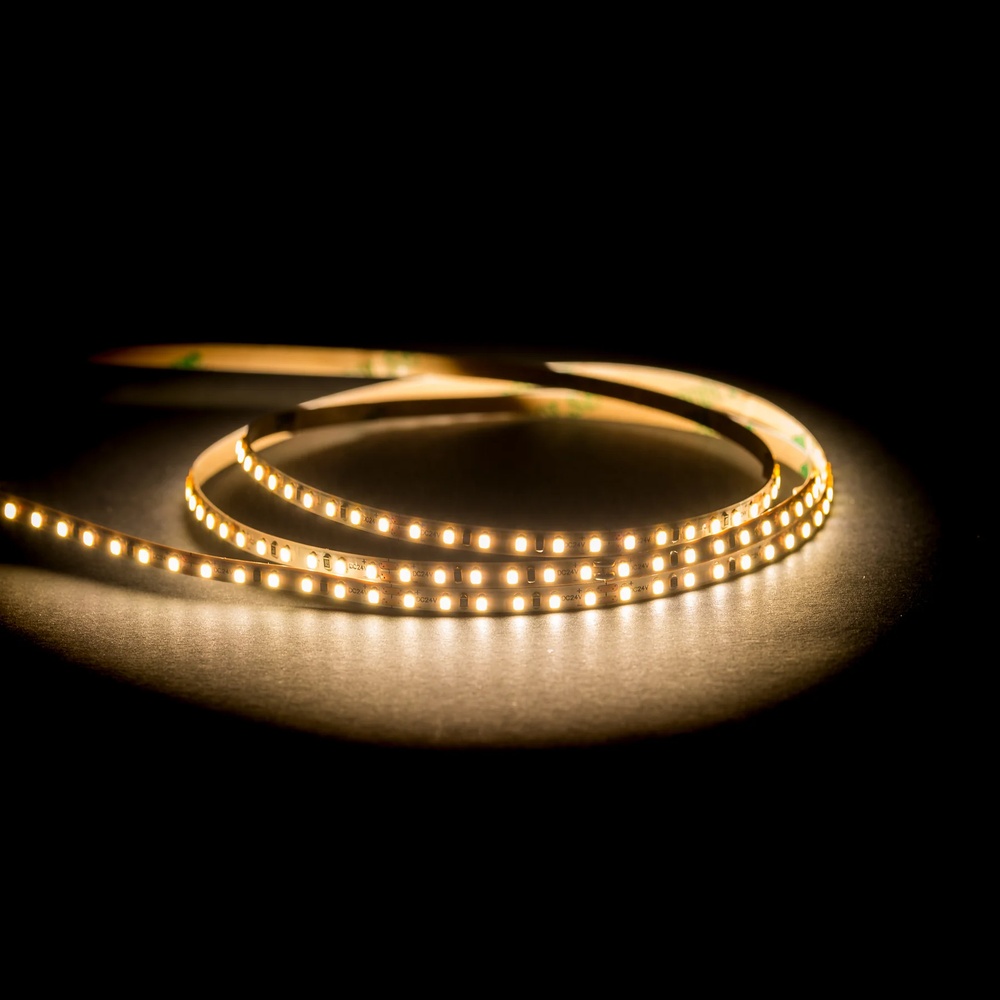

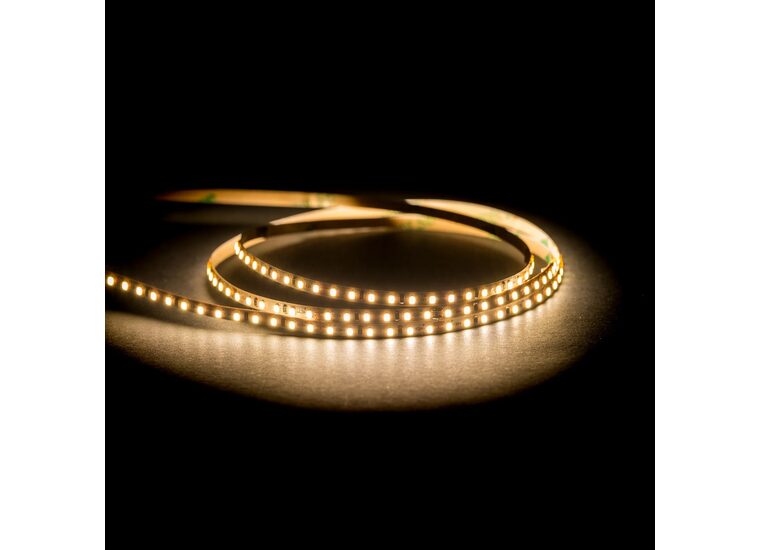

The HV9735-IP20-240-4K-30M is a high-output Micro LED Strip supplied in a 30 metre roll, designed to provide bright, smooth and consistent 4000K neutral white illumination.
Featuring 240 LED chips per metre and a slim micro profile, it is ideal for cabinetry, shelving, display lighting, joinery and architectural applications where powerful and uniform lighting is required within a compact installation.
Specifications
- Input Voltage: 24V DC power supply required (not included)
- Wattage: 19.2W
- Colour Temp: 4000K
- Lumens: 1600lm
- Beam Angle: 120°
- IP Rating: IP20
- PCB: 3oz
- CRI: >80
- Lamp Expectancy: >50000hrs
- Wiring: Parallel
- Dimmable: Yes
- LED Chip Type: 2216
- No. Chips Per Metre: 240
- Maximum Length: 5000mm
- Cutting Increments: 25mm
- Mounting: Aluminium Profile or Heat Sink
- Operating Temperature: 0 - +60° Celcius
- Ambient Temperature: -20° - +50° Celcius
- Warranty: 3 Years Replacement*

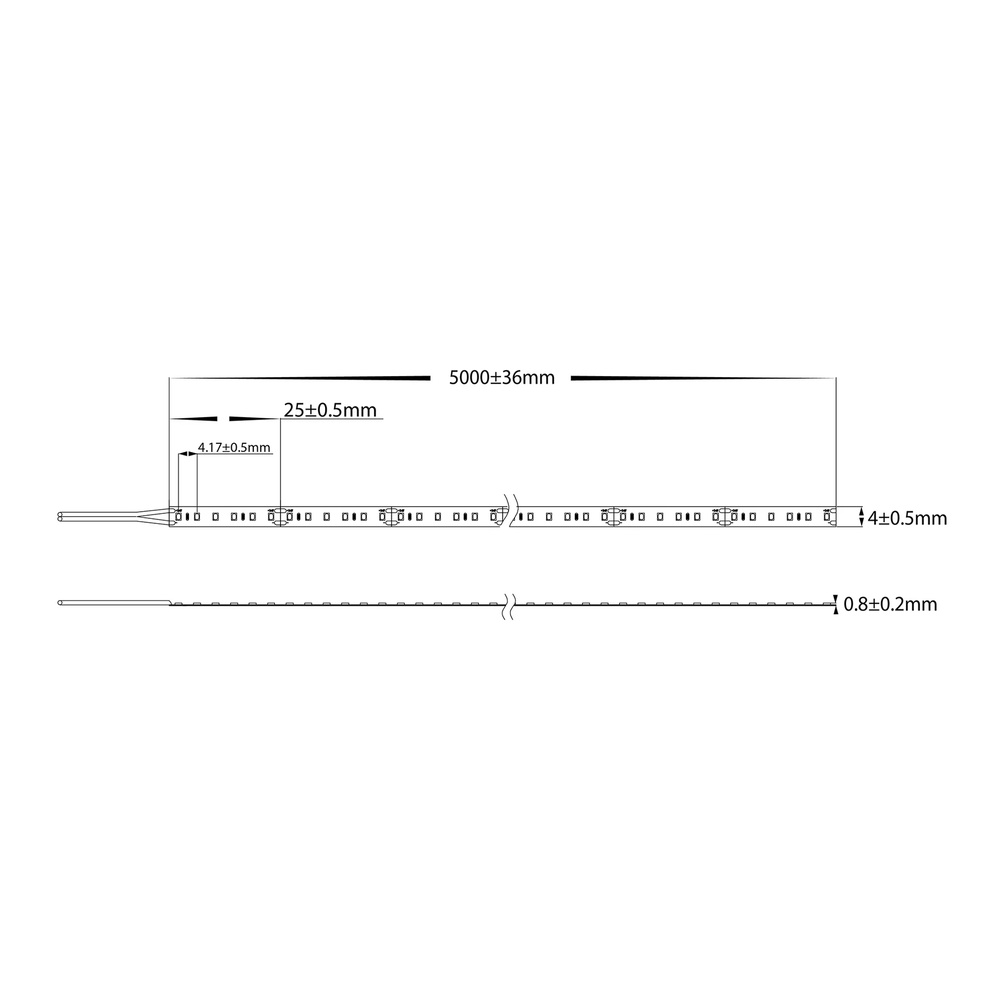

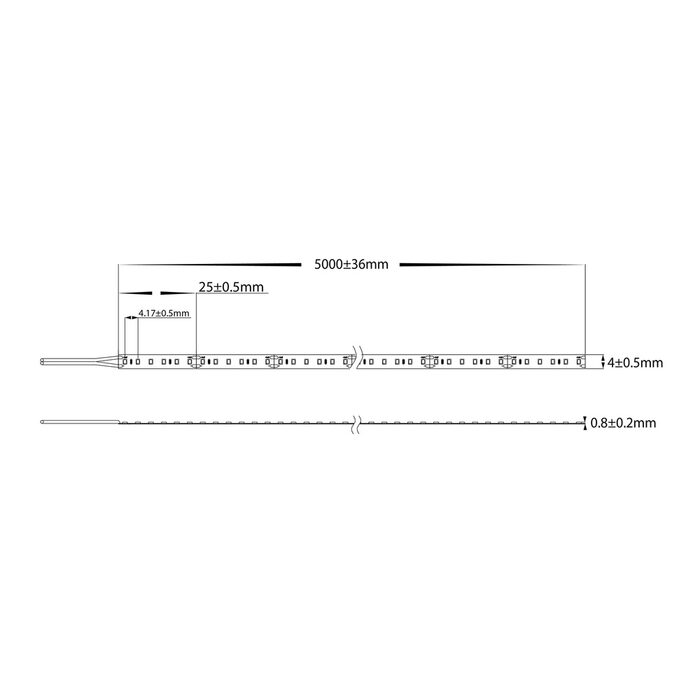

Dimensions
- Length: 30000mm
- Width: 4mm
- Height: 0.8mm
