Description

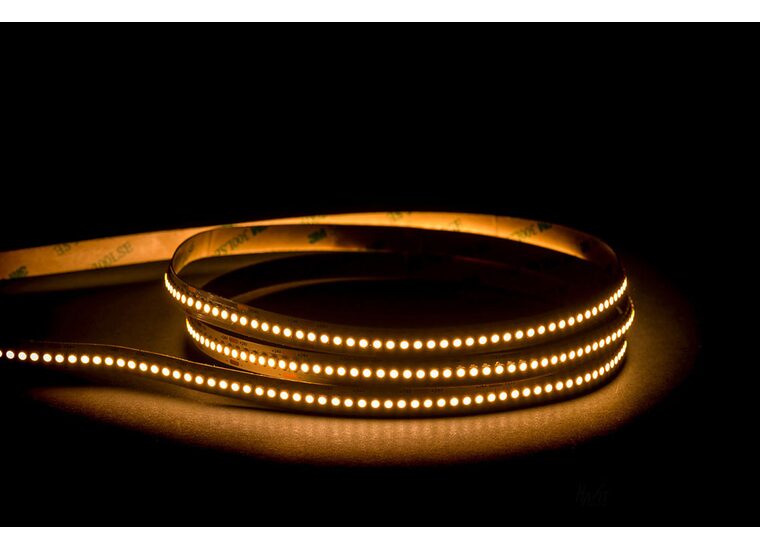

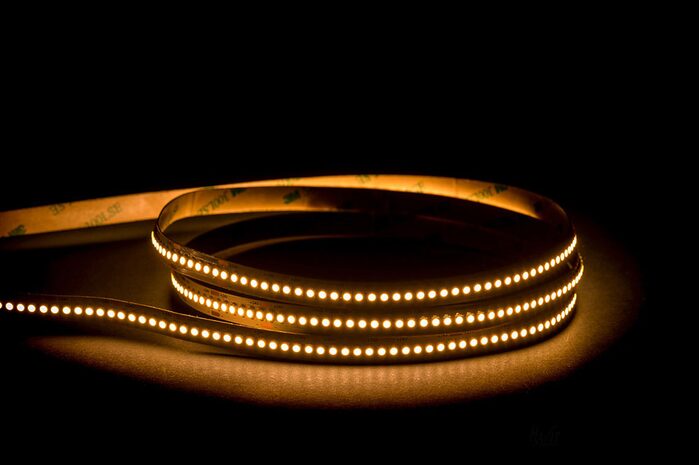

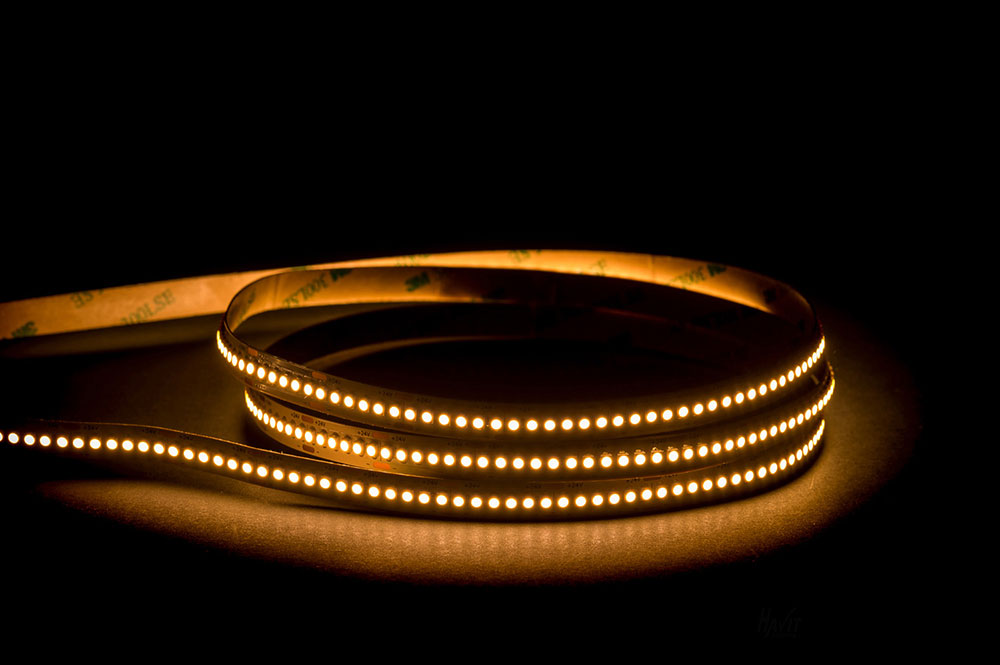

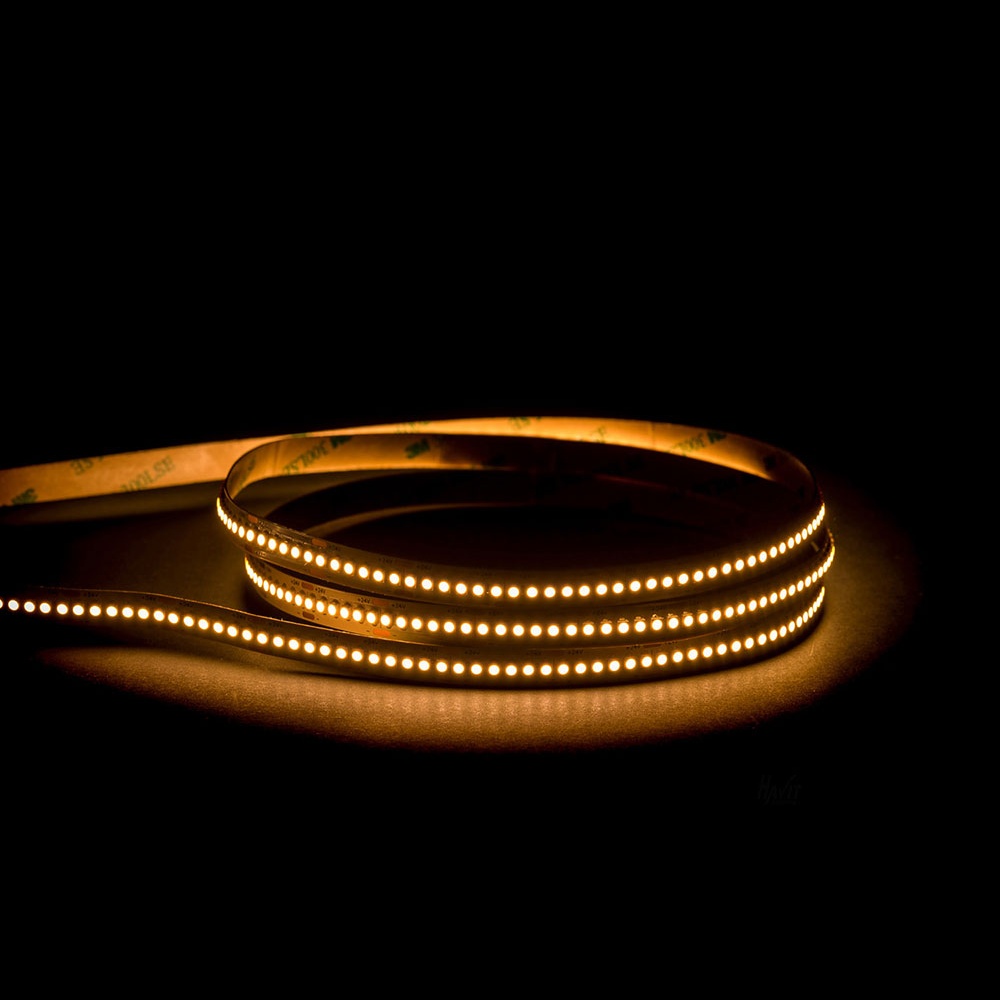

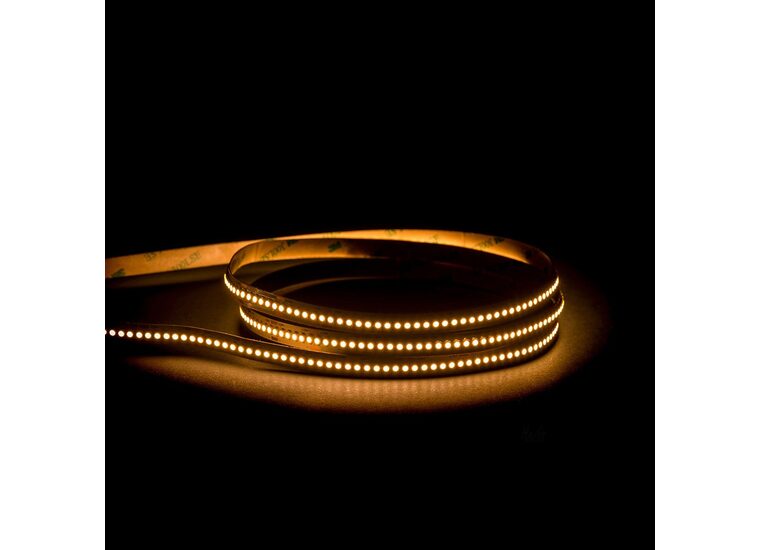

The HV9723-IP20-240-3K-1-30M is a high-performance 30 metre roll of 19.2W per metre LED Strip designed to deliver bright, uniform 3000K Warm White illumination for large-scale architectural and decorative lighting applications.
Featuring a high-density 240 LEDs per metre, it produces smooth, continuous light with minimal LED spotting, making it ideal for use in aluminium profiles and premium linear lighting installations.
Operating on 24V DC, the flexible strip is perfect for long-run under-cabinet lighting, shelving, joinery, cove lighting, display lighting, retail fit-outs, hospitality venues, and commercial projects where high light output is required.
Specifications
- Input Voltage: 24V DC power supply required (not included)
- Wattage: 19.2W
- Colour Temp: 3000K
- Lumens: 1560lm
- IP Rating: IP20
- Beam Angle: 120°
- PCB: 3oz
- CRI: >80
- Lamp Expectancy: >50000hrs
- Wiring: Parallel
- Dimmable: Yes
- LED Chip Type: 3528
- No. of Chips Per Metre: 240
- Maximum Cut Length: 5000mm
- Cutting Increments: 25mm
- Mounting: Aluminium Profile or Heat Sink
- Operating Temperature: 0 - +60° Celsius
- Ambient Temperature: -20° - +50° Celsius
- Warranty: 3 Years Replacement

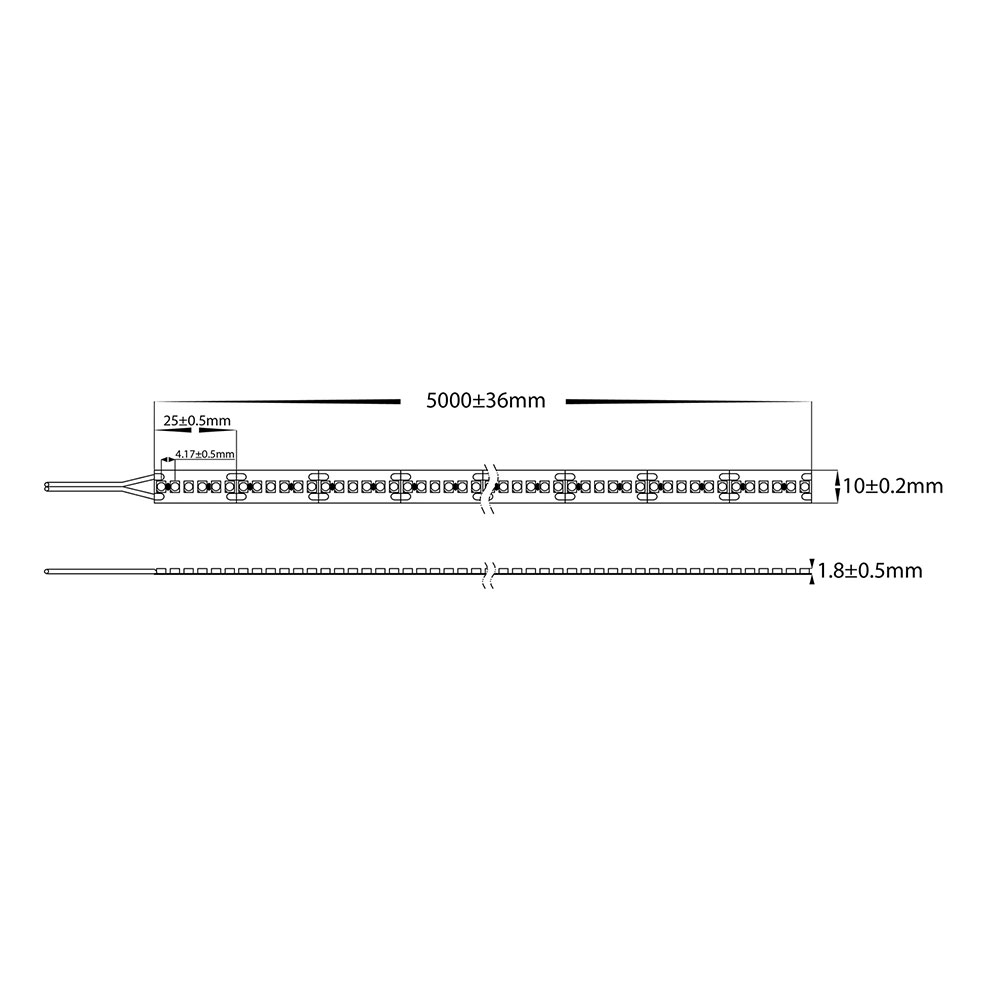

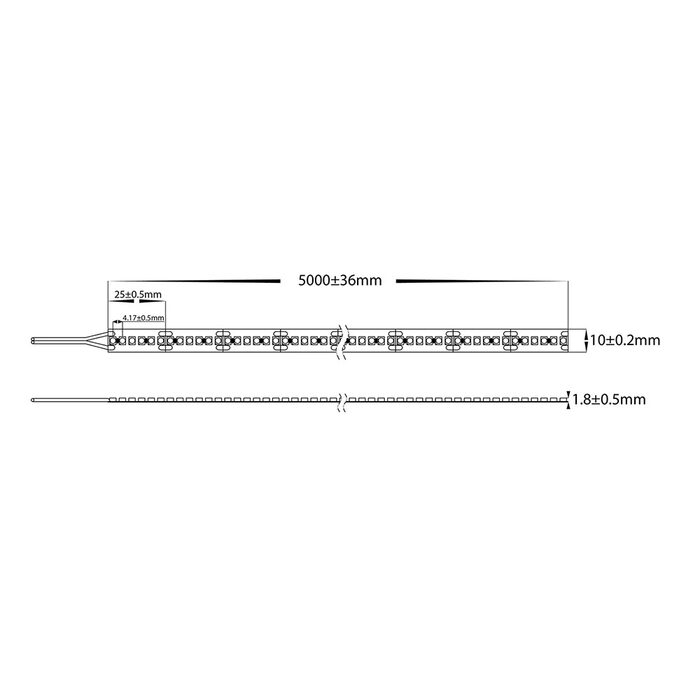

Dimensions
- Length: 30000mm
- Width: 10mm
- Height: 1.8mm
