Description

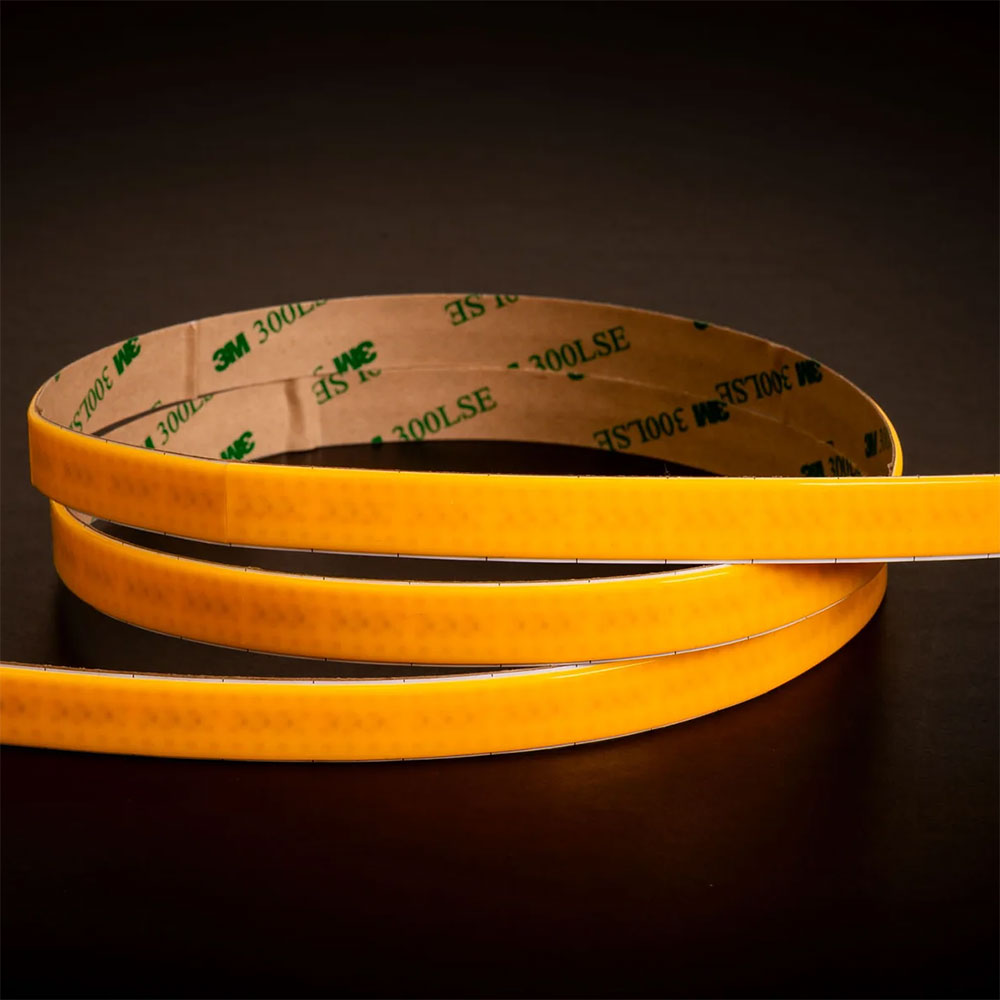

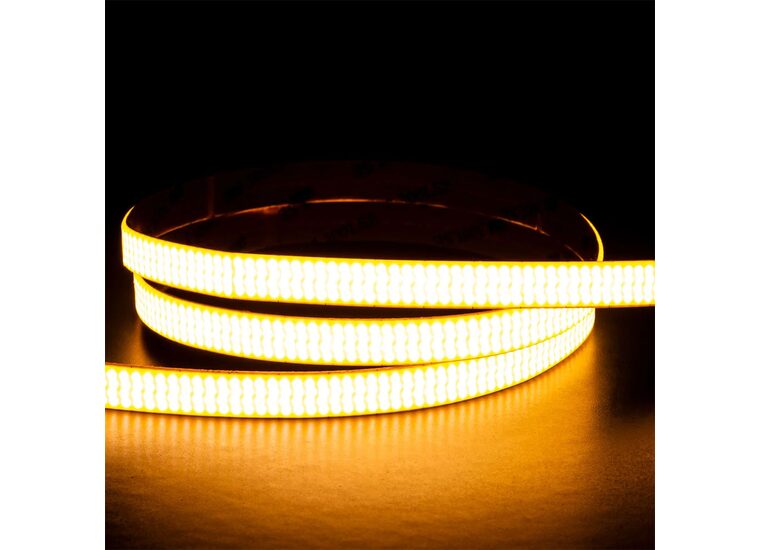

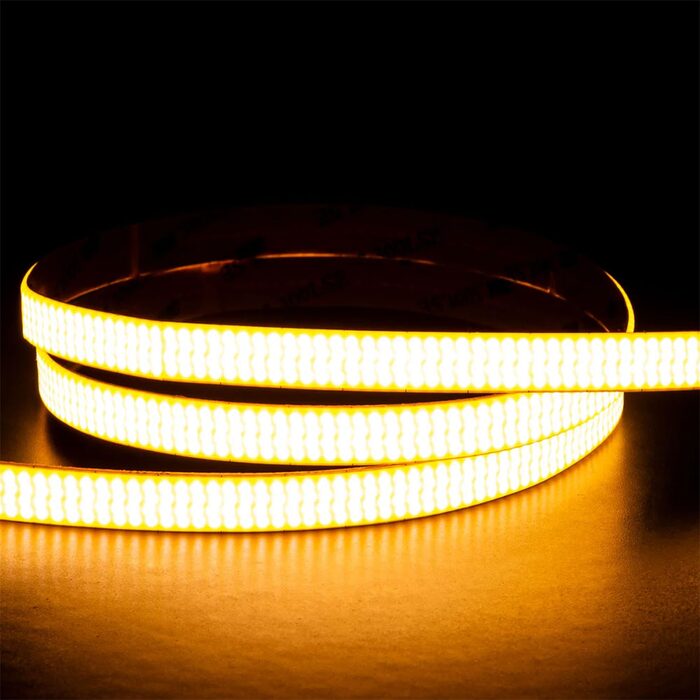

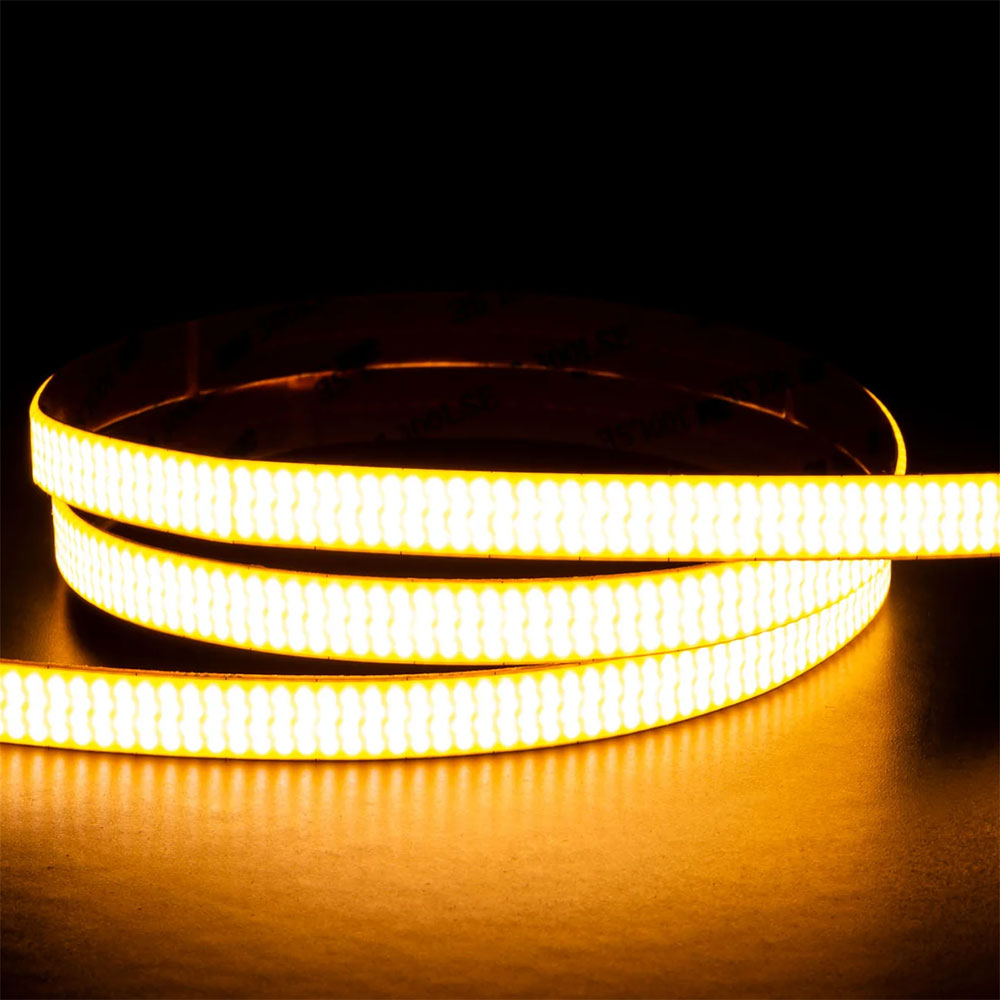

The HV9761-IP20-1152-3K-30M is a premium 30 metre roll of 14W per metre COB (Chip-on-Board) LED Strip designed to deliver seamless 3000K Warm White illumination for large-scale architectural and decorative lighting applications.
Featuring advanced COB technology with an ultra-high density of 1152 LEDs per metre, it produces an exceptionally smooth, continuous line of light without visible LED hotspots, making it ideal for exposed installations and shallow aluminium profiles.
Operating on 24V DC, the flexible strip is perfect for long-run under-cabinet lighting, shelving, joinery, cove lighting, display lighting, retail fit-outs, hospitality venues, offices, and premium residential or commercial projects where superior lighting quality is required.
Specifications
- Input Voltage: 24V DC power supply required (not included)
- Wattage: 14W
- Colour Temp: 3000K
- Lumens: 1680lm
- IP Rating: IP20
- Beam Angle: 120°
- PCB: 3oz
- Wiring: Parallel
- Lamp Expectancy: >50000hrs*
- CRI: >90
- Dimmable: Yes
- LED Chip Type: COB
- SDCM: <4
- Compatible Driver: Non-Dimmable, Triac, 0-1/10v & Dali
- No. of Chips Per Metre: 1152
- Maximum Cut Length: 5000mm
- Cutting Increments: 20.67mm
- Mounting: Aluminium Profile or Heat Sink
- Operating Temperature: 0 - +60° Celsius
- Ambient Temperature: -20° - +50° Celsius
- Warranty: 3 Years Replacement*
Dimensions
- Length: 30000mm
- Width: 10mm
- Height: 2mm
