Description

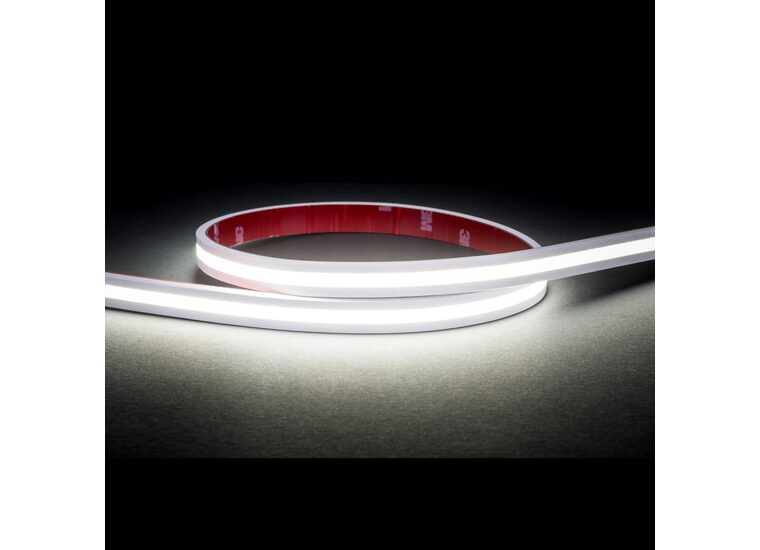

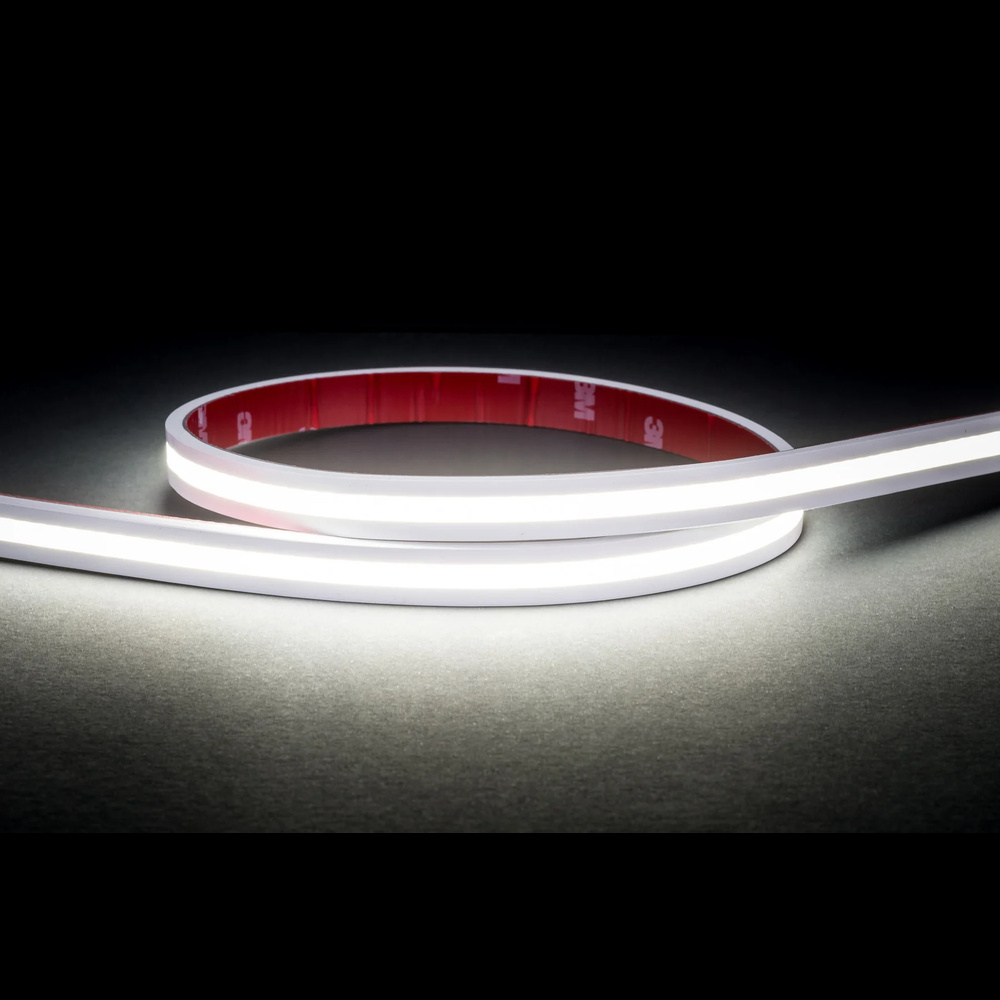

The HV9769-IP67-280-5K-20M is a high-performance flexible LED strip supplied in a convenient 20 metre roll, designed to deliver smooth and consistent cool white illumination.
Operating at 14.4W per metre on a 24V DC supply, it produces a bright 5500K cool white light, ideal for residential, commercial and architectural lighting applications where clear and crisp illumination is required.
With an IP67 rating, the LED strip provides excellent protection against dust and moisture, making it suitable for both indoor and outdoor installations.
The 20 metre roll is ideal for larger or continuous lighting projects, while its flexible construction allows for versatile installation in accent, cove and decorative lighting applications.
Specifications
- Input Voltage: 24V DC power supply required (not included)
- Wattage: 14.4W
- Colour Temp: 5500K
- Lumens: 1300lm
- Beam Angle: 120°
- IP Rating: IP67
- PCB: 3oz
- CRI: >80
- Lamp Expectancy: >50000hrs
- Wiring: Parallel
- Dimmable: Yes
- LED Chip Type: 2220
- No. Chips per Metre: 280
- Maximum Length: 5000mm
- Cutting Increments: 25mm
- Mounting: Aluminium Profile or Heat Sink
- Operating Temperature: 0 - +60° Celcius
- Ambient Temperature: -20° - +50° Celcius
- Warranty: 3 Years Replacement*

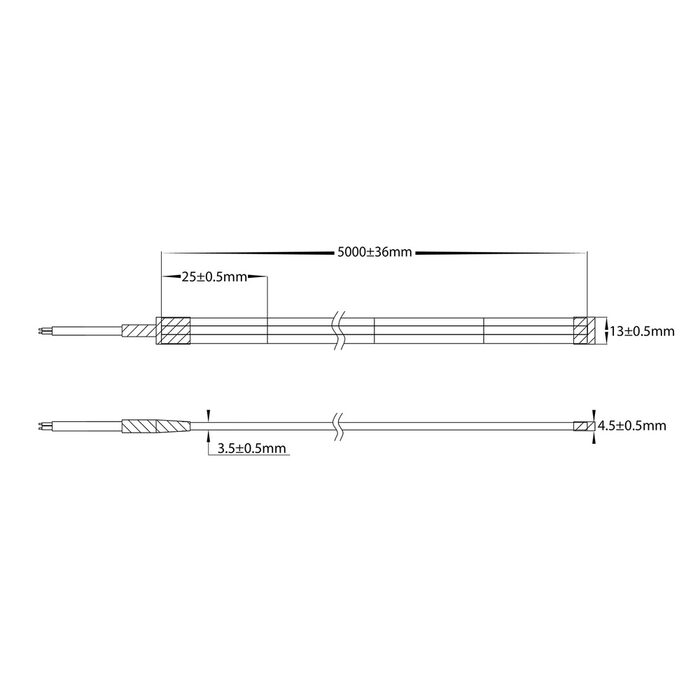

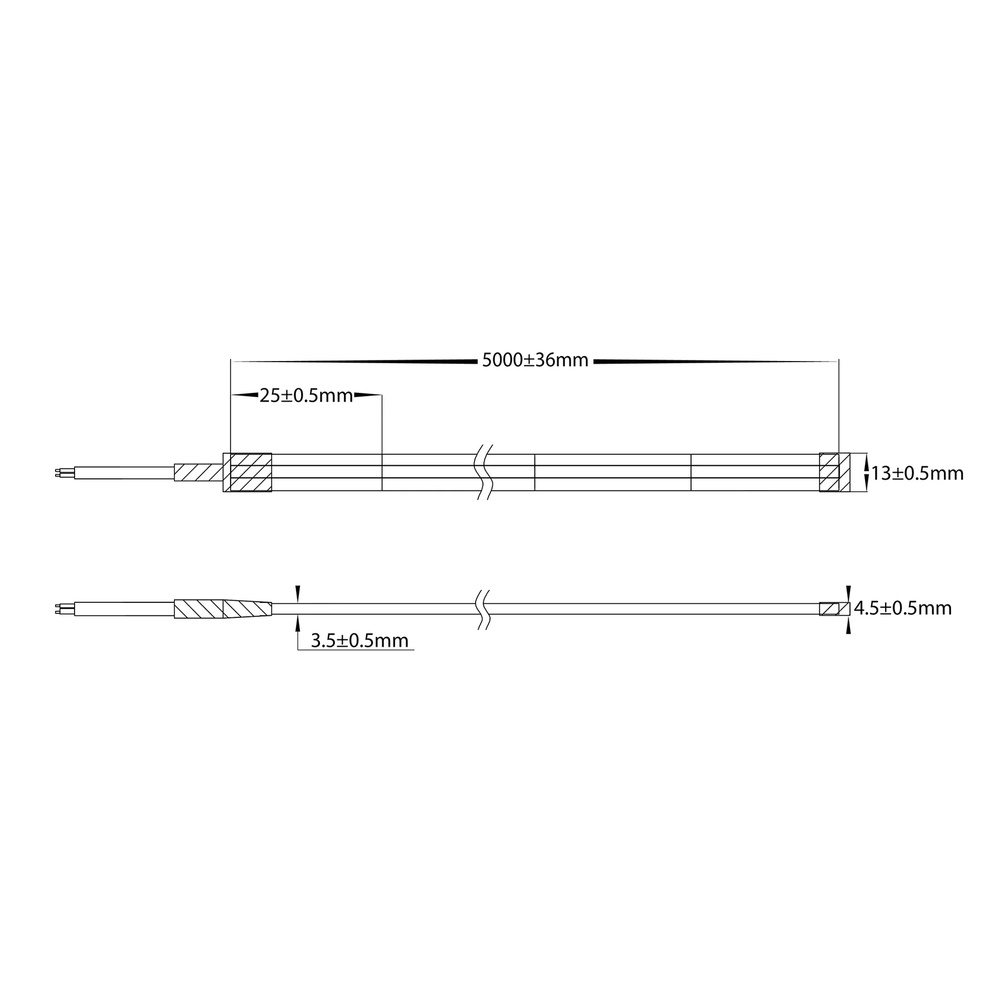

Dimensions
- Length: 20000mm
- Width: 13mm
- Height: 4.5mm
