Description

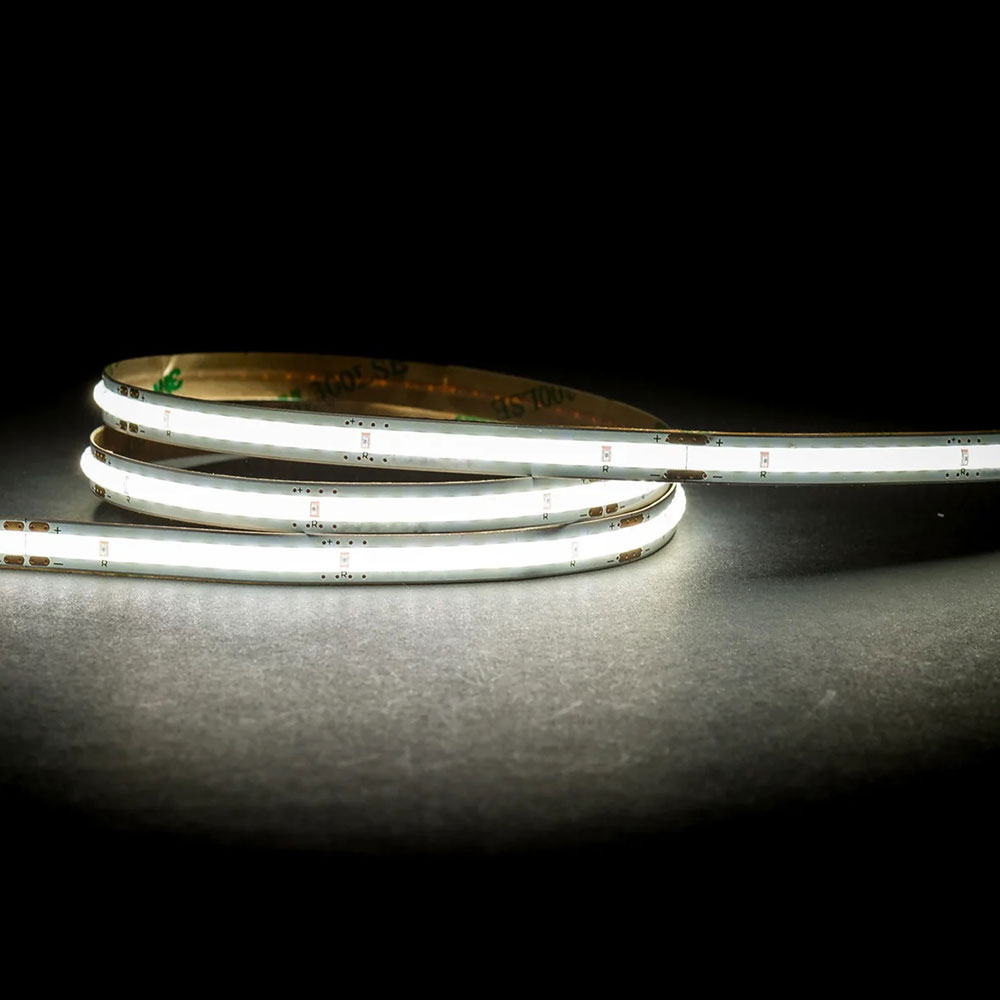

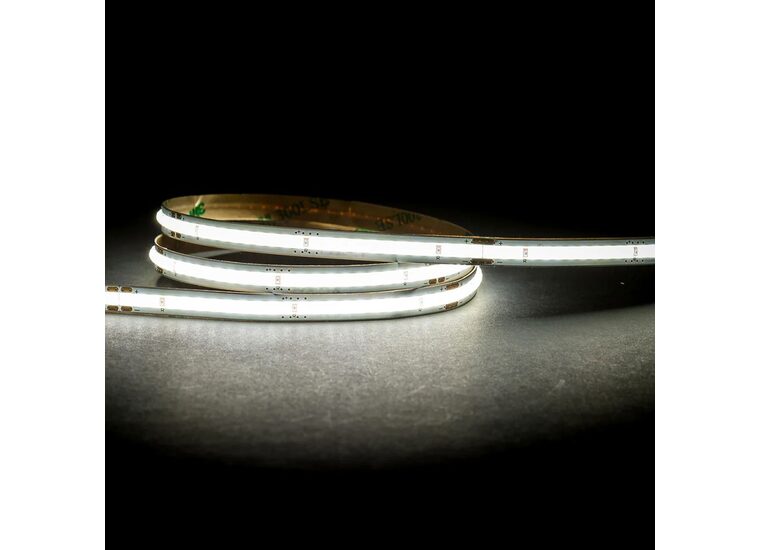

The HV9762-IP20-480-5K-30M CSP Dotless LED Strip is supplied in a convenient 30-metre roll, delivering high-output, seamless daylight white illumination for large indoor lighting projects.
Featuring advanced CSP LED technology with 480 LED chips per metre, it produces a continuous dot-free lighting effect without visible hotspots, making it ideal for architectural, cabinetry, shelving, cove, retail, task, and feature lighting applications.
Its flexible IP20 construction is designed for dry indoor environments, providing excellent brightness, colour consistency, and a clean professional finish.
Specifications
- Input Voltage: 24V DC power supply required (not included)
- Wattage: 14.4W
- Colour Temp: 5500K
- Lumens: 1340lm
- Beam Angle: 120°
- IP Rating: IP20
- PCB: 3oz
- CRI: >80
- Lamp Expectancy: >50000hrs
- Wiring: Parallel
- Dimmable: Yes
- LED Chip Type: CSP
- LEDs per Metre: 480
- Maximum Length: 5000mm
- Cutting Increments: 50mm
- Mounting: Aluminium Profile or Heat Sink
- Operating Temperature: 0 - +60° Celcius
- Ambient Temperature: -20° - +50° Cecius
- Warranty: 3 Years Replacement*
Dimensions
- Length: 30000mm
- Width: 8mm
- Height: 2mm
Click to view technical specifications:
