Description

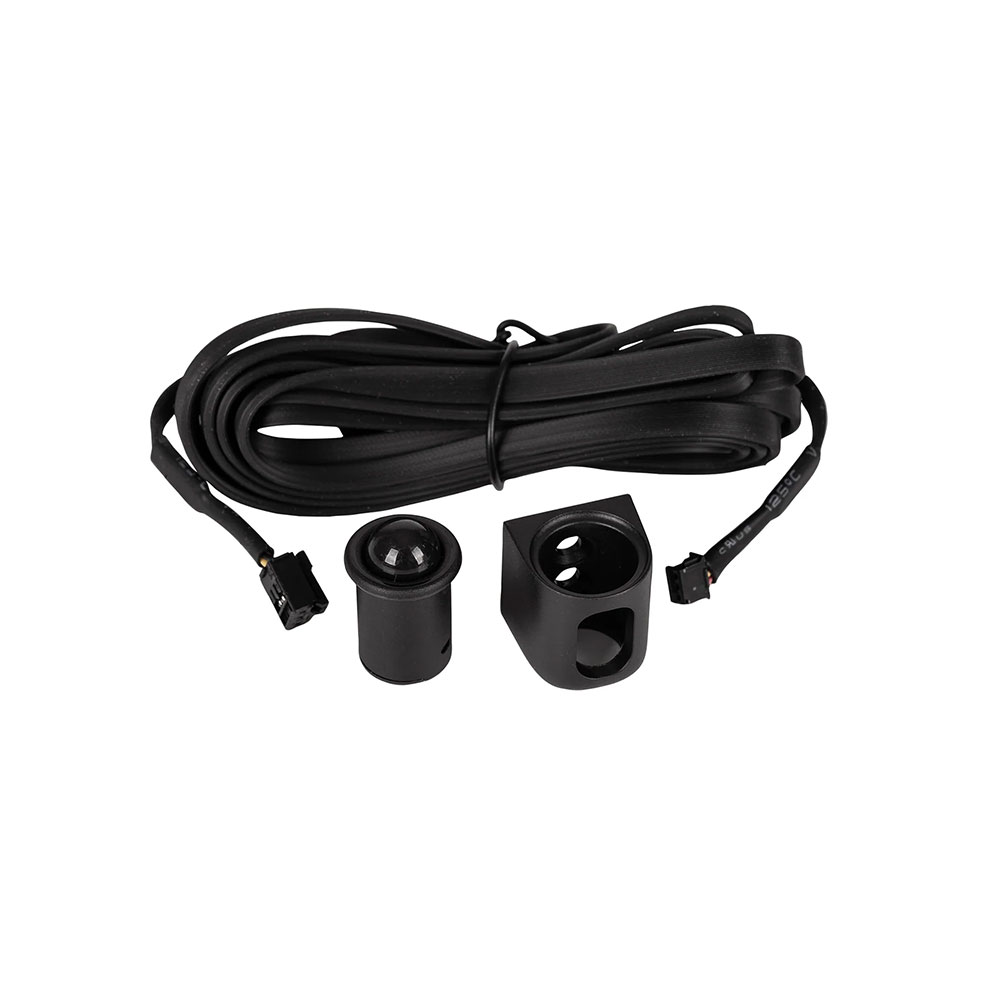

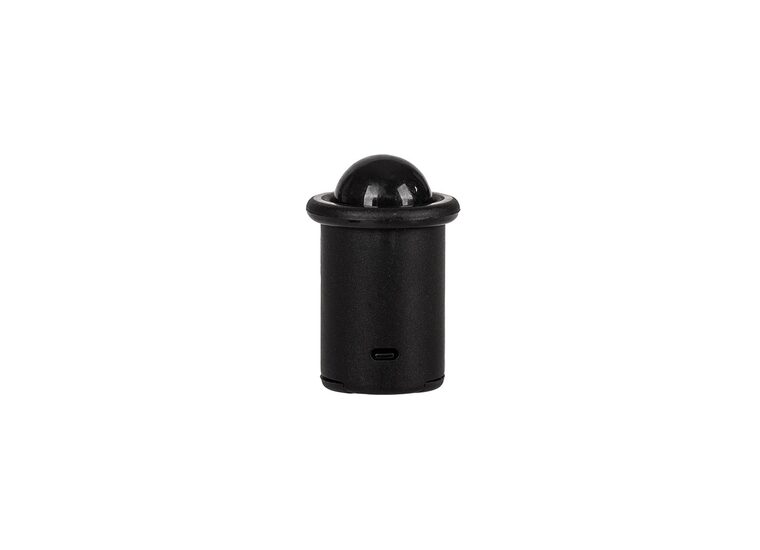

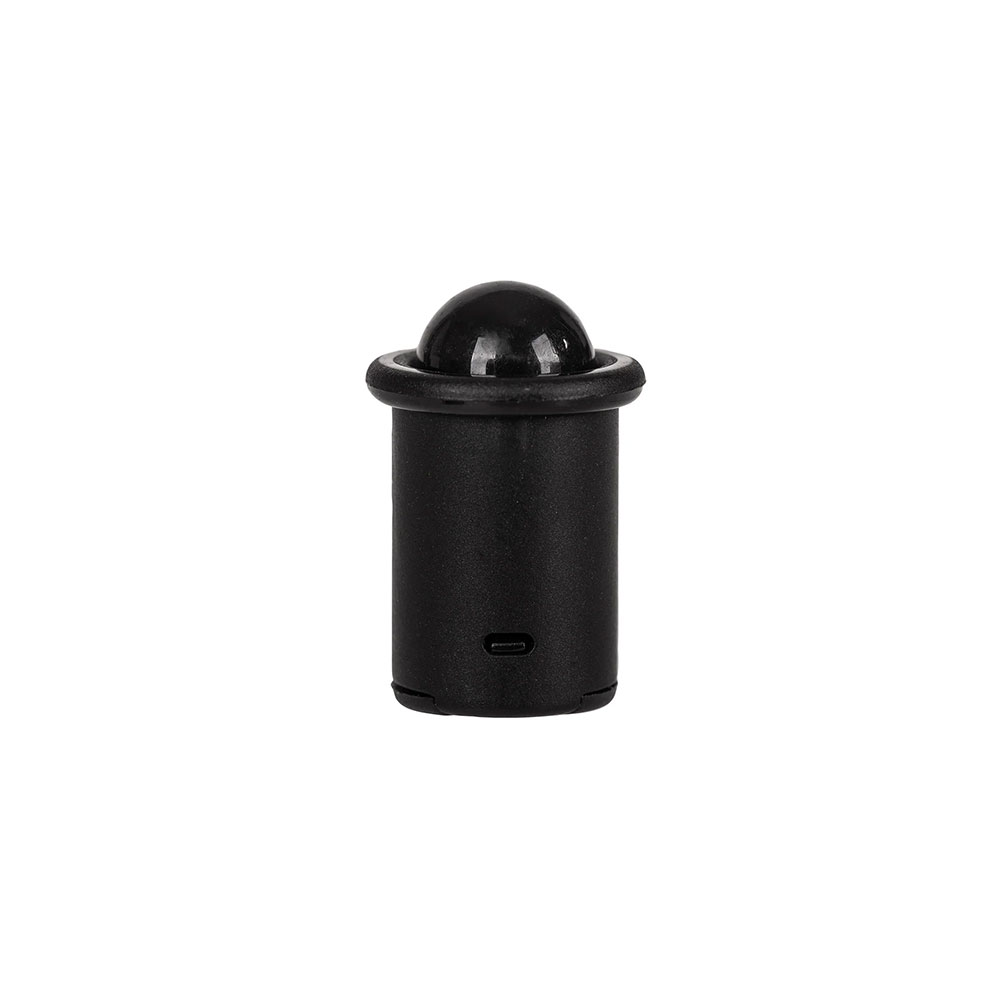

The HV9284 by Havit Lighting is a 12-24V DC black Passive Infrared (PIR) sensor designed for use with LED strip lighting, specifically for applications like cabinets, wardrobes, or under-bench lighting.
It is designed for motion detection to trigger LED strips, featuring a small profile for discreet installation.
Specifications
- Input Voltage: 12V - 24V DC
- Wattage: 36W / 72W
- Dimmable: No
- IP Rating: IP20
- IK Rating: IK04
- Dimming Range: 5 - 100%
- Detection Range: 0.2 - 2.5m @ 120°
- Cable Length: 2000mm
- Fixture Colour: Black
- Material: Plastic
- Warranty: 3 Years Replacement*

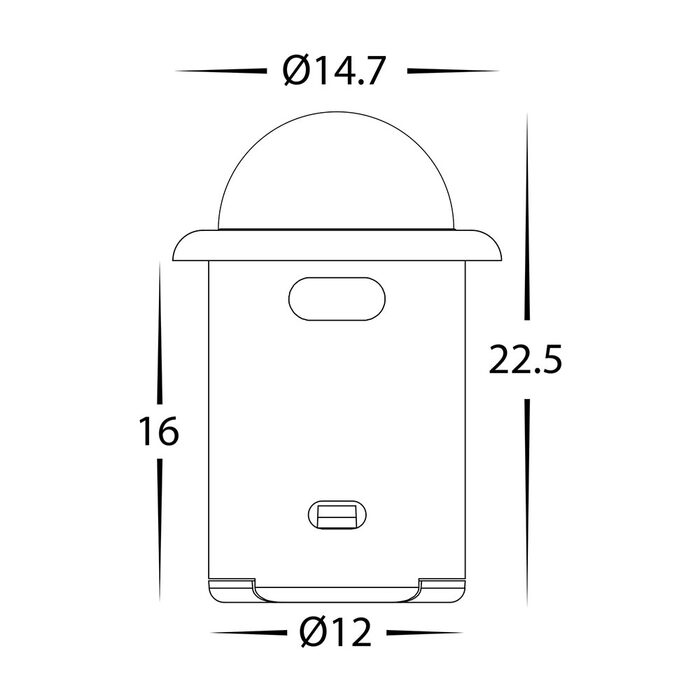

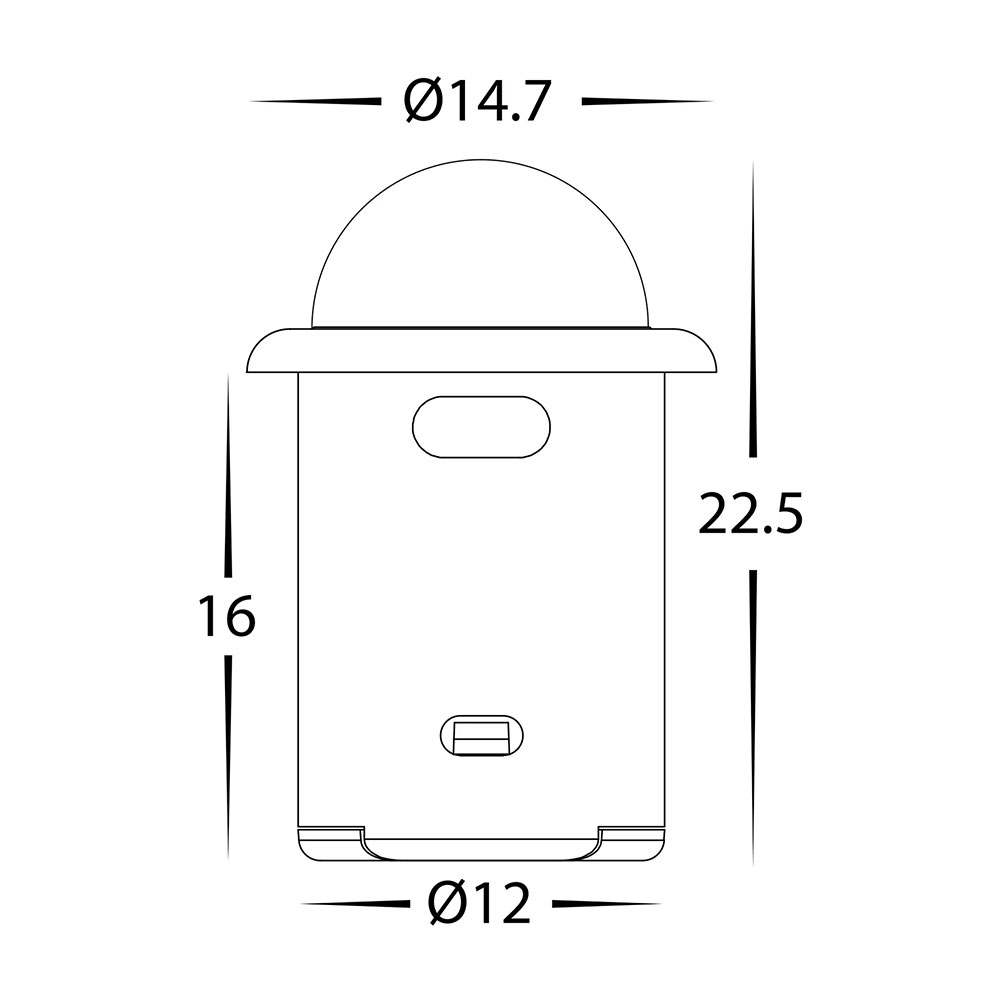

Dimensions
- Diameter: 14.7mm
- Height: 22.5mm
- Cut out: 12mm
Click to view technical specifications:
