Description
The HV9286 is a 12-24v DC Black Dual Door Sensor manufactured by Havit Lighting, designed for use with LED strip lighting.
It is primarily used for automatic lighting control in cabinets, wardrobes, or drawers, allowing for automated on/off functionality when doors are opened or closed.
Specifications
- Input Voltage: 12V - 24V DC
- Wattage: 36W / 72W
- Dimmable: No
- IP Rating: IP20
- IK Rating: IK04
- Dimming Range: 5 - 100%
- Detection Range: 1 - 5 cm
- Cable Length: 2000mm
- Fixture Colour: Black
- Material: Plastic
- Warranty: 3 Years Replacement*

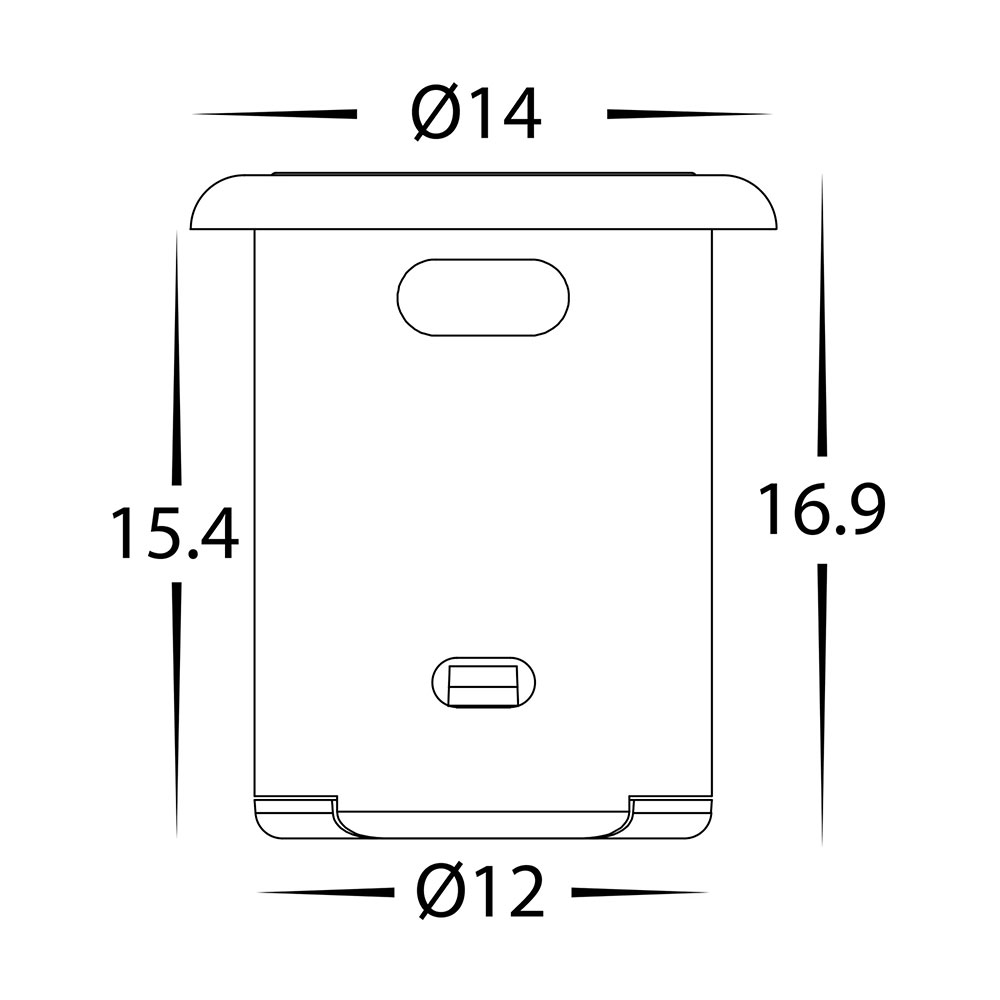

Dimensions
- Diameter: 14mm
- Height: 16.9mm
- Cut out: 12mm
Click to view technical specifications:
