Description

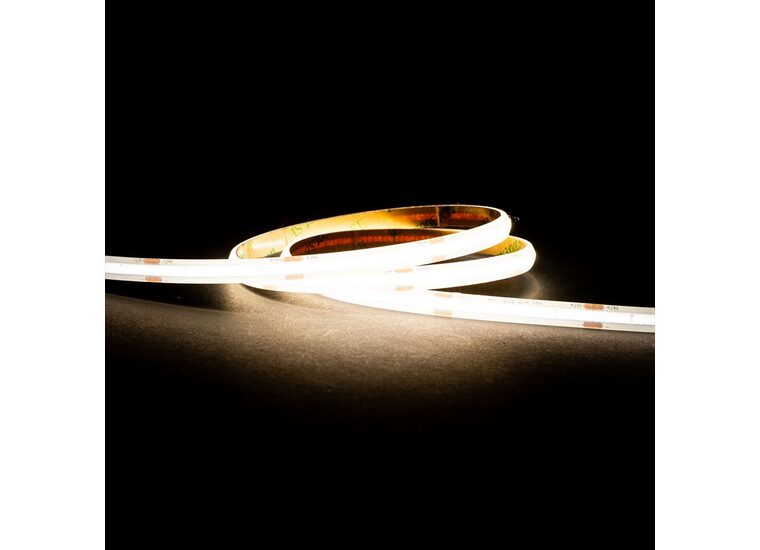

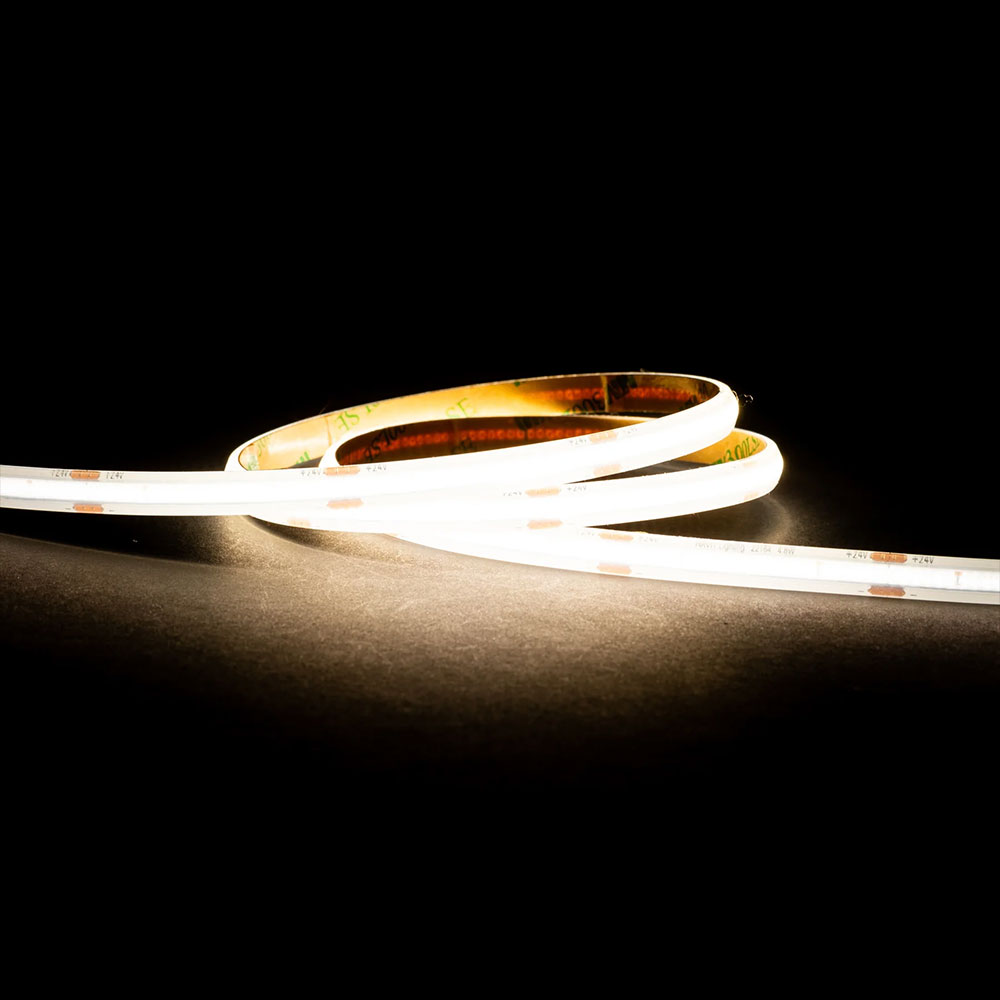

The HV9762-IP54-320-5K-10M is a premium 10 metre roll of CSP (Chip Scale Package) Dotless LED strip, engineered to deliver smooth, seamless illumination with a bright 5500K daylight colour temperature.
Featuring 320 LEDs per metre, this 10W LED strip provides a continuous line of light with no visible LED hotspots, creating a clean and professional lighting effect.
With an IP54 rating, it is protected against dust and splashing water, making it ideal for indoor and covered outdoor applications including kitchens, bathrooms, workshops, retail displays, hospitality venues, and architectural feature lighting.
Operating on 24V DC, the flexible strip includes 3M adhesive backing for quick and secure installation.
Specifications
- Input Voltage: 24V DC power supply required (not included)
- Wattage: 10W
- Colour Temp: 5500K
- Lumens: 1030lm
- IP Rating: IP54
- Beam Angle: 120°
- PCB: 3oz
- CRI: >80
- Lamp Expectancy: >50000hrs
- Wiring: Parallel
- Dimmable: Yes
- LED Chip Type: CSP
- No. of Chips Per Metre: 320
- Maximum Cut Length: 5000mm
- Cutting Increments: 50mm
- Mounting: Aluminium Profile or Heat Sink
- Operating Temperature: 0 - +60° Celsius
- Ambient Temperature: -20° - +50° Celsius
- Warranty: 3 Years Replacement*
Dimensions
- Length: 10000mm
- Width: 8mm
- Height: 3mm
