Description

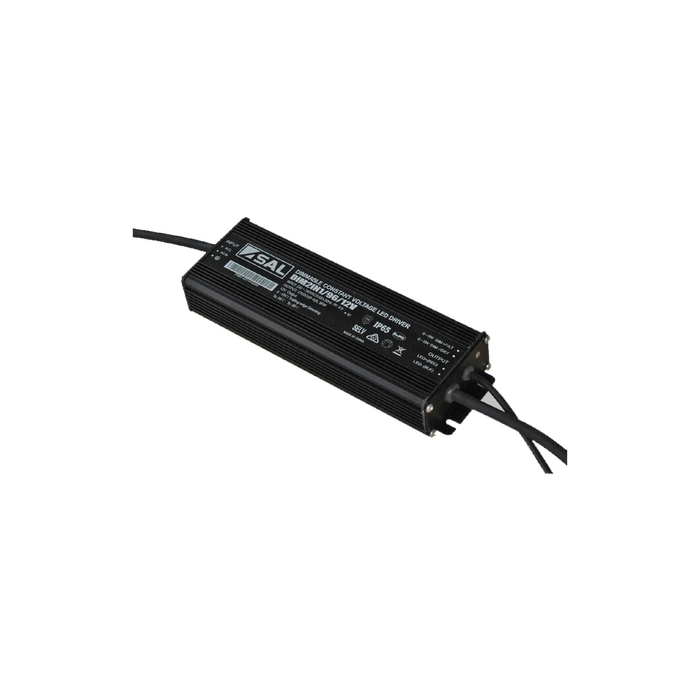

Australian approved IP65 dimmable 12V constant voltage LED driver
Application
- Reliable constant voltage control for use with LED strip and constant voltage circuits
Specifications
- Input Voltage: 240V
- Output Voltage: 12V
- Wattage: 96W
- Trailing edge and 1-10V dimming combined
- Independent compact design, safe no load operation and overload, short circuit protection, overheating protection
- Output 12V or 24V DC
- SELV and EMC compliant, 1.2m flex and plug fitted for easy installation
- Recommended SAL 1-10V controller; SDF30. Recommended SAL trailing edge dimmers; SDD350UM, SDD400U, SDA450U, SDD350BT
- Minimum load: 10W
Dimensions
- Length: 222mm
- Width: 73mm
- Height: 38mm
Click to view technical specification:
Application
- Reliable constant voltage control for use with LED strip and constant voltage circuits
Specifications
- Input Voltage: 240V
- Output Voltage: 12V
- Wattage: 96W
- Trailing edge and 1-10V dimming combined
- Independent compact design, safe no load operation and overload, short circuit protection, overheating protection
- Output 12V or 24V DC
- SELV and EMC compliant, 1.2m flex and plug fitted for easy installation
- Recommended SAL 1-10V controller; SDF30. Recommended SAL trailing edge dimmers; SDD350UM, SDD400U, SDA450U, SDD350BT
- Minimum load: 10W
Dimensions
- Length: 222mm
- Width: 73mm
- Height: 38mm
Click to view technical specification:
