Description

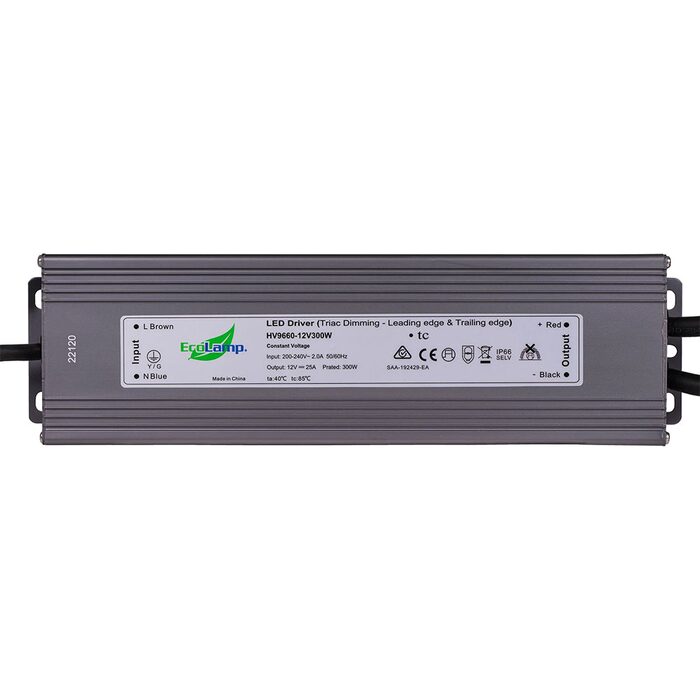

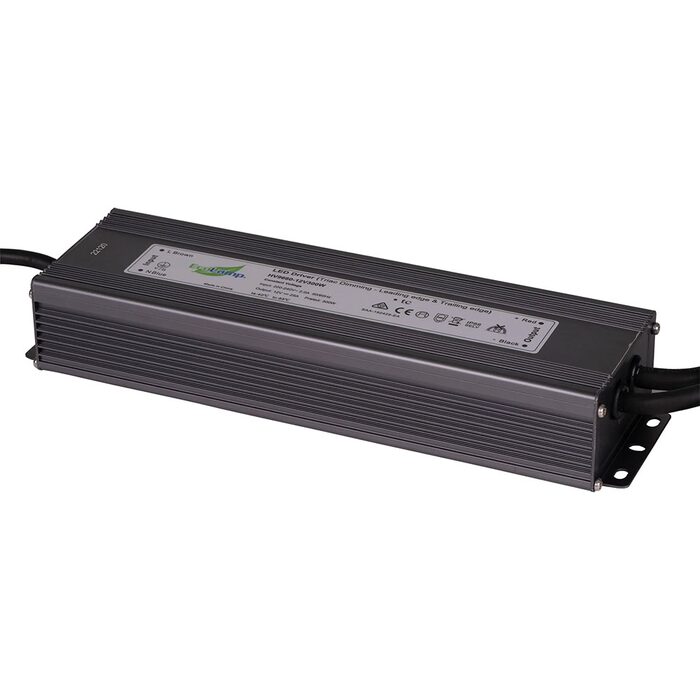

The Havit HV9660-12V300W is a 300W, 12V DC constant-voltage weatherproof LED driver with an IP66 rating, designed for outdoor, Triac-dimmable applications (10%-100%).
It features a 240V AC input, includes a flex and plug for easy installation, and is constructed from durable aluminium.
Recommended maximum load is 240W, and minimum load is 30W.
Specifications
- Input Voltage: 240V
- Output Voltage: 12v DC Constant Voltage
- Output power: 300W
- Recommended Max load: 240w
- Recommended Mini Load: 30w
- IP Rating: IP66
- Wiring: Parallel
- Flex and plug included
- Protection Class: 1 (Earth Required)
- Protection: Short Circuit, Overload, Over Temperature
- Dimmable: Yes (10%-100%)
- Dimmable with either Trailing or Leading Edge Dimmers
- Fixture Colour: Grey
- Material: Aluminium
- Warranty: 3 Years Replacement*

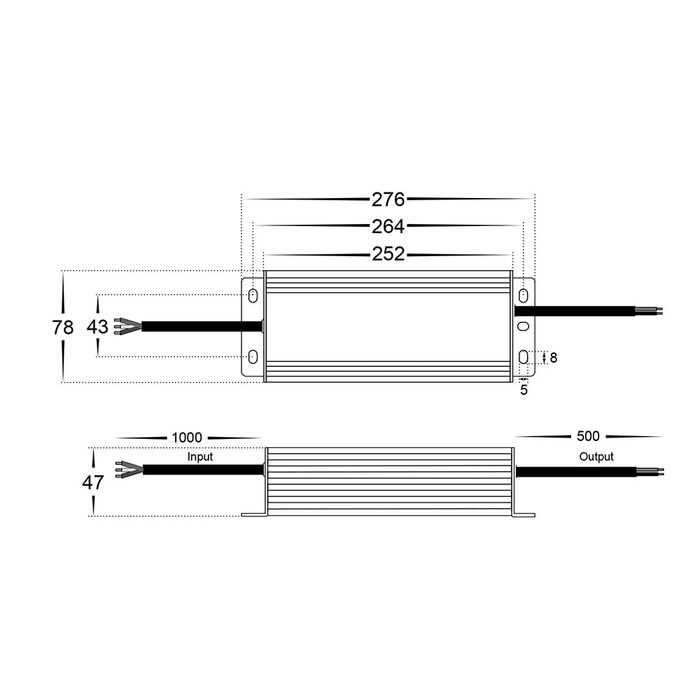

Dimensions
- Height: 47mm
- Width: 78mm
- Length: 276mm
Click to view technical specification:
