Description

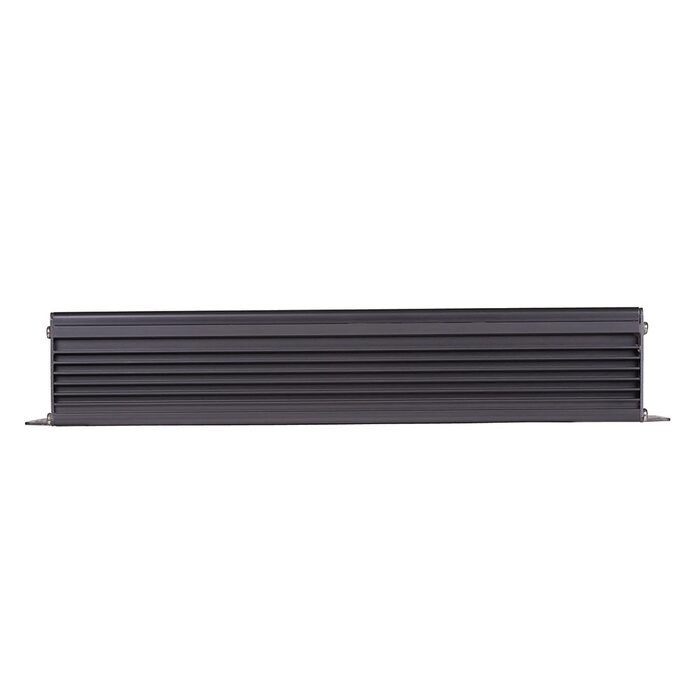

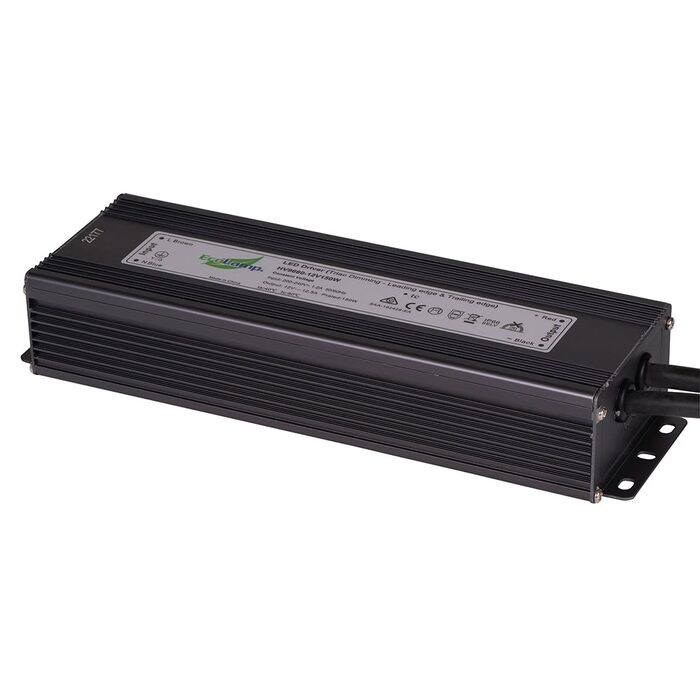

The Havit HV9660-24V150W is a 150W, 24V DC constant voltage weatherproof LED driver, designed for outdoor/indoor use with an IP66 rating.
It features Triac dimming (10%-100%), is compatible with leading/trailing-edge dimmers, has a 240V AC input, and comes with a pre-wired flex and plug.
Ideal for LED strip lighting, it has a recommended maximum load of 120W.
Specifications
- Input Voltage: 240V
- Output Voltage: 24v DC Constant Voltage
- Output power: 150W
- Recommended Max load: 120w
- Recommended Mini Load: 15w
- IP Rating: IP66
- Wiring: Parallel
- Flex and plug included
- Protection Class: 1 (Earth Required)
- Protection: Short Circuit, Overload, Over Temperature
- Dimmable: Yes (10%-100%)
- Dimmable with either Trailing or Leading Edge Dimmers
- Fixture Colour: Grey
- Material: Aluminium
- Warranty: 3 Years Replacement*
Dimensions
- Height: 47mm
- Width: 78mm
- Length: 256mm
Click to view technical specification:
