Description

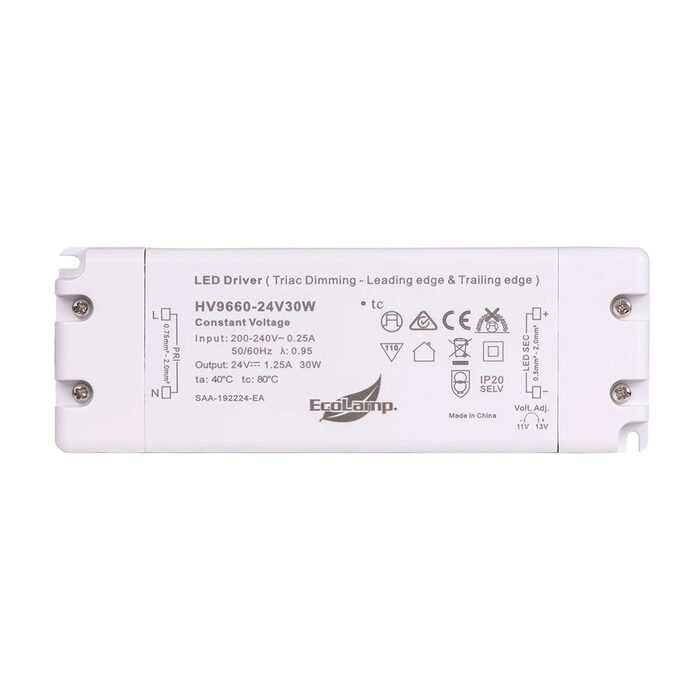

The Havit HV9660-24V30W is a 30W Triac-dimmable indoor LED driver (IP20) that converts 240V AC to 24V DC, featuring a 10%-100% dimming range compatible with trailing- and leading-edge dimmers.
It comes with a pre-installed flex and plug for easy installation, and is suitable for 24V LED strip lighting, with a recommended maximum load of 24W.
Specifications
- Input Voltage: 240V
- Output Voltage: 24v DC Constant Voltage
- Output power: 30W
- Recommended Max load: 24w
- Recommended Mini Load: 3w
- IP Rating: IP20 (Indoor use only)
- Wiring: Parallel
- Flex and plug included
- Protection Class: 1 (Earth Required)
- Protection: Short Circuit, Overload, Over Temperature
- Dimmable: Yes (10%-100%)
- Dimmable with either Trailing or Leading Edge Dimmers
- Fixture Colour: White
- Material: Plastic
- Warranty: 3 Years Replacement*
Dimensions
- Height: 20mm
- Width: 54mm
- Length: 155mm
