Description

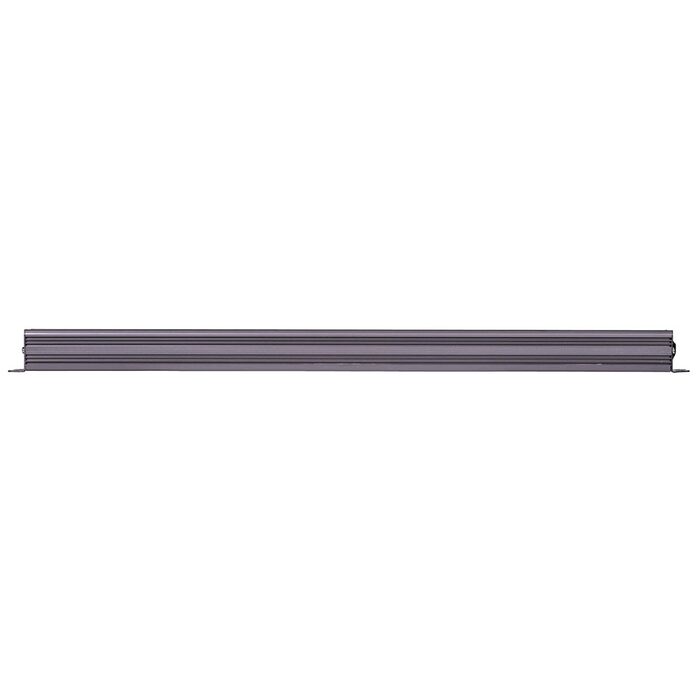

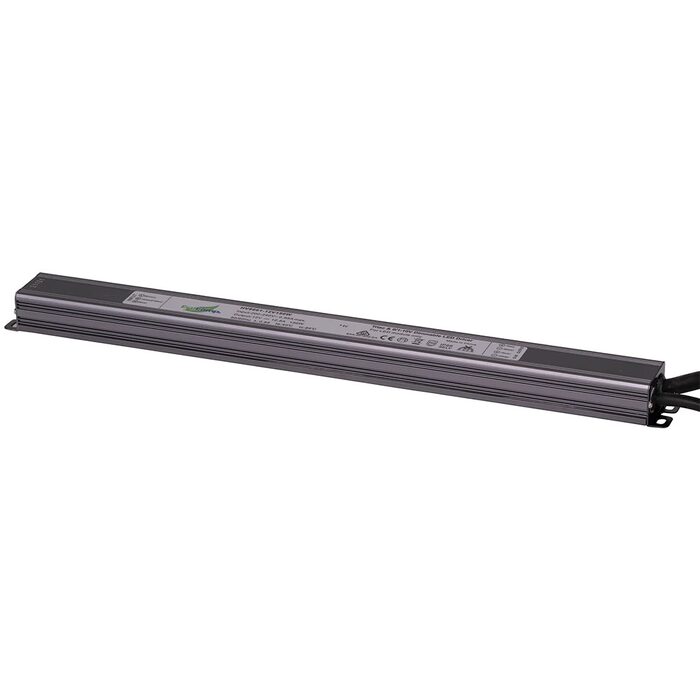

The Havit HV9661-24V150W is a 150W, 24V DC constant voltage dimmable LED driver featuring IP66-rated, weatherproof aluminium construction.
Designed for both indoor and outdoor use, it supports 2-in-1 dimming (TRIAC + 0-1/10V) and includes a flex and plug for easy installation, suitable for high-power LED applications.
Specifications
- Input Voltage: 240V
- Output Voltage: 24v DC Constant Voltage
- Output power: 150W
- Recommended Max load: 120w
- Recommended Mini Load: 15w
- High Power Factor 0.95
- IP Rating: IP66
- Wiring: Parallel
- Flex and plug included
- Protection Class: 1 (Earth Required)
- Protection: Short Circuit, Overload, Over Temperature
- Dimmable: Yes (10%-100%) + 0-1/10v Dimming Options
- Dimmable with either Trailing or Leading Edge Dimmers
- Fixture Colour: Grey
- Material: Aluminium
- Warranty: 3 Years Replacement*
Dimensions
- Height: 23mm
- Width: 32mm
- Length: 368mm
Click to view technical specification:
