Description

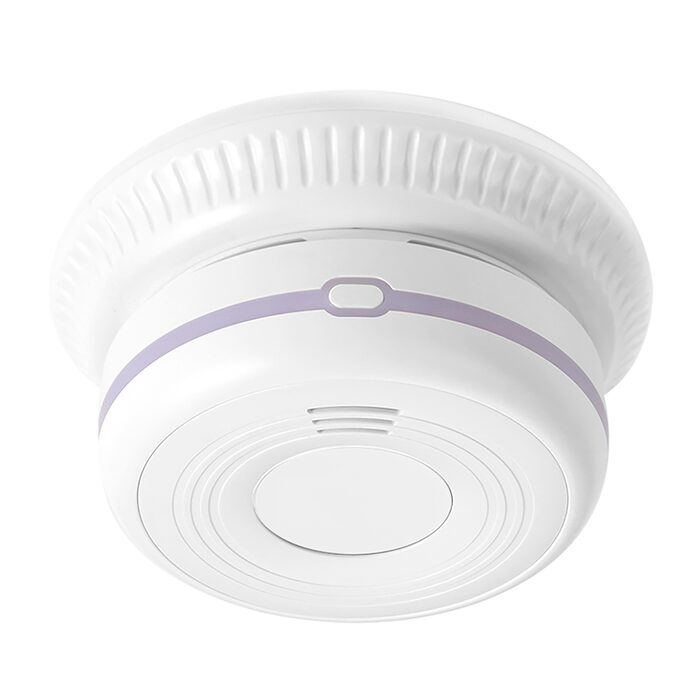

The Brilliant Interconnected Smoke Alarm (22653) is a hard-wired fitting that can connect wirelessly to our range of Battery-Operated Alarms using Radio Frequency.
The interconnectedness allows you to link different alarms, so that if one is triggered, they can all sound (up to 22).
- Wireless interconnectivity, Ceiling mounted smoke alarm
- Powered by 10 year lithium battery (non-replaceable)
- Photoelectric sensing technology
- Fully supervised, secured and monitored via wifi
- ActivFire certified, Activfire AS3786, ISO 8201
Specifications
- Operating Voltage: 220-240V+DC3V back up (Lithium battery)
- Standby Power: < 0.2W
- Power source: 3VDC Sealed Lithium Battery (10-Year)
- Sensor: Photoelectric
- Alarm Sound: >85dB/3M
- Alerts: Alarm: RED LED flashes rapidly three times with three long “beep” every 1.5 seconds.
- Hush Function: Silences alarm for 9 minutes. LED keeps flashing.
- Low Battery Alert: Red LED flashes once every 60 seconds with low “beep” replacing alarm.
- Fault: Yellow LED flashes twice every 60 seconds, with two “beeps” replacing alarm.
- Radio Frequency Info: RF 433MHz wireless connection
- Construction: UV Stabilized fire-retardant ABS / Polycarbonate
- IP Rating: IP20 (indoor use only)
- Operating Temperature: 10 to +50 degrees
- Humidity Range: 0%~95%RH (No condensation)
- Warranty: 10 year (for battery) / 5 year (for components)
- Standards: Activfire AS3786, ISO 8201
Below items available and sold separately
- Smoke Alarm Remote Control (Not included) - 22654/05
- WIFI interconnect smoke alarm - 21927/05
- Rf interconnect carbon monoxide alarm - 21929/05
- Rf interconnect carbon monoxide alarm - 21930/05
Dimensions
- Top Diameter: 139mm
- Bottom Diameter: 114.8mm
- Height: 66mm
Click to view technical specification:
The interconnectedness allows you to link different alarms, so that if one is triggered, they can all sound (up to 22).
- Wireless interconnectivity, Ceiling mounted smoke alarm
- Powered by 10 year lithium battery (non-replaceable)
- Photoelectric sensing technology
- Fully supervised, secured and monitored via wifi
- ActivFire certified, Activfire AS3786, ISO 8201
Specifications
- Operating Voltage: 220-240V+DC3V back up (Lithium battery)
- Standby Power: < 0.2W
- Power source: 3VDC Sealed Lithium Battery (10-Year)
- Sensor: Photoelectric
- Alarm Sound: >85dB/3M
- Alerts: Alarm: RED LED flashes rapidly three times with three long “beep” every 1.5 seconds.
- Hush Function: Silences alarm for 9 minutes. LED keeps flashing.
- Low Battery Alert: Red LED flashes once every 60 seconds with low “beep” replacing alarm.
- Fault: Yellow LED flashes twice every 60 seconds, with two “beeps” replacing alarm.
- Radio Frequency Info: RF 433MHz wireless connection
- Construction: UV Stabilized fire-retardant ABS / Polycarbonate
- IP Rating: IP20 (indoor use only)
- Operating Temperature: 10 to +50 degrees
- Humidity Range: 0%~95%RH (No condensation)
- Warranty: 10 year (for battery) / 5 year (for components)
- Standards: Activfire AS3786, ISO 8201
Below items available and sold separately
- Smoke Alarm Remote Control (Not included) - 22654/05
- WIFI interconnect smoke alarm - 21927/05
- Rf interconnect carbon monoxide alarm - 21929/05
- Rf interconnect carbon monoxide alarm - 21930/05
Dimensions
- Top Diameter: 139mm
- Bottom Diameter: 114.8mm
- Height: 66mm
Click to view technical specification:
